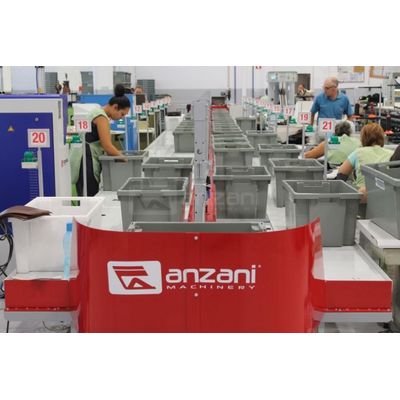

CYCLOMOVE is a production management system for upper factories, which provides for the distribution of boxes, equipped with bar codes, which contain the component kits to assemble the uppers. The system, automatically managed by software, knows which operator and which machine are present in each work station and which article is contained within each box, consequently it knows which operation can be carried out in each work station.

LOGIMOVE Semi-automatic is a production management system for upper factories, which provides for the distribution of boxes, equipped with bar codes, which contain the component kits to assemble the uppers. The system, automatically managed by software, knows which operator and which machine are present in each work station and which article is contained within each box, consequently it knows which operation can be carried out in each work station.

AUTOSTORE is an automatic rotary store for equipment storage, usually lasts, insoles, heels and soles, it is used in both shoe factories and apparel factories. It consists of a sequence of rotary multi-levels columns with 4 or 5 bins each and one programmable control panel with digital display for the automatic search and positioning of the column, with the required items, in front of the loading/unloading point. Thanks to an electronic selector, both load and unload of lasts, insoles, heels, soles and other equipment, can be carried out without moving from the load/unload point.

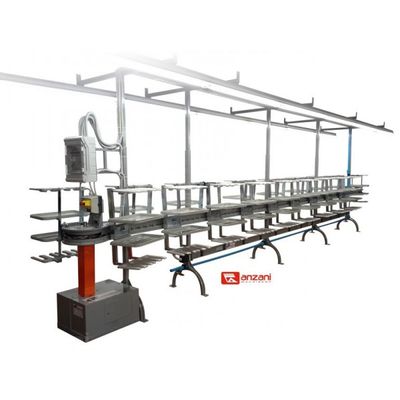

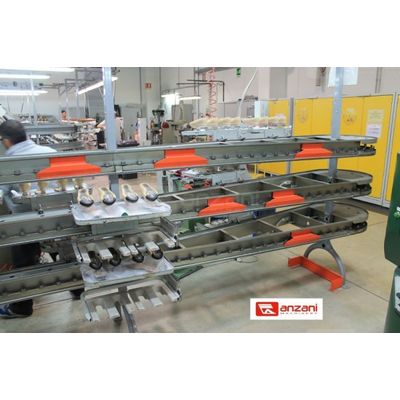

MULTIPLEX is a motorized chain conveyor, for the assembly and finishing of footwear. The trolleys are positioned equidistant from each other (usually filling the entire conveyor). The speed is continuous and adjustable, in order to establish the production rhythms. The conveyor can be configured from 1 to 4 floors, with the possibility of adjusting the speed of each floor independently, equipping each floor with its own motor. The trolleys are completely customizable, based on the type of processing to be carried out. As optional you can add overhead plants for lighting, air, motive power and automatic heat treatments (humidification, heat setting, glue drying, cold stabilization).

MULTIPLEX CONTACT is a motorized chain conveyor, equipped with stop stations for trolleys, suitable for the assembly and finishing of footwear. The trolleys are transported by the chain, but when they meet a stop station, thanks to a release system, they stop, no longer being pulled by the chain. The trolleys that arrive afterwards will stop accumulating, thanks to a chain release system, assembled on the trolley itself.

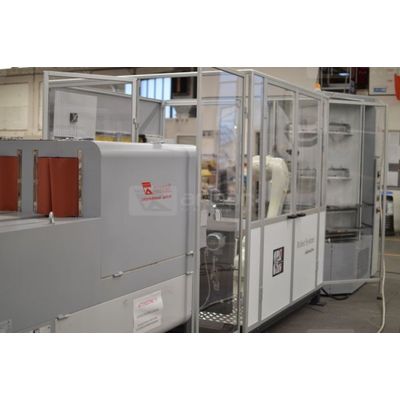

TURBO DRY 8 SHOES is a vacuum glue dryer, which carries out, for shoes, boots and relative soles, the functions of fast drying and fast reactivation of glue,both solvent and water based. The system consists of 8 rotary stations, each stations consists of 5 floors with stainless steel trays, which can hold the components of 2 pairs of soles. In case of water based glue, it is available an additional pre-chamber for pre-ventilation. It is also available a system for heat keeping, that works outside the vacuum chamber, allowing to keep the perfect temperature of the glue, during the attachment of the different parts of the sole.

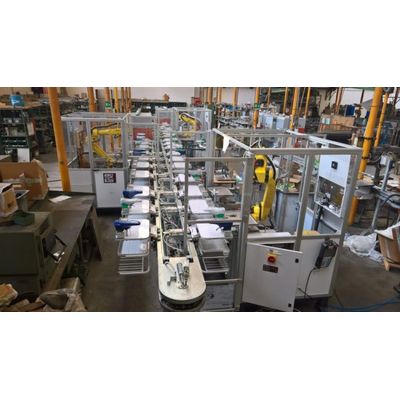

A.T.S. (Advanced Tracking System) is a timed conveyor for all the operations necessary for the production of a shoe, from assembly to finishing. The technological revolution brought by A.T.S. is the possibility to carry out entire operations automatically with the aid of robots. The operations carried out by the robot, directly on the chain conveyor, are pounding, roughing, cementing of shoes and soles. The high productivity is regulated by the operating times of the robots, which also give rhythm to manual operations. This new conveyor replaces pallet conveyors, usually used in robotics, being more flexible, economical and versatile for each operation. This system, moreover, allows all the heat treatments to be carried out automatically: humidification and ironing of the upper, drying / reactivation of the glue and cold ironing.

RPL is a working module, which allows all operations between the heel seat lasting and the sole press to be carried out completely automatically, without the aid of operators. The module can be configured according to the type of shoe to be produced. It can be equipped with a heat setter (Ecojet Robot) which, after the treatment, puts the shoes in the exact picking point by the first robot, which can perform one or more operations (roughing, milling, pounding, cementing) and then give the shoes to a second robot to perform other operations or load a cement dryer/ reactivator (Turbo dry, Robbelt), which can return shoes at the same point of loading or at a different point. The number of robots to be used depends on the required output and on the model that will be produced, then on the necessary processing (roughing, one or more cementing, etc.)
