APAC International Corporation products

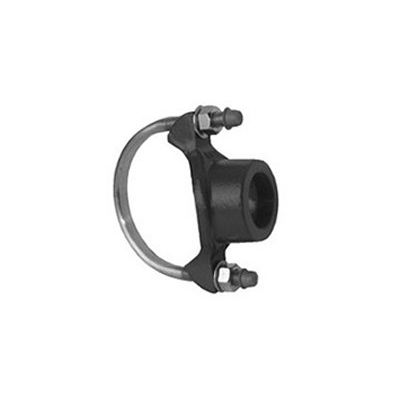

Nominal pipe size 2" through 12" (2.38" - 14.38" O.D.). Outlet 3/4" through 1" IP & CC. For nominal pipe size saddles from 2" through 4" (4.13" O.D.). Outlet 3/4" through 2" IP & CC. For nominal pipe size saddles from 4" (4.50" O.D.) through 12". *121E option: Epoxy Coated with Stainless Steel strap.*

Nominal pipe size 3" through 12" (3.50" - 14.38" O.D.). Outlet 3/4" through 1-1/2" IP & CC. For nominal pipe size saddles 3" & 4" (3.50" to 4.13" O.D.). Outlet 3/4" through 2" IP & CC. For nominal pipe size saddles from 4" (4.20" O.D.) through 12". *122E option: Epoxy Coated with double Stainless Steel straps.*

153, 154, and 156 Saddles are available for nominal pipe sizes 4" throught 12".  Pipe O.D. 4.13" through 14.38". Tap sizes 3/4" through 2" IP & CC

Nominal pipe size 14" through 30" (14.70" - 32.10" O.D.). Tap sizes 3/4" through 2" IP & CC.

Available for nominal pipe sizes 6" (6.63" O.D.) through 30". Outlet NPT. Outlet 3/4" through 3" for nominal pipe size 6". Outlet 3/4" through 6" for nominal pipe sizes 8" through 30".

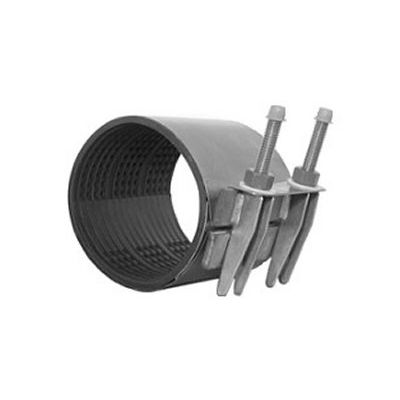

For permanent repairing of damaged pipe. 401 Single Panel Repair Clamp is available for pipe size 2` through 12` and width: 7-1/2`, 10`, 12-1/2`, 15`, 20`, 25` and 30`.

Increased Deflection and Restraint Capabilities. Accommodate a wide range of pipe sizes with fewer gaskets and end rings. Does not require disassembly in most applications.

For permanent repairing of damaged pipe. 401 Single Panel Repair Clamp is available for pipe sizes 2" through 12" with widths: 7-1/2", 10", 12-1/2", 15", 20", 25", and 30".

For permanent repairing of damaged pipe. 401 Single Panel Repair Clamp is available for pipe sizes 2" through 12" with widths: 7-1/2", 10", 12-1/2", 15", 20", 25", and 30".

Available for nominal pipe sizes: 1/2" through 12" (0.63" - 12.75" CTS & IPS). Clamp widths: 3", 6", 9" and 12".
