APC Solutions products

We are a reckoned enterprise offering superior quality Bag Filter System. The system is offered with filter cleaning apparatus, which uses pulsed air for the removal of waste matter that is collected on first surface. During reverse flow, the system loosens the waste inside hopper located on upstream side of Bag Filtration System. This waste undergoes combustion. The reverse pulsing of system is optimized after directing pulses towards the filter. This system starts pulsing with continual thermal exhaust flow without any interruption in the functionally of engine. Further, the product has for utilizing different valves for cleaning more than one filter.

We are a renowned entity offering advanced Electrostatic Precipitators that find great application for removing particles from the exhaust gas stream. The process includes combustion and it emits particles to atmosphere.

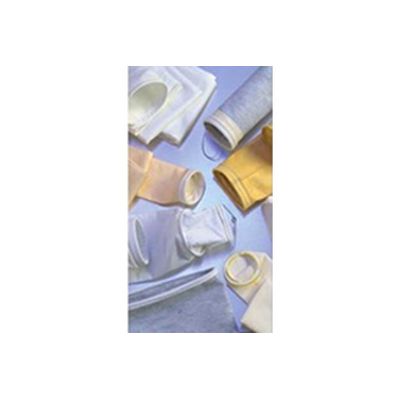

Our firm has won great accolades all over the industry by offering premium grade Dust Collector Bags that are acknowledged for efficient performance. Developed from superior grade materials such as needle felt, monofilament and multi-filament, the bags are highly efficient in minimizing dust emission level. Installed inside dust collecting system with the aid of filter cages, these bags are various types of filter media like Polyester, Polypropylene, Homopolymer, Co-Polymer, PPS(Ryton), Nomex, Fiber Glass, PTFE, P-84. These dust collector bags are demanded for enhancing the performance of bag such as Water & Oil repellent, Antistatic, Water repellent, PTFE Membrane Laminated, Flame retardant, PTFE Coated.

We are the trusted entity offering superior grade Bag Supporting Cages that are developed using quality fabric filter bags with internal support system holding filter bag open throughout particulate collection cycle. The cages of have an immaculate strength pressure exerted during the cycle from filter bag. For the ease of our clients, we offer these in different configurations such as MS, GI, SS304, SS316 & SS316L with 8, 10, 12, 16 & 20 vertical wires with horizontal ring spacing done with 3mm, 4mm and 5mm wire diameter. Developed from quality MS, aluminum, cast aluminum, cast iron, etc., these are highly durable.

Avail from our firm superior grade Cartridge Filter System that is designed using pleated cartridge elements. The system uses Pulse Jet technology for different purposes and gas volumes that range 500 m3/hr to 10000m3/hr. These units are custom designed to meet the site constraints and application requirement. It finds application for toxic dusts and where air is being re-circulated. The cartridge collector is compact in size involving minimal safety risks to workers.

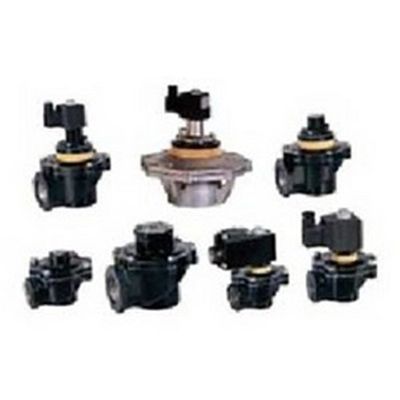

Avail from our firm distinct grade Pulse Solenoid Valves, which use diaphragm valves for passing compressed air from air supply lines into blow piped within bag filter. Actuated with electrically operated pilot solenoids, the product is highly acclaimed in the market. For the convenience of our clients, we avail these valves in ¾” to 2” that is suitable for 24V DC &110V/230V AC.

Avail from our firm distinct grade Reverse Air Bag House that is using in process requiring high gas volume (more than 100000m3/hr). These Bags can be cleaned using counter flow of Gases from opposite direction. It is used for various applications such as Cement Kiln, Large Boilers in Power Plants, and Fumes Extractions in Steel industry etc. The reverse blower dust collector collects dust in the form of hard `dust cake` on the dirty side of the filter bag. For cleaning the dust cake, high-pressure ‘cleaning’ air is blown in ‘reverse’ or opposite direction of the dust laden stream. The cleaning work is made consistently without any interruption in the process and different compartments feature in offline dust collectors. Further, in reverse fan cleaning dust collector, the polluted air enters at bottom and passes through the inside of the bag.

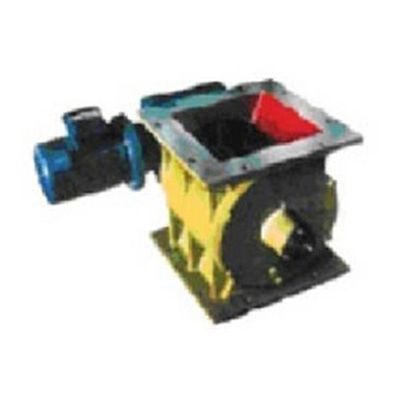

We are reckoned as one of the distinguished manufacturers and suppliers of superior quality Rotary Airlock Valves in different specifications like cast iron, cast steel, heat resistant steel and aluminum. These rotary airlock valves are used for reducing system loses during material transfer between vessels with high volumetric feeder or pressure. Available in varied sizes ranging from 150mm to 1000mm size for meeting the capacity of up to 500NT/rev. Our valued customers can buy these valves from us at market leading prices.
