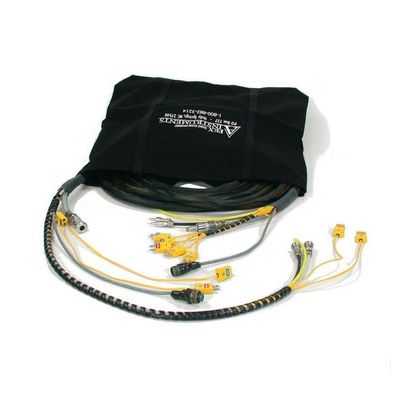

The lightweight, easy-to-repair umbilical cable includes one kink-free sample line, 3 kink-resistant polyethylene lines (2 pitot and 1 Orsat line), 6 type-K thermocouple extensions, and five conductor electrical cable with 4-pin circular connectors. Thermocouple plugs are colored-coded. The sample line has 1/2 inch quick connect and the pitot lines have 1/4 inch quick connects standard (3/8 inch optional). U-bag included.

Split Umbilical Cables are designed for added versatility for use in rigid and flexible configurations. They are constructed with the sample line and exit thermocouple split to the specified length. Split umbilicals are used in flexible systems where the filter compartment is separated from the impinger box with a flexible sample line as in Method 17, Flexible Method 5 and Compact Method 5 configurations. The umbilical lengths are specified according to overall length. Comes with standard stainless steel quick connects.  Cable comes with large portable canvas bag with straps.
