Aplisens S.A. products

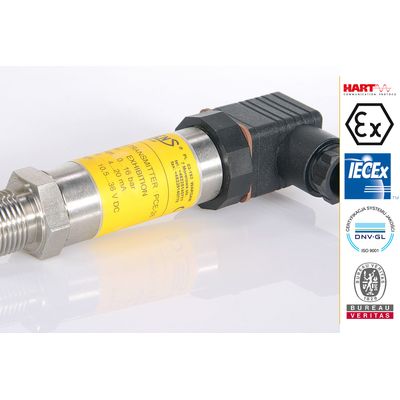

4…20 mA, 0…20 mA or 0…5 mA output signal + HART protocol. Display with backlight. Programmable range, zero shift, characteristic and damping ratio with local panel keys. SIL 2 certificate. Intrinsic safety certificate (ATEX, IECEx). Explosion proof certificate (ATEX, IECEx). Marine certificate – DNV, BV. PED Conformity 2014/68/EU. Accuracy 0,075% (0,05% on request). Gold plated diaphragm (Au). MID (Measuring Instruments Directive) – certificate acc. to 2004/22/WE directive and OIML R140:2007 recommendations.

4…20 mA output signal + HART protocol. Intrinsic safety certificate (ATEX, IECEx). Explosion proof certificate (ATEX, IECEx). Accuracy 0.1%. Marine certificate – DNV, BV.

Any range from 0...25 mbar up to 0...1000 bar. 4 ÷ 20 mA two-wire or 0 ÷ 10 V output. Intrinsic safety certificate (ATEX, IECEx). Explosion proof certificate (ATEX, IECEx). Marine certificate – DNV, BV. Communication protocol Modbus RTU. Gold plated diaphragm. SIL 1 certificate. Version with local display.

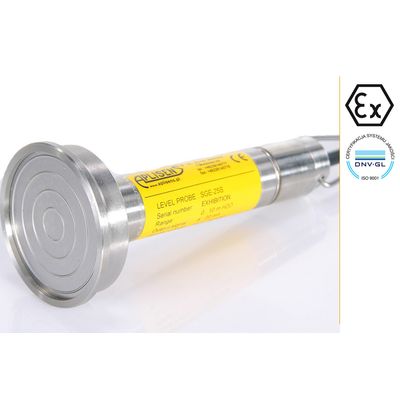

Any measurement range from 1 up to 500 m H2O. Integrated internal overvoltage protection circuit. Marine certificate DNV. ATEX Intrinsic safety.

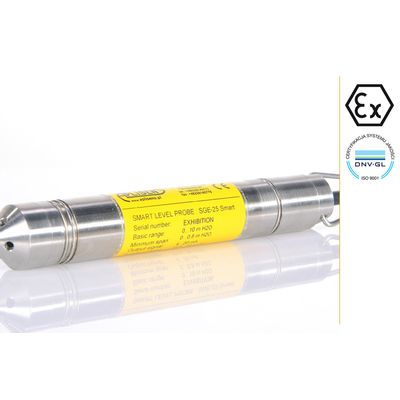

Any measurement range from 2 up to 20 m H2O. Integrated internal overvoltage protection circuit. ATEX Intrinsic safety. Marine certificate DNV.

Output signal 4...20mA. Stainless steel casing and wetted parts. Factory configured.

Output signal 4…20mA with Hart protocol. Galvanic insulation (In, Out). Programmable sensor type. Programmable measuring range. Thermoresistance line compensation. Compensation of thermocouple cold junction. Autodiagnostic system. Intrinsic safety certificate (ATEX, IECEx). Explosion proof certificate (ATEX, IECEx).

Nominal size: DN10...1000 / ANSI 0,5...24“. Maximum static pressure 1,6MPa. Accuracy: 0,5% or 0,2%. Analog outputs: 4...20mA. Communication interface: Modbus RTU / RS 485. Pulse output (uni- or bidirectional) or frequency output.

Nominal pressure PN6÷PN100. Size of flowmeter DN25÷DN800. Material of flow element (orifice, nozzle): stainless steel 1.4301. Material of construction elements: carbon steel, austenic steel, stainless steel. Temperature up to 500°C. Material certification. Calculation acc. To PN-EN ISO 5167, ISO/TR 15377.

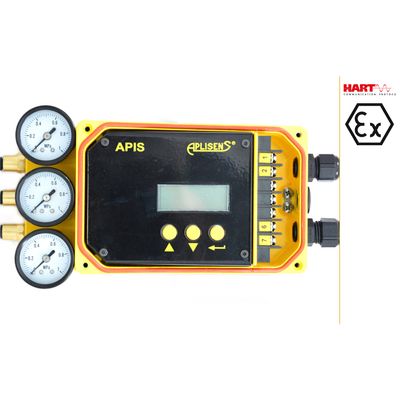

HART protocol. ATEX certificate II 2G Exia IIC T6/T5 Gb. Simple in installation and programming. Possibility of remote assembling of positioner. Low air consumption. Programmable speed of movement of the actuator’s piston rod. Position transmitter. Possibility of manual controlling of position of actuator’s piston rod.
