Apollo Instruments Inc. products

High power and high brightness. Turnkey and stand-alone operation. CW or Pulse operation modes. RS-232 interface. Output via a multimode optical fiber. Single wavelength output 780-1530nm. Microprocessor controlled. External TTL laser enable. Compact, air or water-cooled. Fiber core diameter 0.05-1.0mm.

High power and high brightness. Single wavelength and single fiber output. Fiber core diameter 0.05-1.0mm, NA 0.22. Fiber connector output SMA 905 (typical). Wavelength output 780-1530nm. Flexible for system integration. High coupling efficiency. Power output up to 10KW.

Output Power 1500W-3500W. Connection for Fiber Cable. Fiber termination: SMA, QBH. Cost effective. OEM Laser Diode Module for integration .

CW Power Output (max.) 100W. Wavelength length 1070nm. Spectral Width (FWHM) +/-10nm. Single mode. M^2 ~1.1. Beam Divergence ~0.06 NA. Input voltage 110-220VAC .

CW Power Output (max.) 400W. Wavelength length 1070+/-10nm. M^2 ~1.1. Power tuning range 10-100%. Input voltage .110-220VAC.

Wavelength 790-1550m. Power output 5W-80W (CW). Power output 150-250W (QCW).

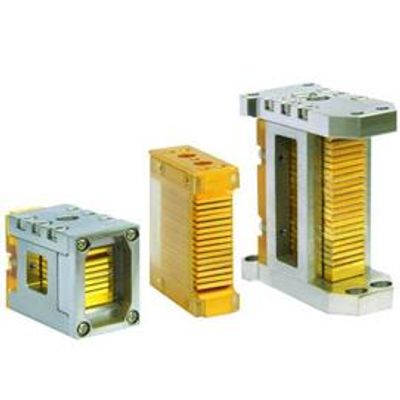

G-Stack series (QCW), VS Series (CW/QCW). Power Output 150-250W(QCW). Power Output 60-120W (CW). Wavelength 808-980nm.

Turnkey and stand-alone operation. CW or Pulse operation functions. RS-232 interface. Microprocessor controlled. External TTL laser enable. Remote control and interlock safety features. Input voltage 110-220VAC, 50-60Hz. Suitable for driving up to 1-20 high power laser diodes. Units with higher compliance voltage available.

Fiber Connector: SMA, QBH. Max NA 0.22. Wavelength 800-1000nm. Transmission large than 95%.
