Appendagefabriek Kolk B.V. products
Tyton Fittings
Kolk - Model (EU) PN10/16 - Flange Socket
Kolk Tyton fittings are made of ductile iron GJS-400/500 (DIN1693 GGG-40/50). Design acc. to EN 545, flange drilling acc. to EN 1092-2 (ISO 7005-2). Epoxy coated (Resicoat®) acc. to EN 14901 (DIN 30677-2) and GSK certified (RAL-GZ 662).
Kolk - Model (F) PN10/16 - Flange-Spigot Tee
Kolk Tyton fittings are made of ductile iron GJS-400/500 (DIN1693 GGG-40/50). Design acc. to EN 545, flange drilling acc. to EN 1092-2 (ISO 7005-2). Epoxy coated (Resicoat®) acc. to EN 14901 (DIN 30677-2) and GSK certified (RAL-GZ 662).
Fittings for PE/PVC
Kolk - Model (E-KS) PN10/16 - Flange Socket Fitting
Kolk fittings for PE/PVC are made of ductile iron GJS-400/500 (DIN1693 GGG-40/50). Design acc. to EN 12842, flange drilling acc. to EN 1092-2 (ISO 7005-2). Epoxy coated (Resicoat®) acc. to EN 14901 (DIN 30677-2) and GSK certified (RAL-GZ 662).
Kolk - Model (E-tv) PN10 - Flange Socket Fitting
Kolk fittings for PE/PVC are made of ductile iron GJS-400/500 (DIN1693 GGG-40/50). Design based upon EN 12842, flange drilling acc. to EN 1092-2 (ISO 7005-2). Epoxy coated (Resicoat®) acc. to EN 14901 (DIN 30677-2) and GSK certified (RAL-GZ 662).
Couplings
Kolk - Model (RN) PN10/16 - Dismantling Joints Not Lockable
Kolk dismantling joints are made of steel, flange drilling acc. to EN 1092-2 (ISO 7005-2). Epoxy coated (Resicoat®) acc. to EN 14901 (DIN 30677-2) and GSK certified (RAL-GZ 662). When ordering specify material quality for tie rods (A2/A4, hot dip or galvanized).
Non Return Valves - Ball Check Valve
Kolk - Model (BKF) PN10/16 - Flanged Ball Check Valve
Kolk ball check valves are made of ductile iron GJS-400/500 (DIN1693 GGG-40/50). Face to face acc. to DIN 3202-F6, flange drilling acc. to EN 1092-2 (ISO 7005-2). Epoxy coated (Resicoat®) acc. to EN 14901 (DIN 30677-2) and GSK certified (RAL-GZ 662). Sinking ball type and upto DN 300 NBR covered iron ball over DN 300 massive PU ball. Floating ball can be delivered upon request.
Non Return Valves - Swing Check Valve
Kolk - Model PN10/16 - Soft Seated Swing Check Valve
Kolk swing check valves are made of ductile iron GJS-400/500 (DIN1693 GGG-40/50). Face to face acc. to DIN-EN 558/48-F6, flange drilling acc. to EN 1092-2 (ISO 7005-2). Epoxy coated (Resicoat®) acc. to EN 14901 (DIN 30677-2) and GSK certified (RAL-GZ 662).
Butterfly Valves

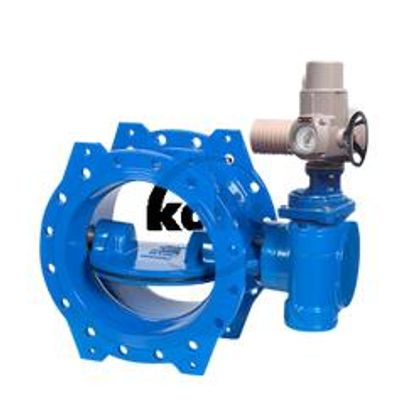

Kolk - Butterfly Valves for Underground Installation
Kolk butterfly valves are made of ductile iron GJS-400/500 (DIN1693 GGG-40/50). Design acc. to EN 1074-2 and Kiwa BRL-K602/03 with flange drilling acc. to EN 1092-2 (ISO 7005-2). Face to face acc. to ISO 5752 / EN 558 basic series 13 (DIN 3202 F16). The butterfly valve is fitted with a gearbox for underground installation. Epoxy coating (Resicoat®) acc. to EN 14901 (DIN 30677-2) and GSK certified (RAL-GZ 662).
Kolk - Model EKK-ISO - Butterfly Valves with ISO Topflange
Kolk butterfly valves are made of ductile iron GJS-400/500 (DIN1693 GGG-40/50). Design acc. to EN 1074-2 and Kiwa BRL-K602/03 with flange drilling acc. to EN 1092-2 (ISO 7005-2). Face to face acc. to ISO 5752 / EN 558 basic series 13 (DIN 3202 F16). The butterfly valve is fitted with a gearbox with ISO top flange. Epoxy coating (Resicoat®) acc. to EN 14901 (DIN 30677-2) and GSK certified (RAL-GZ 662).
Flange Gasket Kits
Kolk - Model (PS-G/G) A2/A4 PN10/16 - Ductile Iron Flange Gasket Kits
Kolk stainless steel gasket kits are suitable for flanged connections in (drinking)water and gas pipelines. Kolk gasket sets consist of bolts (A2), nuts (A4 coated), washers (A2) and a gasket; EPDM / NBR-DUO rubber with steel core (DVGW, W270, KTW and Belgaqua certified). Temperature range -25 ° / + 70 ° C.
