Applications Engineering Ltd products

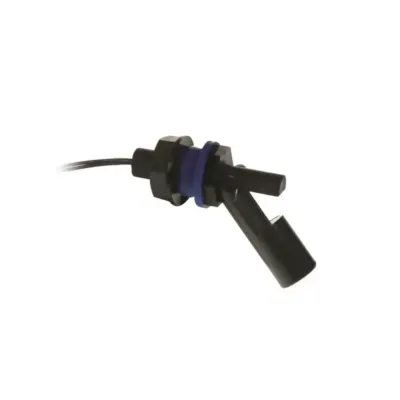

The RF-OH11 is a polypropylene level switch designed for horizontal mounting, providing adaptable functionality for low or high-level signaling. This capability is achieved through its reversibility, allowing the switch to be configured as normally open or normally closed according to specific application needs. The internal mechanism utilizes a magnetic float system; the float's permanent magnet activates a reed switch situated within a fixed stem to close the electrical circuit. This interaction occurs when the float aligns the magnet with the reed switch. The device comes standard with 300mm leads, though customization options are available for different lead or cable lengths to meet diverse installation requirements, subject to minimum order quantities. Such versatility ensures compatibility with a range of liquid level monitoring applications, making it a valuable component in precise fluid control systems.

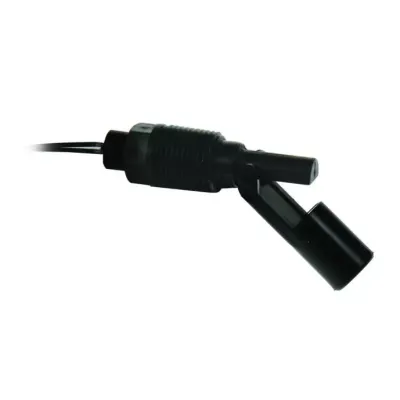

The RF-OH31 Plastic Level Switch is designed for horizontal mounting to provide either high or low-level signals. Its reversible nature allows it to be configured as normally open or closed, accommodating diverse application requirements. The switch features a default 300mm lead, though customization for different lead or cable lengths is possible, subject to minimum order quantities. The operation is based on a magnetic principle, where the switch's reed contacts close the electrical circuit when a magnetic float approaches, and open it when the float moves away, ensuring reliable circuit control. This design allows the RF-OH31 to be utilized effectively in fluid level monitoring applications where precise and adaptable level detection is crucial. The switch is an integral part of systems in various industrial processes requiring accurate level differentiation and control.

The Gems Sensors & Controls PS61 Subminiature Pressure Switch is an engineered solution tailored for original equipment manufacturer (OEM) applications. This pressure switch is notable for its enhanced ingress protection, with ratings of IPX7, IPX9K, and IP6KX, ensuring resilience against water and dust ingress. It can withstand temperatures up to 250°F (121°C), making it suitable for challenging environments. Designed with high proof pressure capabilities, the PS61 is ideal for demanding hydraulic applications such as forklifts, scissor lifts, and off-road equipment. Its compact design allows integration into systems where space is at a premium, while its durable construction provides reliable performance in rigorous conditions. This switch is part of a broader range of products that offer adjustable settings and enhanced functionality for complex industrial systems.

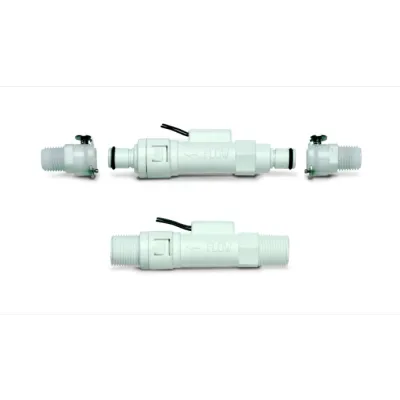

The FS-380P Series Flow Switch is a robust inline device designed to meet the demanding requirements of various industrial applications. Operating on the reliable principle of magnetic field sensing, this switch ensures non-clogging performance comparable to that of its metal counterpart, the FS-380. With a fixed set point and straightforward design, the FS-380P provides dependable flow detection, making it particularly suitable for fluid monitoring in HVAC, semiconductor, welding, and medical fields. Its operational mechanism involves a reed switch activated by a permanent magnet's proximity, offering precise control over electrical circuit closure. Supporting up to 16 Bar pressure, the FS-380P is LPCB approved, indicating its effectiveness and reliability for critical applications requiring consistent flow detection and operation.
