Aqua Fitting products

Resilient seated gate valves are suitable for drinking water and waste water ,which can be installed under or above ground. PN16 operating pressure.

Resilient seated gate valves are suitable for drinking water and waste water ,which can be installed under or above ground. PN16 operating pressure.

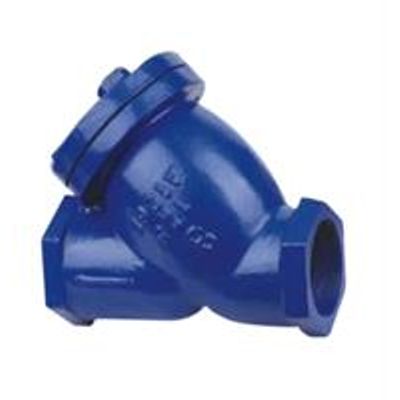

Design:EN1074. Type :Y type,Thread end. Class : Class 125 ,PN6-PN10-PN16. Face to face : According to buyer’s requirement.. Flange : ANSI /AWWA B 1 20.1 ,BS21,DIN2999,ISO 7/1. Testing : EN12266. Size :1 1/2”-2”(DN15-DN50).

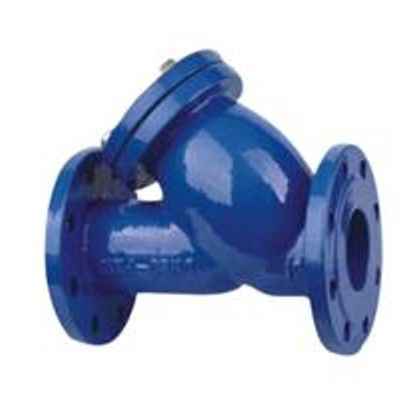

Design:EN1074. Type :Y type,Flange end, heavy duty. Class : Class 125 ,Class 150,PN6-PN10-PN16. Face to face : EN558-1 Series 1. Flange : ANSI B 16.1 Class 125 ,Class 150,EN1092-2. Testing : EN12266. Size :1 1/2”-24”(DN15-DN600).

Design:EN1074-4. Type :Flange end, with inner isolation valve. Class : Class 125 ,Class 150,PN6-PN10-PN16-PN25. Flange : ANSI B16.1 Class 125,Class 150,EN1092-2. Testing : EN12266. Size :DN50-DN300.

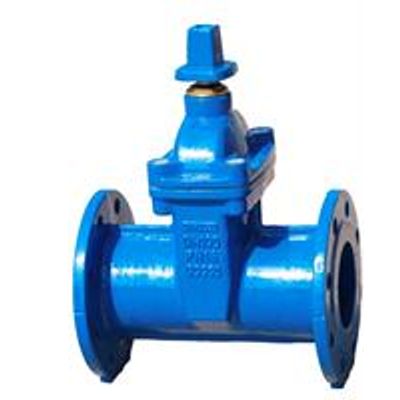

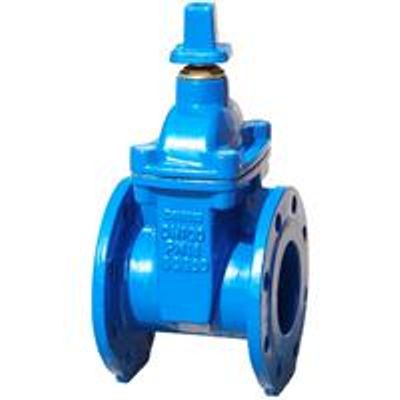

Design conforms to DIN3352 .Face to face dimension conforms to DIN3202 F5 (EN558-1 series 15/ISO5752 series 15).Flange Driling Conforms to DIN 2533 ,EN1092-2.Valves test to DIN3230 /ISO5208.Full bore ensured. Resilient seated gate valve.Body and bonnt of Ductile Iron.Wedge of ductile iron,fully encapsulated with EPDM(NBR)rubber.Bonnet gasket in groove between body the bonnet .Countersunk bonnet bolts encircled by the bonnet gasket and sealed with hot melt Epoxy coating to AWWA C550-internally and externally.

Resilient seated gate valves are suitable for drinking water and waste water ,which can be installed under or above ground. The perfect choice for pipelines.

Manufactured to AWWA C219 under quality management systems accredited to ISO 9001:2000, the AQUAFITTING dismantling joint assembly is a double flanged composite fitting featuring a telescopic action between a flanged spigot and a flange adaptor. The joint is designed to provide longitudinal adjustment in flanged pipe systems. Dismantling joints provide a simple method for the installation and removal of flanged valves, pumps, flow meters, flanged pipes and pipe fittings. Tie rods are provided for final anchoring and location and these also double as mating flange jointing bolts, reducing the number of these required.

AQUAFITTING RANGER products, in the form of wide range couplings and flange adaptors,are designed to join pipes of various outside diameters with the same or different nominal bore. Because of the wide range tolerance on O.D. (Up to23mm) a single AQUAFITTING RANGER coupling can connect steel, ductile iron, UPVC, cast iron, asbestos cement and other rigid pipe materials. The ability of AQUAFITTING RANGER couplings to join dissimilar pipe materials is a bonus feature in both repair or permanent situations. Corrosion protection for AQUAFITTING RANGER products is avail- able in Fusion Bonded Epoxy, Red Oxide Primer and Galvanised finish as standard. Optional coatings to customer specifications are available on request.

Aqua Flex is a comprehensive ranges of stainless steel repair and tapping products,,design to serve the needs of today"s water & gas industry.Avaliable in varous clamp lengths and suitable for virtually any pipe material.Aqua Flex products are available with either EPDM or NVR ,with a maximum operating temperature of 40 °C.
