Aqua-Hort products
Aqua-Hort - Tank
20- 200 m3/hour, 750 gpm 300 or 400 amp Standing tank, circular 400 mm PE pipe. Reinforced with steel plates and girds. Dimension 1,2 m high, 0,5 m wide and 0,5 m deep. 8 electrode plates 0,25 x 1,0 m. 55 to 216 kg Copper. Electro magnetic treatment pipe. Flow Meter (Bürkert). Weight 200-400 Kgs
Aqua-Hort - Pump
The Aqua-Hort 75 Midi model is for the small nursery where the pump flow is not exceeding 10-12 m3 per hour 40-50 gpm.

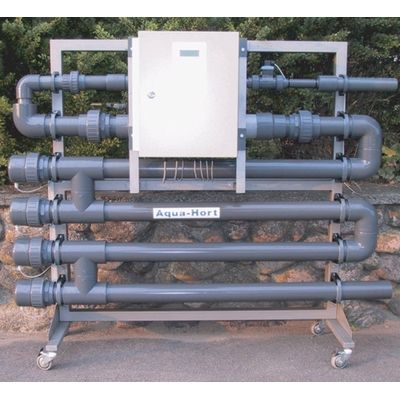

Aqua-Hort - Pumps
45 m3/hour, 170 gpm, 50 or 100 amp; Dimension: 2,2 m long, 1,7 m high and 0,6 m deep. Control Box 40 x 50 x 20 cm. Pipes 110 mm mounted on alu frame. Mobile on 4 transport wheels. 4 Electrodes 20 mm, 2,0 m long. 44 Kgs Cu.Alu frame 139 x 109 cm. Electro magnetic treatment pipe. Flow Meter (Bürkert) DN50. Weight 111 Kgs.
Aqua-Hort - Pumps
80 m3/hour, 300 gpm 100 or 200 amp; Dimension: 2,7 m long, 2,0 m high and 0,6 m deep. Pipes 125 mm mounted on alu frame. Mobile on 4 transport wheels. 8 Electrodes 20 mm, 2,0 m long. 88 Kgs Cu. Alu frame 139 x 120 cm. Electro magnetic treatment pipe. Flow Meter (Bürkert) DN110 Weight 162 Kgs
Aqua-Hort - Pumps
200 m3/hour, 750 gpm 300 or 400 amp 48 Volt; Dimension 2,5 m long, 2,0 m high and 0,7 m wide. 4 pipes 200 mm mounted on alu frame. Mobile on 4 transport wheels. 16 Electrodes 20 mm, 2,0 m long. 180 Kgs Cu. Electro magnetic treatment pipe.Flow Meter (Bürkert). Weight : 370 Kgs.
Aqua - Float Model
200 m3/hour, 750 gpm, 300 or 400 amp. Dimension 3,0 m long, 1,0 m high and 1,6 m wide.. Float placed in reservoir/tank. 315 mm float pipes, alu frame.. 8 Electrode plates 0,5 x 2,0 meter, 220 to 600 kg Copper.. Electro magnetic treatment pipe.. Flow Meter (Bürkert).. Weight 400-1000 Kgs.
Aqua - Water Manager
Calcium carbonate scale is converted to fine slurry, which is bleed off. Bacteria levels are kept at low levels reducing the risk of Legionella. No corrosion by keeping the calcium in the cooling water. No use of chemicals in the condenser, leading to lower costs. Equipment efficiency increased due to reduction of scale. Lower energy costs due to the increased efficiency of the equipment. Intensive monitoring of the condenser running by PC programme. No handling of agressive chemicals.
