The Little Wonder Modular Series Watermaker is a compact reverse osmosis desalination system specifically designed for sailing enthusiasts who require efficient freshwater production in restricted spaces with limited power availability. This system operates on a straightforward installation and maintenance protocol, ensuring ease of use and reliability during prolonged maritime journeys. It can produce between 550 and 681 liters per day, making it ideal for cruising sailboats. Advanced features include an adjustable 316 stainless steel pressure regulating valve for maintaining stable pressure levels and a high-pressure bypass valve for easy operation mode control. The system boasts a high saltwater rejection rate and includes a product sample valve for quality assurance. Additionally, it comes with optional remote instrumentation and a clean-in-place system for convenient routine maintenance. The titanium high-pressure pump is optimized for the marine environment, offering maximum efficiency with minimal power consumption, backed by a long-life 12V permanent magnet motor.

The Parker PRO Mini Seawater Desalination System is designed to efficiently convert seawater into potable water, with a daily production capacity ranging from 600 to 2,800 liters. This compact reverse osmosis system utilizes advanced filtration technology to remove impurities and salt from seawater, ensuring a consistent supply of fresh water for marine applications. Its modular design accommodates ease of installation and maintenance, and it is suitable for use on small boats or vessels where space is a constraint. The PRO Mini incorporates durable components meant to withstand challenging marine environments, thereby ensuring a long service life with minimal operational disruptions. By providing a sustainable source of freshwater, this system supports maritime operations and enhances onboard living conditions.

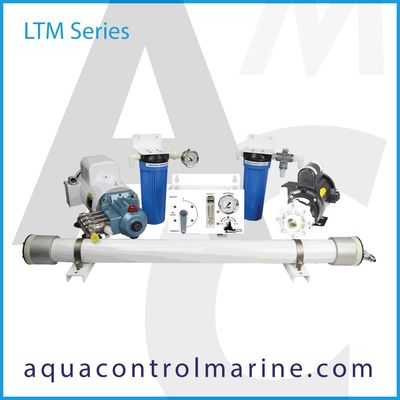

The Village Marine LTM Series Watermaker is a versatile, compact, and semi-modular desalinator that is suited for powerboats, sailboats, and small-to-mid-sized commercial vessels. With a production capacity ranging from 145 to 1,800 gallons per day, it offers significant flexibility in installation as it can be mounted above or below the waterline. This series features an electrical control panel with Nema 4X enclosure, digital monitors, and a variety of meters including flowmeters and digital water quality monitors. It showcases a robust design with a stainless steel high-pressure pump and a magnetic drive low-pressure pump. The LTM Series uses a 316 stainless steel pressure regulator and comes equipped with adjustable pressure regulation and sediment prefiltration capabilities. Models in the 400-600 GPD range offer membrane configuration options for enhanced adaptability. Safety features include an automatic diversion valve to manage water quality fluctuations.

The Board Controller 5x7 V1.05, part number 90012013, is a specific component designed for use within the Aqua Matic 450-1800 desalination system. As an integral part of this water treatment application, it serves a critical role in managing the functionality and performance of the system. This particular model is associated with an obsolete part number, 90012013-M, indicating it may be a replacement or update to a previous version. The controller is essential for ensuring the precision and efficiency of the Aqua Matic system, which is known for its use in sea water desalination. Users of this system can refer to detailed schematics and exploded views available for technical clarity, facilitating maintenance and repairs. This device is marketed primarily towards mariners and offshore operators who depend on reliable and effective seawater desalination technology.

HMI DISPLAY 4.3″ PROGRAMMED. Part No. 90012016.
