Aquam Pipe Diagnostics
3 products found
Aquam Pipe Diagnostics products
Asset Management And Leak Detection Tool

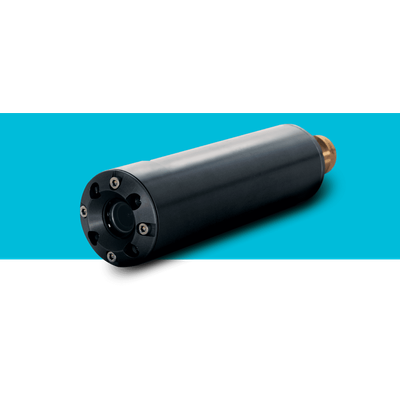

The Investigator™ is a pressurized pipe inspection and leak detection system and is designed for 3' diameter pipework and above. Access through fire hydrants*, 1.5' and above pressure fittings, air valves, gate valves and Quadrina's at full mains pressure. The system is mounted onto pipework through a selection of fittings and/or 'hot tappings.' This process makes access into the pipework simple and cost effective. Monitoring the real-time data captured by the camera and hydrophone sensor head allows the operator to understand internal pipework conditions and identify leaks. A 300ft (100m) cable is supplied with the system which potentially offers a maximum inspection distance of 600ft (200m) upstream and downstream of the insertion point. This is influenced by pipe diameter, internal condition and the configuration of the pipe. The software is specific for the Investigator™ technology and is used to control the sensor head and view both video and acoustic results from live surveys. The software displays video in a resizable window and also acoustic results in order of amplitude and frequency. The software also operates the sonde which is built into the camera sensor head. The system is compatible with LiveFeed software for maximum performance. The Investigator is available in two variants, the Pro and E.

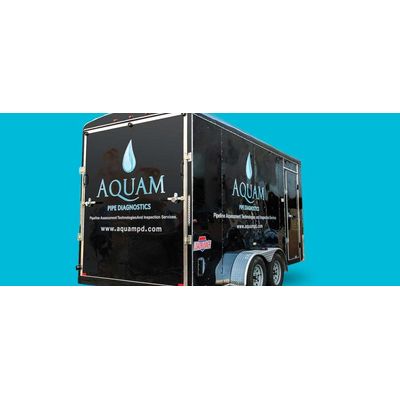

Long Distance Trunk
The LDS1000™ (Large Diameter System) is a long distance transmission main CCTV inspection and leak detection platform, designed for internal investigation and leak detection on pressurized pipelines. The system utilizes a light tri-sensor head incorporating a high resolution digital camera, hydrophone and an internal sonde combined as a powerful platform for condition assessment, leak detection, mapping and locating. The device is designed to be inserted through existing access points or “hot taps” with an internal diameter of 2' or greater and uses the flow within the pipe as the driver. Parachute sizes (drogues) are selected based upon flow rates. Drogues sit behind the tri-sensor camera head to ensure maximum visibility throughout surveys. The LDS1000™ is capable of insertion into pressurized pipework up to 150psi and is reliably launched within 12' diameter pipelines and above with a flow rate as low as 1ft/s(0.3m/s). The LDS1000™ comes complete as a full package with training and all items required to implement the technology into any business. This technology will not be matched on reliability and performance and has been proven around the World. The system is compatible with LiveFeed software for maximum data collection performance.
