Aquanet Power products

The `aquaWAVE™` device is a single oscillating water column designed for shallow water application, which can also provide a cost effective coastal protection solution. aquaWAVE™ is ideal for deployment in coastal locations, in approximately 10-15m of water depth. It is made of prefabricated reinforced concrete and can easily be integrated into existing or new breakwater walls. It sits under its own weight on the seafloor without the need for seabed preparation, mooring or anchoring systems.

The blueWAVE™ device is a cluster of oscillating water columns designed for deep water application and large utility scale power generation. The blueWAVE™ structure comprises a cluster of floating OWCs joined by a space-frame.  It is an anchored floating steel device, located in approximately 40-80m of water. By clustering OWCs there is a reduction in electrical infrastructure required, which reduces cost and increases efficiency. The top of each row extends above sea level, where a single airWAVE™ turbine and the electrical control systems are housed.

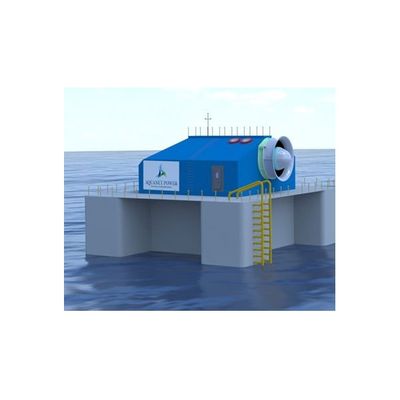

`ogWAVE™` is a single oscillating water column designed to provide power to offshore platforms. ogWAVE™ is a unique variant of our devices which utilises Aquanet’s vast experience in wave energy. The unit is able to operate in connection with any offshore platforms, including oil & gas, as well as installations in more remote areas. There are no moving parts under water, with the top of the device housing the airWAVE turbine and electrical control systems.
