Aquatrak products

Features top-mounted waterproof impulse connectors; combines 4110 microprocessor Controller and 3000 Transducer with firmware into a single package, with a 4 foot calibration tube.

Features top-mounted water-tight Switchcraft connectors; combines 4110 microprocessor Controller and 3000 Transducer with Version 5.XX firmware, with a 4 foot calibration tube. Includes 10-foot W-108-01 cable from Sensor to DCP.

Uses Version 4.XX firmware. Includes a mating 3-foot SDI-12/Power cable and a 3-foot RS-232 cable. For international orders, please add an "-I" to the end of all requested part numbers.

Uses Version 4.XX firmware. Includes built-in 2.5-foot SDI-12/Power and Transducer I/O Cables and a mating 3-foot RS-232 cable. For international orders, please add an "-I" to the end of all requested part numbers.

A 6-inch pigtail connector exits from the side, with a 4 foot calibration tube. Includes a 10-foot Sensor cable.

A 6-inch pigtail connector exits from the top, calibrated for 4 feet. Includes a 10-foot Sensor cable.

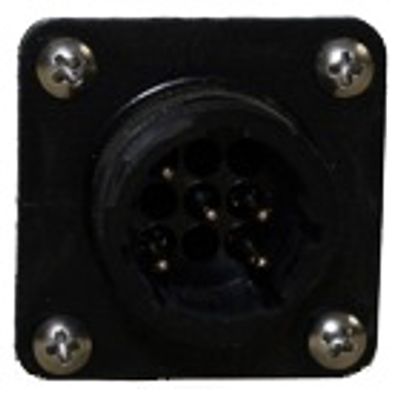

Features a top-mounted bulkhead waterproof connector, with a 4 foot calibration tube.

Includes a top adaptor, 20 feet of 4-inch schedule 40 PVC Pipe; Bottom Assembly with copper plates, bronze cone, and copper insert.

Mates to 4-inch PVC pipe. Includes PVC Transducer mounting plates/clamps, protective cover, and assembly hardware with screen vents.

The Model 9002 uses a measurement and control datalogger that is a powerful core component for your data-acquisition system. This data logger uses faster communications, low power requirements, built in USB, compact size, and improved analog input accuracy and resolution. This data logger also uses the universal (U) terminal—an ingenious way for allowing virtually any sensor (analog, digital, or smart) to be connected to any U terminal. This data logger also is capable of doing static vibrating-wire measurements.
