A.R.D.E. Barinco, Inc. products
High Shear Dispersion Grinder Pump
ARDE Barinco - Model 2 X 1 Laboratory System - Arde Dicon Inline Dispersing Grinder
Wetted parts Type 316 stainless steel. Toothed impeller and liner. `2` diameter conical inlet flange with quick release clamp to 12 liter cone bottom jacketed recirculation tank, suitable for vacuum. 1` diameter sanitary ferrule outlet with quick release clamps to three-way valve to recirculation manifold or discharge. Sanitary ferrule joint gaskets Viton. No. 4 finish minimum on all stainless steel surface.

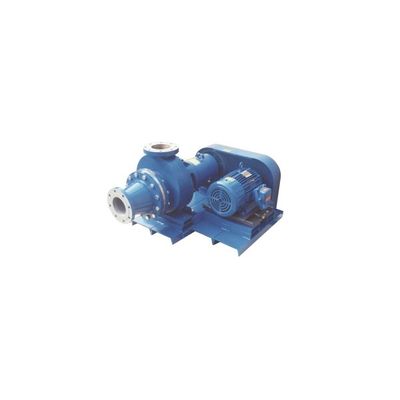

ARDE Barinco - Model 3 x 1.5 Dicon - High Shear Dispersion Grinder Pump

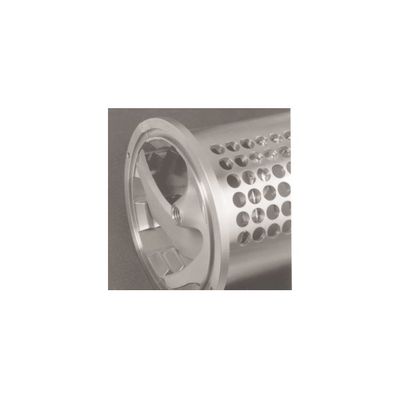

Wetted parts Type 316 stainless steel. Toothed impeller and toothed liner combination has 6 rows of 6 liner teeth meshing on 3 rows of 7 teeth on helical impeller providing over 6,480 grinding convergences per second at 0.030 inches tolerance. Discharge grid pattern is 7 rows x 7 rows of 1/8` diameter opening (49 holes). Consult factory for alternative grid configurations.
ARdE Barinco - Model 6 x 3 Dicon 3600 - Stainless Steel High Shear Dispersion Grinder Pump
ARdE Barinco - Model 6 x 3 Dicon - Stainless Steel Heavy Duty High Shear Dispersion Grinder Pump
Model 10 X 6 MEGAGRINDER - High Shear Dispersion Grinder Pump (DICONS)
High Shear Homogenizing Mixer (Reversible Homogenizers)
ARDE Barinco - Model C-1-1 - Reversible Homogenizer
33` immersion length shaft with (4) support rods holding 5.5” dia. rotor housing. 3.875` diameter, 5 blade, 35 degree axial flow rotor. 8” adjustable baffle plate with control rod and locking handle.
ARDE Barinco - Model C-1-2 - Reversible Homogenizer
45` immersion length shaft with (4) support rods holding 5.5” dia. rotor housing. 3.875` diameter, 5 blade, 35 degree axial flow rotor. 8.5” adjustable baffle plate with control rod and locking handle.
ARdE Barinco - Model C-1-3 - Reversible Homogenizer
60" immersion length shaft with (4) support rods holding 5.5” dia. rotor housing. 3.875" diameter, 5 blade, 35 degree axial flow rotor. 8” adjustable baffle plate with control rod and locking handle.
ARdE Barinco - Model C-2-1 - Reversible Homogenizer
33" immersion length shaft with (4) support rods holding 6.5” dia. rotor housing. 5.0" diameter, 5 blade, 24 degree axial flow rotor. 12.5” adjustable baffle plate with control rod and locking handle. All major wetted parts Type 316 stainless steel except Rulon mixing head bearing (FDA accepted). Drive shaft directly coupled to 7.5 HP, 3600 RPM, TEFC Reversible motor for 3/60/230-460 service. (Starter omitted). With lifting bracket and stainless steel mounting brackets for bolting to tank spanning supports (support omitted).
Powder Into Liquid Disperser (Dispershear)
ARDE Barinco - Model D-1000 - Powder Into Liquid Dispersher
Contact Parts: 304 Stainless Steel and Acetal homopolymer (DELRIN). Conical Hopper Volume: 0.33 cubic feet.
