Ardesia s.r.l products

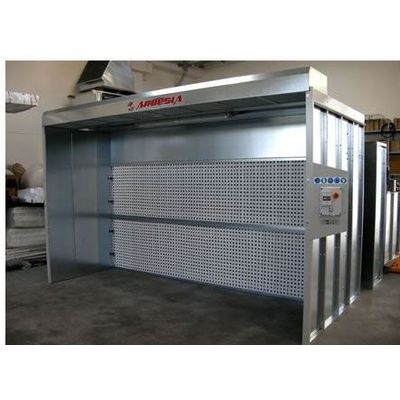

The Big Silver dry painting booth is suitable for suctioning and demolishing the pigments and fumes emitted from paint spray made with synthetic solvents, organic water. The removal of the pigments and fumes occurs with a suctioning wall of cardboard inertial and a second filtration with “Paint Stop” filters drawers. Big Silver is used for painting bulky elements in height. The dry painting booth is built with modular panels of galvanized press folded sheet iron.

The Amber dry painting booth is suitable for suctioning and demolishing the pigments and fumes emitted from paint spray made with synthetic solvents, organic water. The removal of the pigments and fumes occurs with a suctioning wall of cardboard inertial and a second filtration with “Paint Stop” filters drawers. Amber is built with modular panels of galvanized press folded sheet iron.

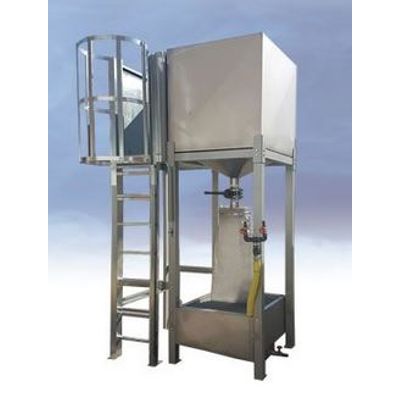

The water treatment process is based on the chemical principle of flocculation, ie the progressive enlargement of the particles present in a solution up to separation, in the presence of a specific reagent (flocculant additive). The Def sludge separation plant is equipped with an independent pump which is introduced into the tank from the cab. The waters to be purified are conveyed by the same in the separation tank. The reagent must be added to it and at the same time the stirring system will have to start working.
The mud will be conveyed into a suitable container, consisting of a polypropylene bag, which will also filter any water left in the sludge.

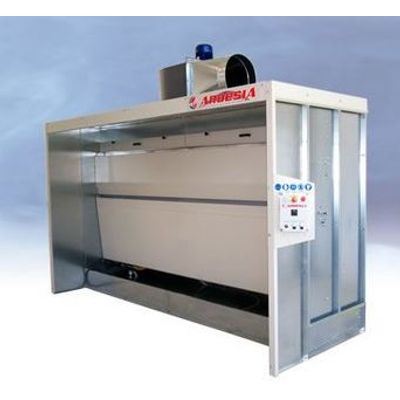

This type of painting booth is suitable for suctioning and demolishing the pigments and fumes emitted from paint-spay made with synthetic solvents, organic and water. The removal of the pigments and fumes occurs with a double frontal veil of water, nebulisers, the separation of water droplets through plastic trays and air filtration with “Paint Stop filter drawers. This booth is built with modular panels of galvanized press-folded sheet-iron. The veils are made of galvanized pre-painted sheet-iron. The lower veil opens with gas for the maintenance and extraction of the “Filler” filters.

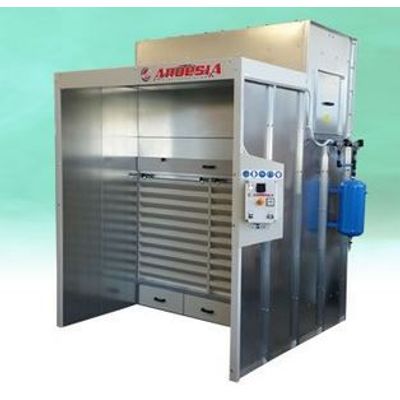

The dust suction booth Aspire is indicated for the suctioning and removal of dust from sanding and it is built with galvanized press-folded sheet iron. The main feature of Aspire is the filtration of dust through aluminized polyester antistatic cartridges. The booth Aspire is equipped with self cleaning system of the cartridges with jets of compressed air. The dust jets are deposited in removable trays.

The dust suction booth Dust Power is indicated for the suctioning and removal of dust from sanding and it is built with galvanized press-folded sheet iron. The main feature of Dust Power is the filtration of dust through aluminized polyester antistatic cartridges. The booth Dust Power is equipped with timed self cleaning system of the cartridges with jets of compressed air. The dust jets are deposited in removable trays.

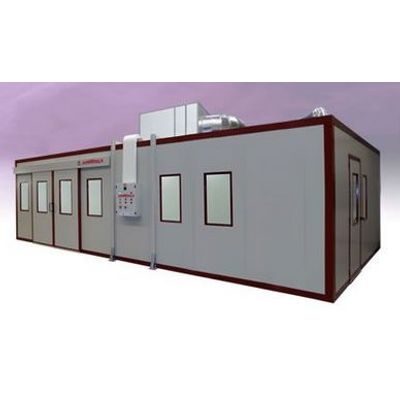

The pressurized drying plant Ardesia Box is suitable for the drying of freshly painted products in a dust free environment and with consistency in temperature and it is built with sandwich panels. The air flow for drying the products is created by a pressurized and extraction units.

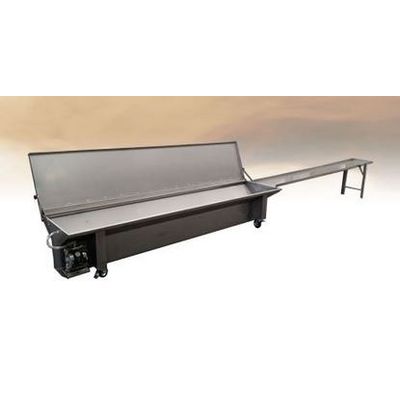

The tub for impregnation Imprex is built of stainless steel complete with a double member air pump with shower, a lid and a drip.

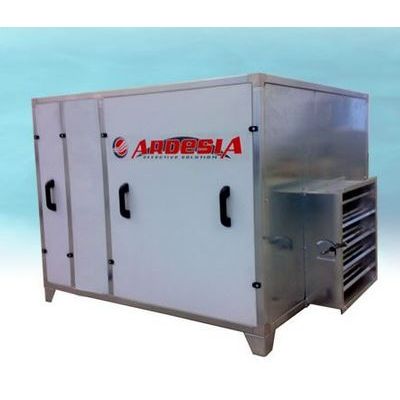

The pressurized group is constructed with a load- bearing frame and insulated perimeter panels with interposition of rock wool. Drive train exhaust fan with double inlet transmission belt. Intake acrylic filter. Complete with damper adjustment.
