ARI-Armaturen GmbH & Co.KG products

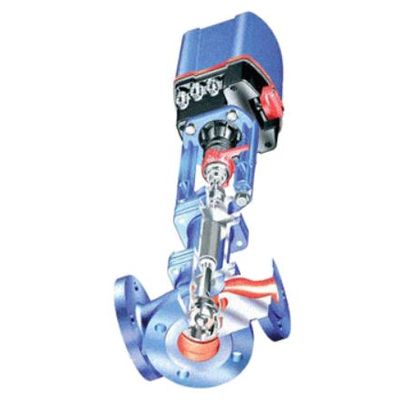

Control valve - straight through with shaft guided plug. Selection criteria: complex control task, critical operating conditions, specific requirements Application: process technology, (heavy-) industrial complex, plant construction, chemical industry, power plant technology.
Refrigerant, cooling water, warm water, hot water, thermal oil, steam, gas, etc.

ANSI-Control valve - straight through with shaft guided plug.

Control valve - straight through with shaft guided plug

Control valve - straight through with flanges and screwed seat ring

Control valve - straight through with flanges

The ARI “FABA” is reliably sealed, even under the most adverse conditions. The bellows-type valve is maintenance-free and like all ARI valves – is classed leak rate 1 in accordance with DIN 3230.

ARI makes a wide range of control valves and actuators. Straight-through or three-way control valves with electric or pneumatic actuators are designed in several types and with variable trim options to accurately regulate everything from cold water to aggressive thermal oils. All of our control valves are available with or without a stainless steel double walled bellows, for leakproof maintenance-free sealing of high temperature or aggressive media. In addition: rangeability from 30:1 to 50:1, multiple materials, several types of actuators, and an extensive list of control accessories means that no matter your application, we will likely have the perfect solution. If you can’t find what you need on this list give us a call, we’d be happy to help you with a customized setup!

Direct Loaded Safety Valves for blowing off excess pressure of steam, vapor, gases, and liquid from pressure vessels, steam boiler, hot water boiler and piping systems. ARI-SAFE safety valves are available in full-stroke and normal versions. Our safety valves are available with metal or soft seated plugs, with precise centering and guiding. Materials include cast iron, cast steel, and stainless steel. Call us for further options!

Flanged connections, straight through form, temperature body from -10°C to 350°C, various pressure ranges available, DN 25-DN100.

Application: Industrial installations, processing technology, plant manufacturing, etc. Medium: Steam, neutral gases, vapours and liquids, etc.
