Armada Technologies, LLC products

The residential wire and valve locator you can count on. You have our word on it. If you’re a contractor working primarily with smaller wired systems, Armada’s Pro300 is a perfect fit. Because underground wires and cables in residential sprinkler systems don’t run for long distances, the Pro300 is the ideal application for your needs.

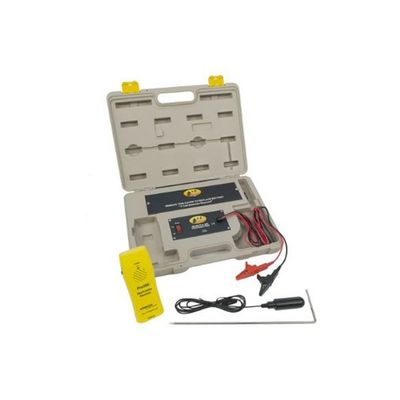

The Pro800D Underground Wire and Valve Locator for sprinkler and irrigation professionals sets a new standard for features and functionality.  Introduced in 2010, thousands of Pro800D wire and valve locators around the country testify to its utility and effectiveness

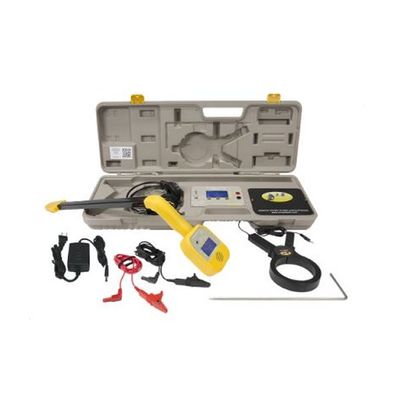

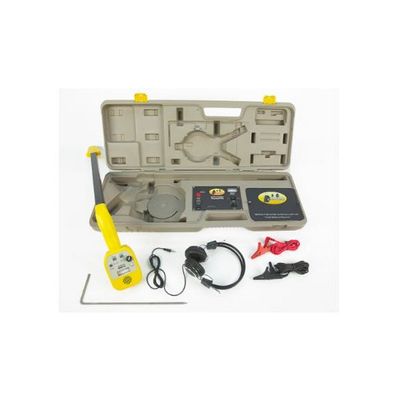

Digital, Inductive, Exceptional The Pro900 Digital Underground Cable Locator is the #1 locator at Armada and is a full-featured digital underground locator for contractors and maintenance personnel. Incorporating three different locating frequencies, the Pro900 tracks metallic cabling, including CATV, electrical, telephone, sprinkler, and lighting. The Pro900 transmits solid or intermittent signals that are easy to follow. The digital signal reception allows for crystal clear tone reception in most situations with either null or peak reception and features a KOSS stereo headset.

The Armada Technologies model Pro65 Plastic Pipe Tracing Accessory (or snake) is a simple yet effective tool for tracing an underground pipe or conduit that does not have an accompanying trace wire. The Pro65 is the world’s smallest tracer, able to navigate 90-degree bend radius’ of just under 2 inches. This means that some of the smallest PVC or plastic pipes can now be traced without digging or cutting the pipe. In the sprinkler world, simply remove the sprinkler head, insert the Pro65 into the pipe, and apply pressure to move it along the path. 1 1/4 inch pipe is no problem. At the end of the Pro65 is a sonde, which acts as a beacon and sound spot when used with a 33KhZ transmitting locator. The Pro65 works with any locator to track path but the sonde tip requires 33KhZ for the extra sound boost.

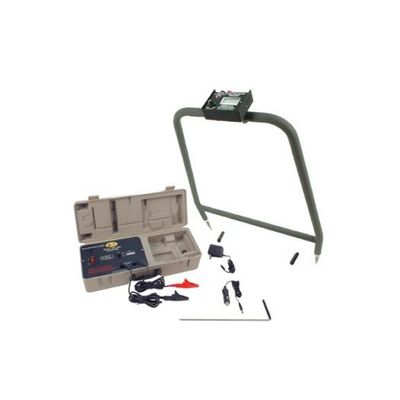

The GFL3000 is designed to pinpoint nicks or cuts in underground cables or wires where voltage is leaking to ground.  The GFL3000 transmits a powerful pulsed charge that is detected by the receiver at the top of the A-Frame. The receiver has an analog meter that kicks in the direction of ground faults. Following these kicks will quickly lead you to the exact location where electrical voltage is being lost to ground.

If you’re searching for a general-purpose multimeter for identifying wiring faults, look no further than Armada’s Pro30 Digital Multimeter.  Test capability includes resistance, amperage, and either AC or DC voltage.  The Pro30 comes with a troubleshooting cheat sheet for irrigation included in the package.

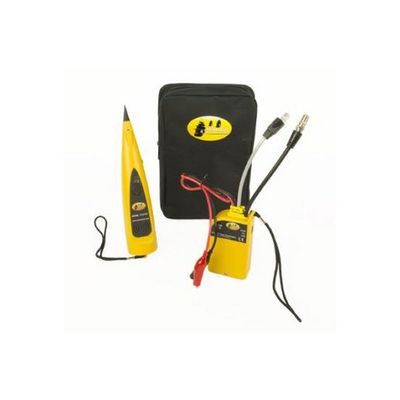

The Pro220A Advanced AC Filtered CATV Tone and Probe ID Kit incorporates features specifically for the cable TV industry.  First, the tone generator uses both male and female F connectors for easy interface with CATV cabling.  Second, both the Pro110A Tone Generator and Pro210F AC Filter Probe utilize AA batteries, which are commonly available at any CATV facility and provide 250+ hours of operation.  Third, the Pro210F probe is highly advanced, with AC filtering technology to reduce interior AC noise interference and buzz.  In addition, the Pro210F has a high powered LED headlight for dark areas.  And standby features like headset jack, low battery light, and volume control are all included.

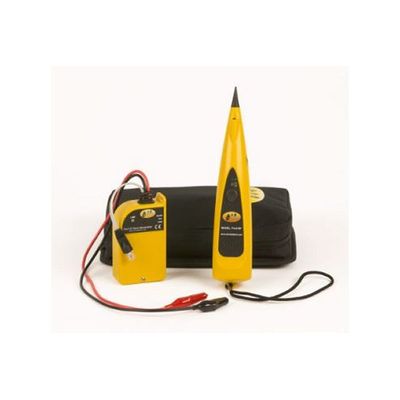

The Pro220K Advanced AC Filtered Tone and Probe kit is designed to help contractors easily identify the termination point of any wire. The Pro220K Advanced Tone and Probe Kit pinpoints where a particular wire or cable terminates at the far end of the cable.
