Armas Su Armaturleri San ve Tic AS products

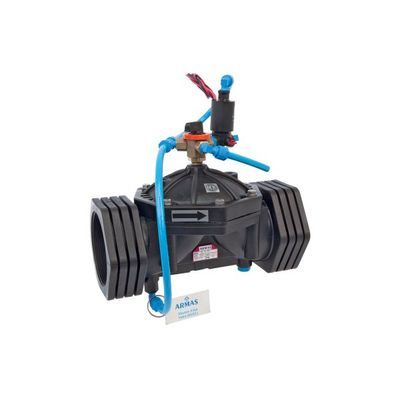

Armas “EL” model valve is the hydraulic control valve operated by line pressure and designed to ensure opening/closing process by means of built in 3-way solenoid pilot valve controlled remotely with electric signal. Electric signal for solenoid pilot valve is ensured by means of a control device, time relay, main switch and PLC control units etc. Opening/Closing process may be realized easily thanks to manual control on solenoid pilot valve. Depending on requirements. 24V AC 50Hz/60Hz or 12V DC, 9V Latch and 12V DC Latch normally open (N.O.) or normally closed (N.C.) solenoids coils may be used on main valve.

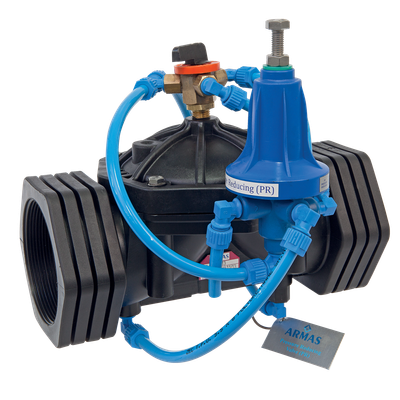

Armas “PR” model pressure reducer control valve is the hydraulic control valve which reduces high upstream pressure value to desired lower pressure value by means of built-in pressure reducing pilot valves. Pressure reducer control valve controls downstream pressure value continuously and maintains it constant without being affected from flow rate and upstream pressure values. When no flow exists in the system, it closes itself automatically. When valve upstream pressure value, it is opened fully by itself. Valve may be used in vertical or horizontal positions in the system.

Armas “PR” model pressure reducing control valve is the hydraulic control valve which reduces high upstream pressure value into desired lower pressure value by means of built-in pressure reducing pilot valves.Pressure reducer control valve controls downstream pressure value continuously and maintains it constant without being affected from flow rate and upstream pressure values.When no flow exists in the system,it is closer by itself automatically.When valve upstream pressure value decreases below adjusted downstream pressure value,it is opened fully by itself.

Armas “FL” model float level control valve is the hydraulic control valve designed to control water level in reservoirs and tanks continuously. Main valve is controlled by 2-way modulating type float pilot valve manually. Main valve mounted on reservoir and tank upstream is closed as fully sealed without causing surge when water level reaches to maximum level. Valve opening/closing speed may be adjusted in set value. It may be used in the system by mounting horizontal or vertical positions.

Armas “DIFL” model differential float level control valve is the hydraulic control valve designed to control water level in reservoirs and tanks in desired ranges. Main valve is closed as wholly sealed without surge when water reach desired level thanks to 4/3 way differential control pilot. Max. and min. water level in reservoir may be adjusted to desired value in a wide range. Thanks to this feature, pump does not put into/out of service frequently during level control of reservoir fed by pump. Valve controls water level and keeps it in desired range without being affected from flow rate and pressure changes.

Armas “ALT” model is an automatic, high sensitive pilot controlled, level control valve, activated by the static pressure of the tank tower. The high sensitive pilot valve opens or close the main valve in response to the static pressure of water level in tank. The pilot valve located outside the tank tower. There is no need any floats.

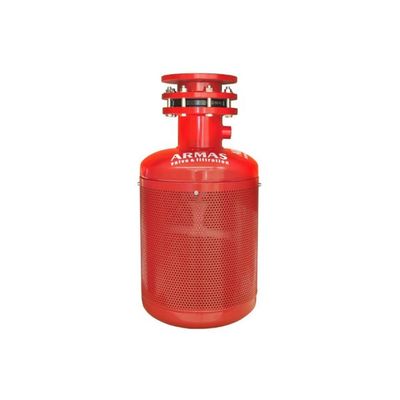

Suction filter is designed to protect the pumps from debris and foreign matters. It is generally used in water sources containing algea, debris, and other heavy wastes. It is connected to pump suction and submerged into water (river, lake, reservoir, etc.).

Armas Overground Fire Hydrants are designed and manufactured according TS EN 14384 standards and provide water to fire brigade crew at possible fire moment to treat rapidly. The hydrants are used in supplying water for fire brigade in factories, warehouses, industrial plants, around the buildings, fire sensitive forestlands and residential areas.

Swing check valve permits that water passes toward flow direction and prevents water flow in counter direction. It is manufactured in such a way that it will be closed by its own weight or by a weight mechanism. It is used in especially pumping plants to prevent back flow in case pump becomes out of service. It may be used in hot and cold water plants and with each kind of acid free gases and liquids.
