Products and Equipment from Asahi/America, Inc.

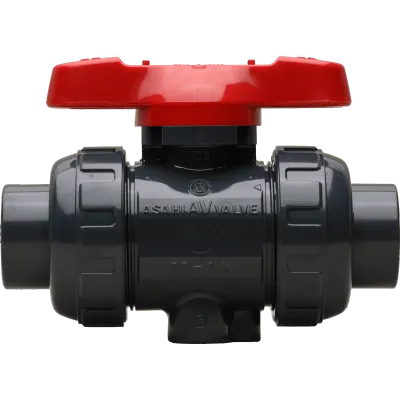

Asahi/America - Model Type 21/21a - True Union Ball Valve (1/2)

Type-21/21a ball valves are corrosion resistant plastic manual true union design quarter turn valves with hyperbolic flow characteristics, low pressure drops and reliable sealing. They offer relatively poor flow control and are typically used in on/off applications. They are excellent for use in clean fluid service applications with very little to no suspended solids....

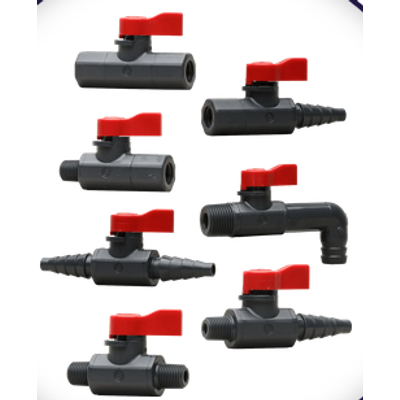

Asahi/America Omni - Plastic Manual Ball Valves (3/8`-2`)

The Omni plastic manual valves are economical, one-piece valves that cannot be taken apart. Omni plastic manual ball valves are molded body design quarter turn valves with hyperbolic flow characteristics, low pressure drops and reliable sealing. They offer relatively poor flow control and are typically used in on/off applications. They are excellent for use in clean fluid service applications with very little to no suspended solids. Omni ball...

Multiport - Model Type 23 - Thermoplastic Ball Valves (1/2 to 6)

Ball valves perform a quarter turn on/off or modulating function. A flow-controlling ball located within the body of the valve contains a hole through its center along one axis, which connects the inlet and outlet ports of the body. The ball itself is held in place by, and rotates 90º within, PTFE seats. These provide permanent lubrication and keep the valve bubble-tight. They are backed by elastomeric cushions, which provide pressure against the...

Labcock - Thermoplastic Valves

Ball valves perform a quarter turn on/off or modulating function. A flow-controlling ball located within the body of the valve contains a hole through its center along one axis, which connects the inlet and outlet ports of the body. The ball itself is held in place by, and rotates 90º within, PTFE seats. These provide permanent lubrication and keep the valve bubble-tight. They are backed by elastomeric cushions, which provide pressure against the...

Ball Valve Options

Customize your valves to meet your application's unique demands with these options. Asahi/America can factory install any of these options at the time of order, or you can order these options to enhance the functionality of valves you may currently have installed at your site.

Air-Pro - Model New PE100 - Compressed Air Piping System

Asahi’s patented PE100 Ball Valve is the latest innovative solution to Gas, Sewer, and Water applications. This durable valve offers many unique features and benefits not found with metal valves used in similar applications.

Asahi/America - Model Type 57IL - Isolator Lug Butterfly Valve

Type-57 IL plastic butterfly valves are quarter turn valves designed for use in applications where 1-side flange removal may be periodically required. They feature a PVC body with fully molded in 316SS threaded lug inserts for connection to the mating flanges. Type-57 IL butterfly valves permit one side flange removal, while maintaining full line pressure on the opposite side. They provide moderate flow control and therefore can be used for both...

Asahi/America - Model Type-57 LIS - Thermoplastic Butterfly Valves

Type-57 LIS Butterfly valves are quarter turn plastic valves with equal percentage type flow characteristics. They provide moderate flow control and therefore can be used for both on/off and modulating service. Good tolerance to suspended solids but not recommended for use with slurries or debris. The Type-57 LIS butterfly valve is well suited for a wide variety of fluid flow applications. The Type-57 LIS butterfly valve conforms to ISO 5752...

Asahi/America - Model Type-55 - Manual Plastic Butterfly Valves

Type-55 butterfly valves are quarter turn plastic valves with equal percentage type flow characteristics. They provide moderate flow control and therefore can be used for both on/off and modulating service. The Type-55 butterfly valve features an epoxy powder coated ductile cast iron body with PTFE disc and Liner. The Type-55 is designed for use in applications where conventional rubber liners and thermoplastic discs would fail. Can be...

Model Type 56 - Thermoplastic Butterfly Valves

Butterfly valves are named for the wing-like action of the flow-controlling disc, which operates at right angles to the flow. The disc has about the same diameter as the connecting pipe, and the flow is straight through, with a low pressure drop. Maintenance is easy due to the small number of moving parts. The butterfly valve can be used either as an on/off or modulating type of valve. Type 56 Valve has no metal to media or environment contact...

Model Type 57 - Thermoplastic Butterfly Valves

Butterfly valves are named for the wing-like action of the flow-controlling disc, which operates at right angles to the flow. The disc has about the same diameter as the connecting pipe, and the flow is straight through, with a low pressure drop. Maintenance is easy due to the small number of moving parts. The butterfly valve can be used either as an on/off or modulating type of valve. Asahi/America has recently developed the advanced Type 57 Valve,...

Model Type 57L - Lug Guard Thermoplastic Butterfly Valves

Butterfly valves are named for the wing-like action of the flow-controlling disc, which operates at right angles to the flow. The disc has about the same diameter as the connecting pipe, and the flow is straight through, with a low pressure drop. Maintenance is easy due to the small number of moving parts. The butterfly valve can be used either as an on/off or modulating type of valve. Asahi/America has recently developed the advanced Type 57 Valve,...

Model D-SERIES - High Pressure Thermoplastic Butterfly Valves

Features and Benefits: Higher Pressure Rating Than Standard 56 or 75, 110 PSI at 70° F - All Sizes 16” – 24” Seat Over-Tightening Protection, Disc and Seat only Wetted Parts, Full Engagement Non-Wetted 1-piece Stem, Bubble Tight Seating, ISO Top Flange for Accessory Mount

Model Type 75 - Thermoplastic Butterfly Valves

Butterfly valves are named for the wing-like action of the flow-controlling disc, which operates at right angles to the flow. The disc has about the same diameter as the connecting pipe, and the flow is straight through, with a low pressure drop. Maintenance is easy due to the small number of moving parts. The butterfly valve can be used either as an on/off or modulating type of valve. The Type 75 Butterfly Valve is only offered in 18' to 24' sizes....

Pool-Pro - Model Type SP - Thermoplastic Butterfly Valves

Butterfly valves are named for the wing-like action of the flow-controlling disc, which operates at right angles to the flow. The disc has about the same diameter as the connecting pipe, and the flow is straight through, with a low pressure drop. Maintenance is easy due to the small number of moving parts. The butterfly valve can be used either as an on/off or modulating type of valve. These valves may be operated manually, electrically, or...

Model Type PDCPD - Giant Thermoplastic Butterfly Valves

Butterfly valves are named for the wing-like action of the flow-controlling disc, which operates at right angles to the flow. The disc has about the same diameter as the connecting pipe, and the flow is straight through, with a low pressure drop. Maintenance is easy due to the small number of moving parts. The butterfly valve can be used either as an on/off or modulating type of valve. Asahi/America has recently developed the advanced Type 57 Valve,...

Butterfly Valve Options

Customize your valves to meet your application's unique demands with these options. Asahi/America can factory install any of these options at the time of order, or you can order these options to enhance the functionality of valves you may currently have installed at your site.

Plasgear - Industrys First Thermoplastic Gear Operator

Constructed of composite plastic with black urethane coating, Plasgear will not corrode or rust as a result of exposure to harsh chemicals. The new plastic gear box is ideally suited for use in a broad range of applications such as severe chemicals and sea water. Plasgear is standard on all Asahi/America 1 1/2' - 14' Type 57 Butterfly Valves, or can be supplied without the valve. The gear incorporates the latest industry standards including NAMUR top...

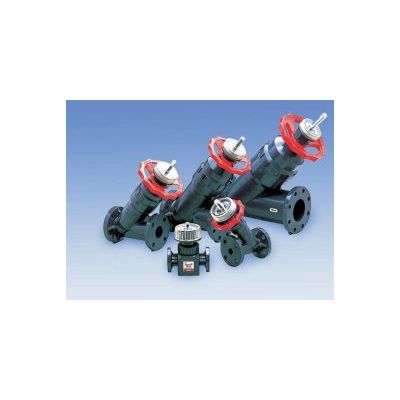

Model Type 14 - Flanged Thermoplastic Diaphragm Valves

Diaphragm valves offer many body and elastomeric diaphragm material combinations. The valve design is abrasion-resistant and non-clogging. When the diaphragm, which is connected to the stem of the valve by a compressor, is pulled away from the bottom of the valve body or weir, the path of the fluid has a smooth, streamlined flow. Slurries at low pressure, which would normally clog most other valve designs, easily pass through a diaphragm valve. The...

Model Type 14 - True Union Thermoplastic Diaphragm Valves

Diaphragm valves offer many combinations of body materials and elastomeric diaphragm materials. The valve design is abrasion-resistant and non-clogging. When the diaphragm, which is connected to the stem of the valve by a compressor, is pulled away from the bottom of the valve body or weir, the path of the fluid has a smooth, streamlined flow. Slurries at low pressure, which would normally clog most other valve designs, easily pass through a diaphragm...

Model Type 15 - Thermoplastic Diaphragm Valves

Diaphragm valves offer many combinations of body materials and elastomeric diaphragm materials. The valve design is abrasion-resistant and non-clogging. When the diaphragm, which is connected to the stem of the valve by a compressor, is pulled away from the bottom of the valve body or weir, the path of the fluid has a smooth, streamlined flow. Slurries at low pressure, which would normally clog most other valve designs, easily pass through a diaphragm...

Model AD-16 - Compact Thermoplastic Diaphragm Valves

The AD-16 Series Air Diaphragm Valve is the most compact design offered today. The AD-16 Series is constructed from rugged PVC, featuring PTFE diaphragm, and is ideal for DI water and chemical applications. The HDV is ideal for skid mounted water and chemical distribution systems. Its compact design allows for easy installation in areas where space saving is a priority.

Model Type G - Thermoplastic Diaphragm Valves

Diaphragm valves offer many combinations of body materials and elastomeric diaphragm materials. The valve design is abrasion-resistant and non-clogging. When the diaphragm, which is connected to the stem of the valve by a compressor, is pulled away from the bottom of the valve body or weir, the path of the fluid has a smooth, streamlined flow. Slurries at low pressure, which would normally clog most other valve designs, easily pass through a diaphragm...

Model TI - Thermoplastic Diaphragm Valves

Durable Corrosion Resistant PPG Bonnet, Solid Molded PVDF Flanged Body, 3-Lay EPDM/PVDF/PTFE Diaphragm, All Titanium Body to Bonnet Fasteners, Palladium Titanium Compressor Joint and Diaphragm Insert

Diaphragm Valve Options

Customize your valves to meet your application's unique demands with these options. Asahi/America can factory install any of these options at the time of order, or you can order these options to enhance the functionality of valves you may currently have installed at your site.

Model New - Thermoplastic Wafer Check Valves (10 & 12)

Introducing 10” and 12” PVC wafer check valves. Wafer check valves are installed on the discharge side of pumps in applications such as aquariums, water attractions, water treatment and municipalities to prevent back-flow flooding that could seriously damage pump systems.

Thermoplastic Swing Check Valves

Check valves are used to prevent the reversal of flow in a line. When open and under flow pressure, the checking mechanism will move freely in the media, offering very little resistance and minimal pressure drop. We offer two basic types of check valves: swing check valves and ball check valves. A swing check valve utilizes a swinging disc, which requires only minimal back pressure to close the valve. This valve can also be modified, with a lever and...

Thermoplastic Ball Check Valves-True Union

Check valves are used to prevent the reversal of flow in a line. When open and under flow pressure, the checking mechanism will move freely in the media, offering very little resistance and minimal pressure drop. We offer two basic types of check valves: swing check valves and ball check valves. A swing check valve utilizes a swinging disc, which requires only minimal back pressure to close the valve. This valve can also be modified, with a lever and...

Thermoplastic Ball Check Valves-Single Union

Check valves are used to prevent the reversal of flow in a line. When open and under flow pressure, the checking mechanism will move freely in the media, offering very little resistance and minimal pressure drop. We offer two basic types of check valves: swing check valves and ball check valves. A swing check valve utilizes a swinging disc, which requires only minimal back pressure to close the valve. This valve can also be modified, with a lever and...

Thermoplastic Manual Globe Control Valves

The flow through a globe valve follows a course that changes direction nearly 90º twice. But, because the seating of a globe valve is parallel to the line of flow of the liquid, the valve can be used to throttle the flow to any required degree or to give positive shut-offs. The economy and dependability of the Asahi/America globe valve make it desirable for many applications where this pressure drop is not critical. These valves are designed for...

New-Electric Globe Control Valve

The flow through a globe valve follows a course that changes direction nearly 90º twice. But, because the seating of a globe valve is parallel to the line of flow of the liquid, the valve can be used to throttle the flow to any required degree or to give positive shut-offs. The economy and dependability of the Asahi/America globe valve make it desirable for many applications where this pressure drop is not critical. These valves are designed for...

Pneumatic Globe Control Valve

The flow through a globe valve follows a course that changes direction nearly 90º twice. But, because the seating of a globe valve is parallel to the line of flow of the liquid, the valve can be used to throttle the flow to any required degree or to give positive shut-offs. The economy and dependability of the Asahi/America globe valve make it desirable for many applications where this pressure drop is not critical. These valves are designed for...

Model Type P - Thermoplastic Gate Valves

The gate valve is the most widely used on/off valve for large diameter, full port applications. When the valve is fully open, it allows straight passage through an opening that is essentially the same size as the inside diameter of the connecting pipe, so there is little pressure drop through a gate valve. The valve operates when the hand wheel and stem screw (or electric actuator) move a cylindrical plug, the gate, up and down at right angles to the...

Gate Valve Options

Customize your valves to meet your application's unique demands with these options. Asahi/America can factory install any of these options at the time of order, or you can order these options to enhance the functionality of valves you may currently have installed at your site.

Model Type A - Pressure Relief Valves

The thermoplastic pressure relief valve protects equipment and systems against overpressures or sudden pressure surges. Able to handle highly corrosive or ultrapure liquids, the relief valve prevents pumps from dead-heading due to unexpected shut-offs downstream (also known as a bypass relief valve). It maintains back pressure in closed-loop systems to make pumps run more smoothly (also known as a back pressure valve).

Model Type E - Pressure Relief Valves

These relief valves have been designed with a PTFE bellows stem seal and are available in body materials of PVC, PP, PVDF and PTFE, O-ring seals of EPDM, FKM or PTFE encapsulated FKM, and in sizes from 1/2' - 4'. The Type E Pressure Relief Valves feature light-weight construction, high flow coefficients, and no metal to media contact. Drilled to an ANSI B16.5 bolt pattern, the Type E Pressure Relief Valves are versatile and can easily be...

Thermoplastic Constant Flow Valves

Constant flow valves provide an accurate way of controlling flow without automation (neither electricity nor an air supply is required). Accurate control is achieved by the globe style body and seat-and-plug configuration. This unique design allows the valve to maintain a constant preset flow, even if the differential pressure changes. The all thermoplastic construction makes it ideal for semiconductor, chemical, swimming pool and salt water...

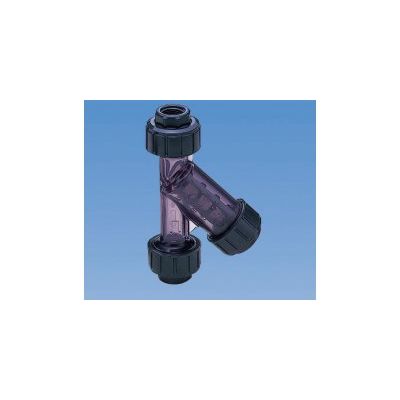

Thermoplastic Sediment Strainers

Sediment strainers protect pipeline components such as pumps and meters by removing suspended solids and impurities. Transparent thermoplastic construction permits easy detection of the screen's condition.

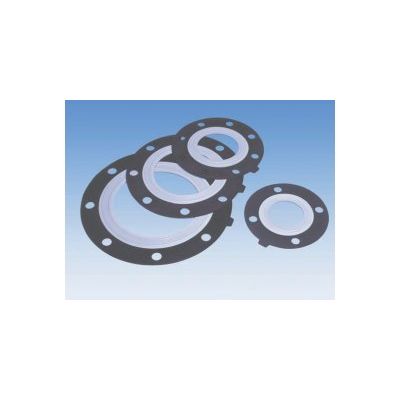

Thermoplastic AV Gaskets

Asahi/America valve gaskets offer a unique double convex ring design that gives optimum sealing with only one third the torque commonly required with flat faced gaskets. Asahi offers EPDM gaskets from 1/2' to 12'; PTFE-bonded EPDM gaskets in sizes from 1/2' to 12'; and PVDF-bonded EPDM gaskets from 1/2' to 10'.

Model V82 - Pressure Regulator

The pressure reducing valve V82 reduces pressure to a given value. It adjusts itself to the set working pressure and maintains it on the downstream side, regardless of fluctuations of inlet pressure or changes in flow demand. There is no direct relation between the working pressure and the inlet pressure. The valve works by balancing an adjustable spring force that pushes downward onto a diaphragm, against the force of the fluid pushing upward.

Model V782 - Pressure Regulator

The pressure reducing valve V782 reduces pressure to a given value. It adjusts itself to the set working pressure and maintains it on the downstream side, regardless of fluctuations of inlet pressure or changes in flow demand.

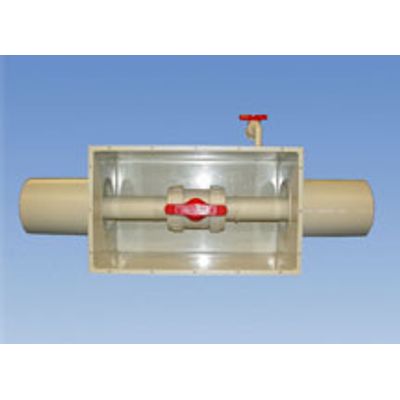

Thermoplastic Valve Boxes

Asahi/America Inc., introduces customized valve boxes to provide easy, convenient protection for all Asahi/America valves and valve assemblies.

Model Series 92 - Electric Actuators

All Series 92 electric actuators shall have a thermally protected, bi-directional (reversing type), capacitor run motor with a permanently lubricated gear train. 115 VAC & 230 VAC motors shall conform to CE and be indicated on motor housing. Actuator shall have solid, heat-treated gearing encompassed in a baked powder coated die cast aluminum housing with stainless steel trim, which meets Type 4X, 7 & 9. Each actuator to have a declutchable...

Model Series 94 - Electric Actuators

All Series 94 electric actuators shall have a thermally protected, bi-directional (reversing type), capacitor run motor with a permanently lubricated gear train. 115 VAC & 230 VAC motors shall conform to CE and be indicated on motor housing. Actuator shall have a Zytel FR50 engineered resin housing with stainless steel trim, which meets Type 4X. Each actuator to have a declutchable manual override, visual position indication, ISO mounting...

Model Series 79 - Pneumatic Actuators

Asahi/America's Series 79 pneumatic actuators, for quarter turn ball and butterfly valves, provide accurate and dependable control, especially in corrosive applications.

Model Series 79 - Pneumatic Actuators with Solenoid

The solenoid valve used for our pneumatic actuators is a four-way, on/off, electrically controlled valve. An electrical signal to the solenoid's coil switches the compressed air supply to the actuator cavities as follows: The solenoid valve is used with the actuator, and simultaneously pressurizes port A while exhausting the end cap cavities through port B, or vice versa. The solenoids are furnished with mufflers and speed controls. The muffler...

Model P-Series - Limit Switch

Asahi/America, Inc., introduces our newest Limit Switch Box. The new limit switch mounts on all pneumatic valves and functions as a visible and electric limit switch. The namur style shaft connects directly to the actuator via bracket to ensure accuracy. The new limit switch is a low cost valve position indication solution. It features polyester-coated aluminum alloy construction, electromagnetic or inductive limit switches,...

Westlock Limit Switch

A limit switch box is mounted on and coupled to the actuator in order to operate position-indicating lights on control panels; to control other equipment such as pumps, compressors and mixers; to sequence other valves, or for feedback and PLC position confirmation. Two single pole, double throw (SPDT) switches are mounted in one enclosure and are activated by individual, adjustable cams. The cams are connected to the cam shaft, which is direct...

Model K-10 - Positioners

The Westlock K-10 electro-pneumatic positioner accepts variable instrumentation signals (between four and 20 milliamps) from a PLC, DCS or set point controller, and regulates the 80-psi air supply to and from the actuator. This process regulates the actuator position within its quadrant for precise modulation.

Model DHC-100 - Digital Positioner

The DHC-100 is a high performance digital positioner, providing 450 points of resolution for quarter turn actuators ranging from two seconds to 120 seconds, and is rated for a 25 percent duty cycle, or more.The DHC-100 has many automatic advanced features that will enhance our actuators while maintaining ease of installation and calibration. The DHC-100 positioner features, self calibration without multimeter or control signal, duty cycle...

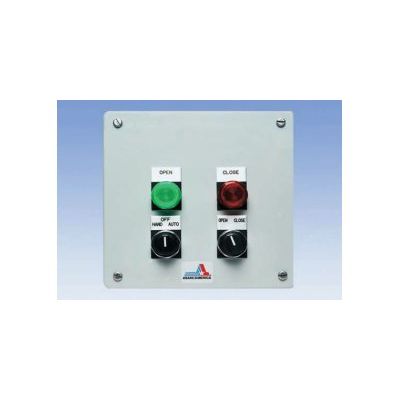

Local Remote Station

Visual light indication, NEMA 4X enclosure constructed of fiberglass polyester, Stainless steel trim, Captive cover gasket, Captive cover screws, Two position selector switch (open and close), Three position selector switch (hand, off or auto), 40ºF - 266ºF temperature range, Can be used with any electric actuator (must specify before placing order)
