Setup processes offer lots of opportunities for efficiency improvements, even in modern electronics plants. SIPLACE solutions help you to advance beyond standards family setups with changeover tables or the floating setup approach. Via the perfect interaction of hardware and software you can implement innovative and highly efficient setup processes that meet your requirements and give you a competitive advantage. Best of all, these process improvement pay for themselves quickly, because you profit with every setup changeover. Our experts help you to select and implement the best setup strategies for your production, calculate your ROI based on time and cost savings, and take you to reference customers who already use the respective concepts and solutions.

The ASM ProcessExpert is the world’s first self-learning inline expert system for electronics manufacturing. In perfect interaction the expert system ASM ProcessEngine, the high performance SPI ASM ProcessLens and the DEK stencil printer form the complete ASMProcessExpert pre-placement solution.

The scheduling software for your SMT production; To deliver on schedule, you must be able to plan with time restrictions and keep an eye on setup and non-productive times. That’s why we developed the ASM Production Planner.

Controlling the quality of solder paste deposits or checking for contamination in areas reserved for BGAs is very difficult after they have been placed. On-Board PCB Inspection uses the machine`s PCB camera to check things like paste deposits on solder pads, contaminations on placement area of BGAs or QFPs and positioning of assembled components before shield is placed over. This placement machine option avoids the integration of any inline AOI system between two SIPLACE stations and it minimize defects, avoids unnecessary expenses and ensure best production yield.

Smart process integration in electronics manufacturing is based on powerful hardware and software solutions that work together and can exchange data with each other. New functions and systems can be added and enhanced individually and in stages, coming as close to plug-and-play as possible.In line with this concept, the software and process experts at technology leader ASM have bundled the company`s award-winning software solutions in a powerful entry-level package. With ASM Works, you can now start building the software infrastructure for smart, integrated electronics production with a single package and without having to worry about interfaces, compatibilities and data transfers. The basic package can be enhanced with smart upgrade modules designed to optimize specifi c processes in electronics production. ASM Works thus becomes the cornerstone for your integrated smart factory – convenient and tailor-made for every electronics manufacturer.

Create, verify and optimize placement programs You create your placement programs in SIPLACE Pro – step-by-step, quickly, and easily. Import of individual placement program CAD data Validate your placement program and stimulate the placement process offline with Virtual Product Build and fix any errors long before the first board enters the line Importing component descriptions from online libraries takes only a few clicks. You teach new components directly on the line or offline with the SIPLACE Vision Teach Station. Software wizards optimize the setup and the placement sequence Placement programs created with SIPLACE Pro run on all SIPLACE machines DEK printer programs can now be created offline with ASM Printer Programming and stored in a the central SIPLACE Pro database. Placement and printing programs are now transferred to the line together.

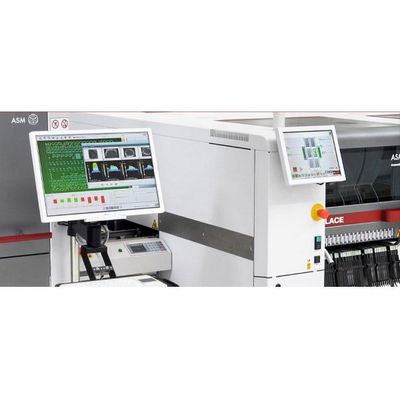

Innovative technologies ensure maximum precision and speed. Integrated high-end solder paste measurement system. Combines 2D and 3D inspection technologies for industry-leading increased measurement accuracy and reliability. Innovative projector chip with 8 million addressable micro-mirrors. Lowest false rate in the industry with absolutely no compromise (zero false accept). Maximum inspection precision leads to a drastic reduction of operator interventions and line stops. Add on the expert system software ASM ProcessEngine for automated process optimization. Available with single-lane or dual-lane conveyor. NEW: ASM ProcessLens reads out inkspot and measures a printed PCB. Status of each panel is whispered to subsequent SIPLACE placement machines and components are placed only on good panels.
