Asset Fluoro systems products

Lined Pipe Spools 1” (25NB) TO 24” (600 NB). Asset Fluoro Systems PTFE Lined Pipe are a type of pipe that are lined with a special material called PTFE, or polytetrafluoroethylene. This material is known for its excellent chemical resistance, high temperature tolerance, and non-stick properties. PTFE Lined Pipe is commonly used in a variety of industries, including chemical processing, pharmaceuticals, and food and beverage production.

PTFE Lined Elbow 1” (25 NB) TO 24” (600 NB). PTFE lined elbows are a type of pipe fitting commonly used in chemical processing and other industries where corrosion resistance is a key requirement. They are manufactured by companies such as Asset Fluoro Systems and consist of an elbow shape made from a metal material, such as carbon steel, with a lining of PTFE (polytetrafluoroethylene) on the inside. This PTFE lining provides excellent chemical resistance and temperature tolerance, making the elbow suitable for use in highly corrosive environments. PTFE lined elbows can also be used in applications where high pressure, vacuum or thermal cycling is present. They are typically used to connect two pipes at a 90-degree angle and are available in a variety of sizes to accommodate different pipe diameters. Overall, PTFE lined elbows are a reliable and cost-effective solution for industries that require corrosion resistance and high durability.

Specification: Flange : IS2062 / A 105, Dimensions as per ASTM B 16.5 150#.  Cone Specification :  Carbon Steel: ASTM A234 WPB, Stainless Steel, ASTM A182 . PTFE Liner : ASTM D 4895.  PTFE — Polytetrafluoroethylene, ASTM D4894 and D4895. PFA — Perfluoroalkoxy, ASTM D3307. PVDF — Polyvinylidene Fluoride, ASTM D3222 and D5575. PP — Polypropylene, ASTM D4101. HDPE — High Density Polyethylene.

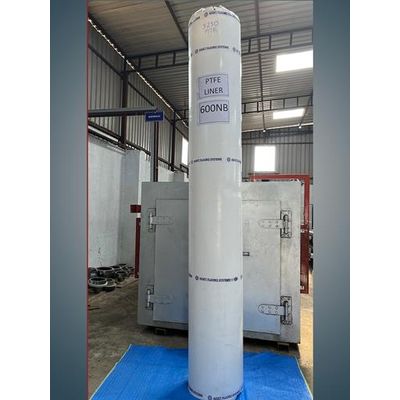

PTFE Seamless Liner. Asset Fluoro System Achieved Extrusion and Sintering of 600 NB PTFE Liner. 600 NB (24") 3.25 mt.

We are Manufacturing PTFE Liners from 20 NB to 600 NB. Ideally used for pipework for reactive and corrosive chemicals.

Asset Fluoro System is manufacturing PTFE Liners as per customer requirement. Special PTFE Liner 10 mm thickness.

Lined Tee 1” (25NB) TO 24” (600 NB). The PTFE Lined Tee manufactured by Asset Fluro System is a pipe fitting that is designed to connect three pipes together. The tee is made from a combination of PTFE (polytetrafluoroethylene) and steel. PTFE is a type of plastic that is known for its excellent chemical resistance, high temperature tolerance, and low friction properties. The steel component of the tee provides strength and durability.

Specification: Flange : IS2062 / A 105, Dimensions as per ASTM B 16.5 150#.  Housing Specification :  Carbon Steel: ASTM A234 WPB, Stainless Steel, ASTM A182 . PTFE — Polytetrafluoroethylene, ASTM D4894 and D4895. PVDF — Polyvinylidene Fluoride, ASTM D3222 and D5575. PP — Polypropylene, ASTM D4101. HDPE — High Density Polyethylene.

PTFE expansion bellows are flexible and lightweight components that are used to absorb thermal expansion or contraction in piping systems. They are made of polytetrafluoroethylene (PTFE), a high-performance polymer with excellent chemical resistance and low coefficient of friction. PTFE expansion bellows are commonly used in chemical processing, pharmaceutical, and food processing industries, as well as in high-temperature and high-pressure environments. They can be designed to handle a wide range of temperatures, pressures, and movement, and are often used as an alternative to metal expansion joints

Asset Fluoro System is bond to give quality, Service, Reliability and on time delivery.  We have developed PTFE expansion bellow In.
