AstralPool - Fluidra products

The Victoria Plus Silent pump for residential pools comes with a 1 hp or 2 hp motor, has variable speeds and can be automatically controlled.

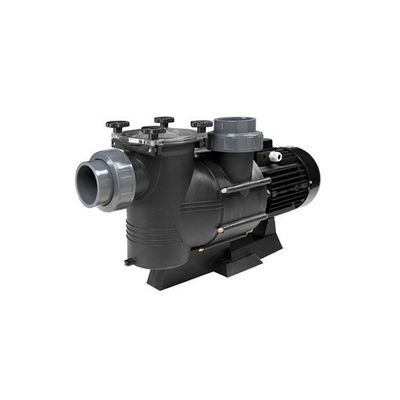

High performance plastic self-priming pump for high flow rates (1500 rpm). 3 power modes: 3 HP, 4 HP and 5.5 HP. Low sound level: as low as 59 dBA Hydraulic efficiency without prefilter 78% (as per ISO 9906 standard). High quality mechanical seal for salt water. IEC high efficiency motors (IE3). Standard motor shaft (compatibility with any pump manufacturer). Product with GS marking Pump comes with pre-filter (in 2 packages: pump + prefilter).

Centrifugal High Flow Plastic pumps at 3000 rpm. · Electropumps for swimming pools, with or without prefilter, ideal for high flow at low pressure. · Prefilter with transparent lid. Fixing by butterfly nut. Easy accessibility. · Pump body and prefilter made in polypropylene reinforced with fibre glass. · Bronze impeller. · Pump shaft and prefilter basket in stainless steel. · Motors with IP-55 protection, 3000 r.p.m., 230/400 V or 400/690 V, and 50Hz. · From 7.5 HP to 12.5 HP.

Selfpriming pump with a range from 1/2 Hp up to 3 Hp, and are provided with both single‐phase motors and three‐phase motors. A pre‐filter has been integrated into the body of the pump. The motors supplied with the motor pump unit have been protected with IP‐ 55 protection and are adapted to external thread Victoria Plus withstand hot atmospheres and high humidity levels. Main features of Victoria Plus Silent are: Low noise level: between 61 dBA – 70 dBA. Easy to use: Pre-filter cover with 2 suitcases included (no key required). Compatibility: 100% compatible with the Victoria Plus pump. It is important to highlight the oversized and high quality front bearing to improve axial forces of the pump.

New generation pump range. Motors from 1/3 HP to 1.25 HP in single-phase and from 3/4 HP to 1.25 HP in three-phase motors. GS marking. IP-55 Motor protection, Class F insulation. All parts in contact with water made of S.S. AISI-316. Ø 50 mm solvent weld fittings for connection. Flow rates given at 6 m head for 1/3 HP, 8 m head for 1/2 HP, and 10 m head for the rest of the range. 3,000 rpm.

The body of the pump is made of the latest generation thermoplastics. The pumps are self-priming and range from 1/2 Hp up to 1.5 Hp, and are provided with both single-phase and three-phase motors. A pre-filter has been integrated into the body of the pump to prevent the entry of any foreign bodies which could cause damage to the hydraulic parts of the pump. The motors supplied with the motor pump unit have been protected with IP-55 protection and are adapted to withstand hot atmospheres and high humidity levels

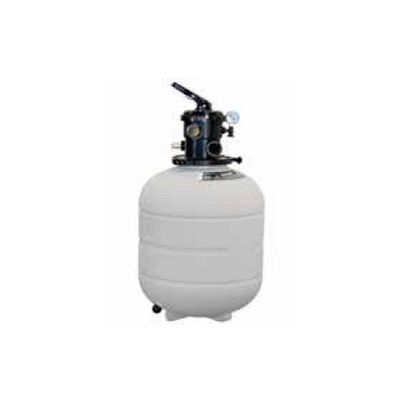

vory colour. Injected thermo-plastic shell with built in base. Supplied with pressure gauge, manual air vent, and multiport valve. Maximum filtration velocity: 50 m3/h/m2.Maximum working pressure: 2,5 kg/cm2.

Body made in two parts, injected with polypropylene (PP) and reinforced with fi berglass. Stainless steel fl ange closing and anticorrosive treatment. With pressure gauge and manual air relief – water purge valves. This body in two parts allows an easier change of sand. Valve sold separately. Maximum pressure of 1,5 Kg/cm2.

One piece blow-moulded filters made in plastic with threaded lif, multiport valve, pressure gauge and manual air vent and water purge. Ivory colour. Maximum working pressure: 2 kg/cm2.
