The Athena F36 Dual PWM to Analog Output Modules accepts PWM digital inputs and converts to 4-20mA, 0-20mA, 2-10Vdc or 0-10Vdc outputs. The PWM inputs can be either 24Vdc or 5Vdc. The input level and output types are both jumper selected. The input signal cycle time period must be 200mS. DIN Rail Mounted Enclosures Power 24Vdc Agency Approvals: cETLus, CE and FCC, CE Class A EMI compliance Foundation DIN Rail Mounted Accessory Modules

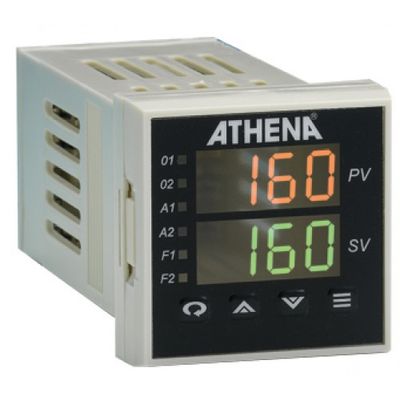

The Athena model 16C is a 1/16 DIN panel mounted, auto tuning controller that can be used for precise control of a single process loop. The model 16C has one input and two independent outputs, which are field configurable as direct acting, reverse acting or alarm; RS-232 or RS-485 communication interfaces are available, and two digital LED displays provide visual indication of the various control functions.

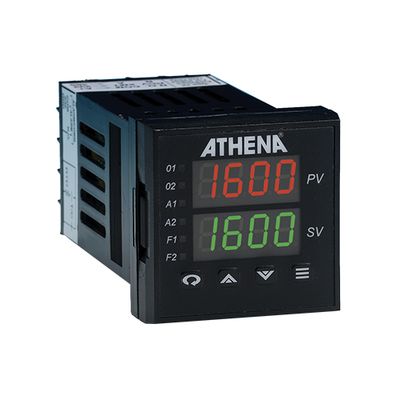

The Athena Legacy Series 16 is a 1/16 DIN panel mounted, auto-tuning digital process controller. It offers precise control of a single loop with two independent outputs. This digital process controller accepts thermocouple, RTD, voltage, or current input. RS-232 or RS-485 communications are available, and two digital LED displays provide visual indication of various control functions. The model Series 16 is the current replacement for the Athena model XT16.

The Athena 4000 is a 1/4 DIN panel mounted, short metal case enclosed controller that can be used for accurate proportional temperature control of most processes. The controller accepts thermocouple or RTD input, and offers a choice of standard single outputs for energizing most common output devices. A single, digital filtered LED display provides visual indication of various controller functions.

These Athena controls are available as 1/8 DIN vertical (model 18C) or 1/8 DIN horizontal (model 19C) models. These panel mounted, digital, PID auto-tuning controls can be used for precise control of a single loop with two independent outputs field-configurable as direct acting, reverse acting, and 2 alarms. RS-232 or RS-485 communications interfaces are available for both models, and two digital LED displays provide visual indication of various control functions.

The Athena embedded Multi-Loop PID Control offers two loops of PID control for less cost than four separate loop controls with similar capabilities.The control offers universal RTD, TC and linear inputs with each PID loop capable of being independently autotuned. The controller has a digital display output port and one expansion port  for optional expansion cards.

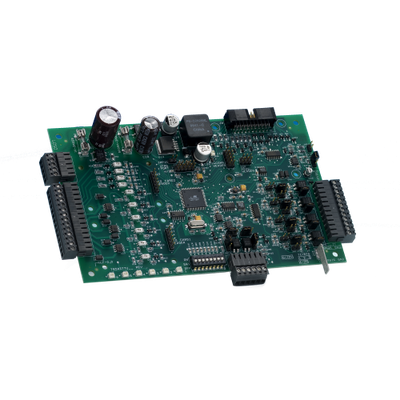

Athena's Foundation Model 40 is an embedded Multi-Loop PID Controller that offers four (4) loops of PID control for less cost than four separate loop controls with similar capabilities. The controller offers universal RTD, thermocouple and linear inputs, with each PID loop capable of being independently autotuned. The controller has a digital display output port and an expansion port for optional expansion cards.

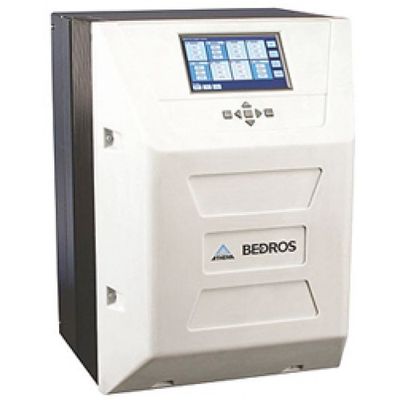

BEDROS hot runner temperature controllers are compact, robust, and deliver more functionality than standard medium-sized multi-zone runnerless controls. Standard BEDROS models offers from 8 to 32 zones of microprocessor based PID temperature control and deliver more functionality with a full-featured, operator friendly touchscreen. The touchscreen has mold storage recipe capabilities that simplify single and multi-zone system set-up.

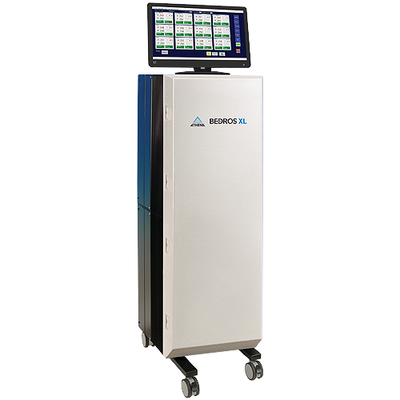

Athena’s Bedros XL offers 36 to 120 zones of control at 15 amps per zone. New updates include a 12” touch screen and a powerful embedded computer running Windows 10 IoT. Our Multi Comm HR software allows the user to manage each zone separately or in groups and offers an intuitive user experience. Loaded with standard features, Bedros XL offers the user a customizable platform to future-proof your process.
