Atilim Makina products

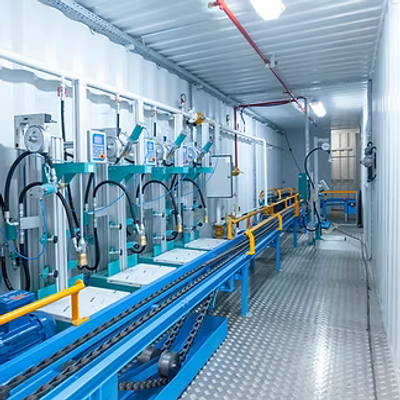

Stand alone filling plant systems are suitable for those who want medium level filling capacity in LPG cylinder filling plants. It offers expandable capacity and the possibility to add other equipment Such as cylinder leakage control systems. Valve shrinking, telescopic conveyors etc.

Features: Applied for 20 and 40 feet containers. Easy and fast way to fill the cylinders. Low-cost and full-capacity filling plant.

These are used to drive the conveyor chains. Body is manufactured from NPU iron steel profile where railings are made from steel pipes. ULPOLEN-1000 is a wear resistant material in the chain belts. They are manufactured in sizes of 3m or else. They consist of return pulleys, pulley-shaft and bearings, conveyor chain, gal chains, chain tension weights, soapsuds pool, motor guard and Ex-Proof motor reducer selected to conform to speed.

Conveyor Chains are manufactured either casted or from steel. The chains work on ULPOLEN 1000 material inside the conveyor. This increases the durability of the chains and allows for more comfortable working.

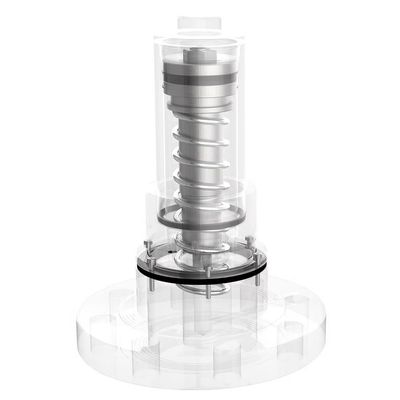

They are used as Remotly Controlled Safety Valves at the fixed LPG storage tanks, spherical tanks or LPG transportation tanks (from 30 m3 to 5000 m3), at liquid or at gas outputs, or at Piping Lines. They can be either placed directly inside the outlet of the tank or outside it by installing them inside a housing case.

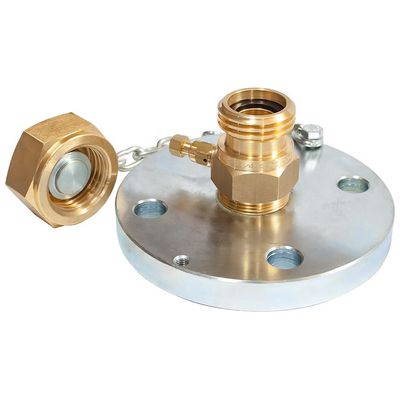

Flange Diameter: 2". Hose Connection (M. ACME): 13/4". Flange Connection (M.NPT): 11/4". ACME Plug (F.ACME): 13/4". Vent Valve: 1/4"
Gasket: NBR. Material:Brass-Steel.

It allows the oil inside it to reach the hydraulic valves by hand pressing and by exerting pressure which forces the hydraulic valves to open and close.

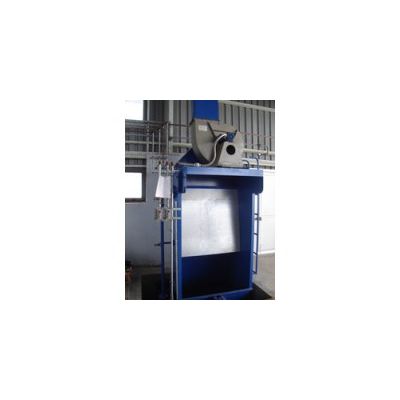

Is used for the painting of the cylinders prior to filling. Manufactured in one or two sided for the household, picnic and industrial type cylinders. Ensures collection of paint waste in the environment; cylinders are painted on the conveyor to ensure saving in time and manpower.

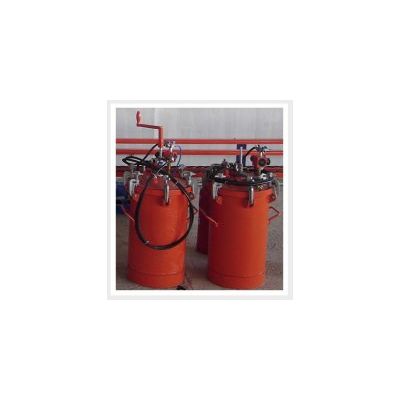

Ensures convenience in preparation and use of the paint of the cylinders. Paint volume is 40 lt.

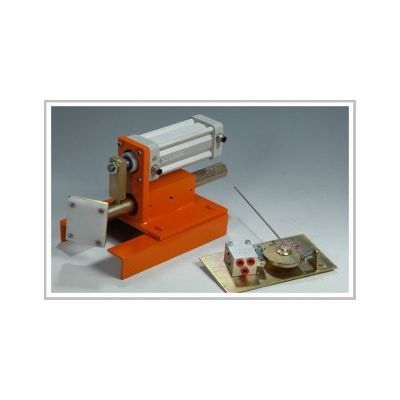

Ensures automatic stopping of the cylinders proceeding on the conveyor at desired points. With air.
