Atkinson Equipment Ltd products

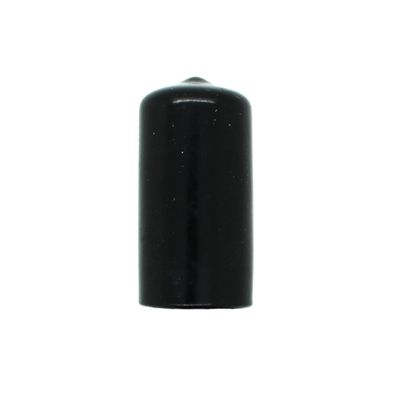

Suitable for use with all sizes of Tankmaster Sight Tubes and all sizes of Push Button Sight Gauges. Tip received and passed on from a customer: Fit a small ball of ‘Scotch-Bright’ into the top of the sight tubing, before fitting the Black Top Cap, to prevent ear-wigs and other insects climbing inside and falling down into the oil, whilst still allowing the sight tube to ‘breath’.

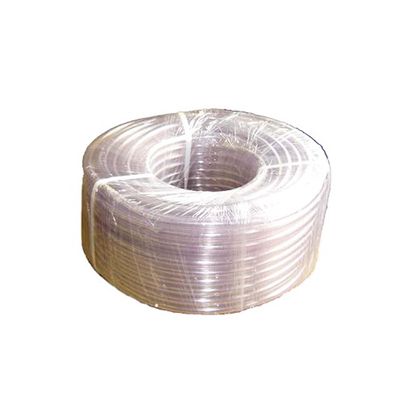

PVC Sight Tubing for use with Tankmaster Sight Tubes and Push Button Sight Gauges. This can be supplied in 60 metre or 30 metre coils as well as in cut lengths.  The price is either per coil or per metre depending on the length you require.

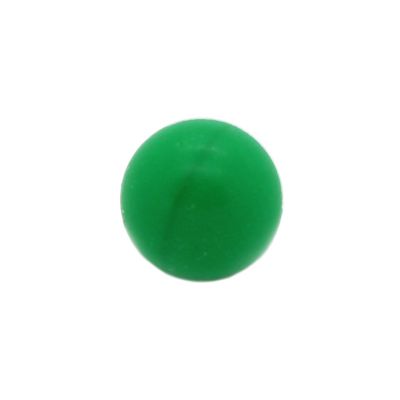

Green Level indicator ball for your oil tank sight gauge. A ground, hollow green ball that floats on Kerosene and diesel, brightly coloured to aid visual indication of your oil level. This product is compatible with both the Atkinson Tankmaster sight tube and the Atkinson Push Button sight tube.

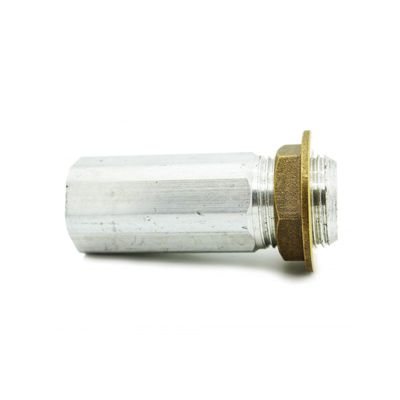

If you are fitting this to a plastic tank the the outlet will be recessed and you will require an extension fitting to ensure the Atkinson Tankmaster Valve does not foul the end of the tank and prevent installation. These are 1″ male BSP with a back nut one end and 1/2″ BSP female the other end for connecting either a Tankmaster Valve or a Push button Sight Gauge.

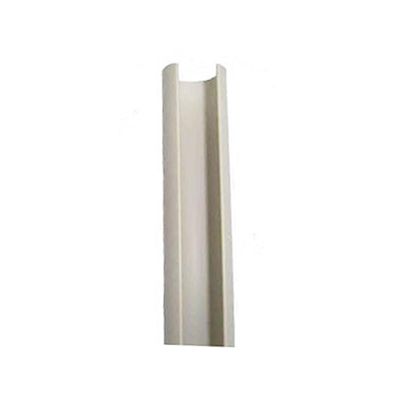

Available in PVC or Aluminium.  The same product is used both for Tankmaster Sight Tubes and Push Button Sight Gauges. This is supplied in 5ft pvc lengths or 6ft aluminium lengths.  Both can be cut to a shorter length if required. Owing to the length of this, it can only be sent out by courier (it is too long to go in the postman’s bag).

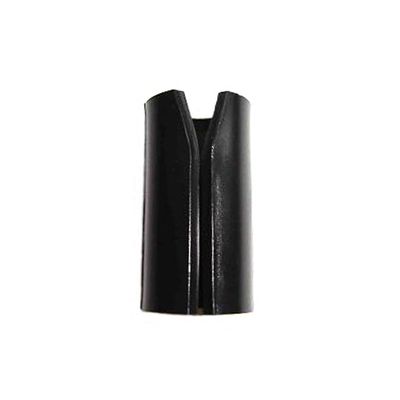

This fits around the base of the PVC Sight Tubing and Sight Shield to keep the PVC Sight Tubing tight on the nipple whilst also providing a nice cosmetic appearance to the completed unit.

This product is required if the existing fitting, which is suitable for 10mm copper pipe, needs to be changed to fit 15mm copper pipe. Suitable for the Tankmaster Mark I and Mark II.

Tankmaster Bolt and Seal for Filter Bowl. Suitable for both Tankmaster Mark I and Mark II. Tip:  The ‘O’ ring seal proved for the bottom bolt must be fitted with the tapered edge uppermost, facing towards the filter bowl.

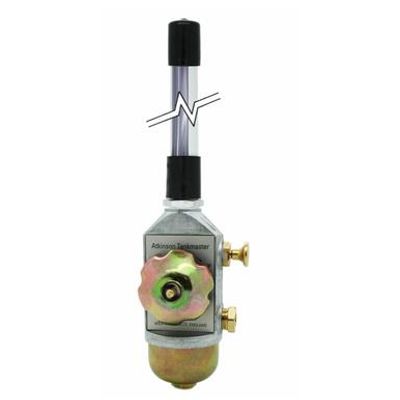

Tankmaster Sight Tubes are supplied with a white UPVC support shield on models up to 5ft and Aluminium support shield on 6ft+ models. Available sizes: 4ft 6″, 5ft, 6ft, 8ft, 9ft, 10ft.

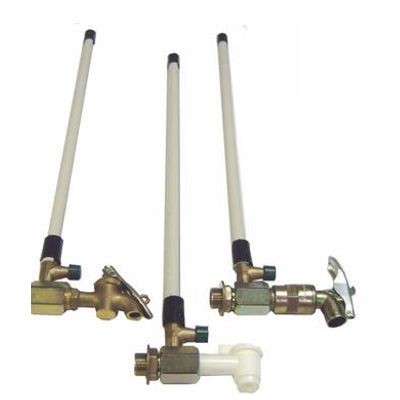

Drum Gauges, for 205 Litre Drums. PVC Sight Tube, PVC Shield, Various Taps Available. For oils, fuels, and other thin viscosity liquids which are not aggressive to the gauge’s component materials.
