Atlantic Ultraviolet Corporation products

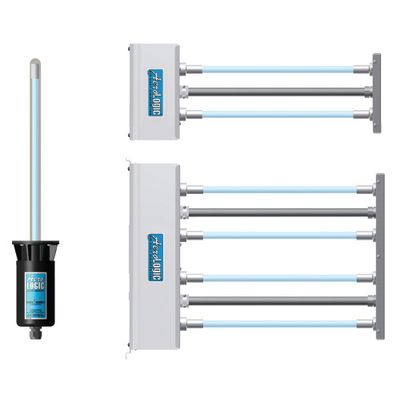

Fixtures may be mounted into new or existing duct systems. Constructed of corrosion-resistant Stainless Steel.

Constructed of corrosion-resistant Stainless Steel. Utilizes germicidal ultraviolet (uv) lamps. Destroys harmful bacteria, mold and viruses in the air.

Constructed of corrosion-resistant Stainless Steel and Aluminum. Utilizes germicidal ultraviolet (uv) lamps.

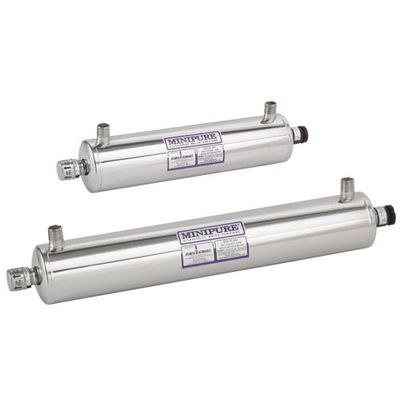

1.5 and 3 gallons per minute (90 and 180 gallons per hour). Compact units require minimal space. Type 316 Stainless Steel Chamber, electropolished and passivated. Utilizes germicidal ultraviolet (uv) lamps.

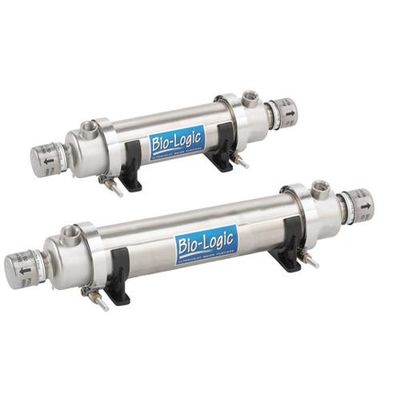

1 to 9 gallons per minute (60 to 540 gallons per hour). Type 304 Stainless Steel chamber, electropolished and passivated. Utilizes germicidal ultraviolet (uv) lamps. Exclusive EASY-OFF™ Retainer Cap for effortless lamp change. LED on transformer provides visual indication of lamp operation. Compact units require minimal space.

4 to 9 gallons per minute (240 to 540 gallons per hour). Type 304 Stainless Steel chamber, electropolished and passivated. Utilizes germicidal ultraviolet (uv) lamps.

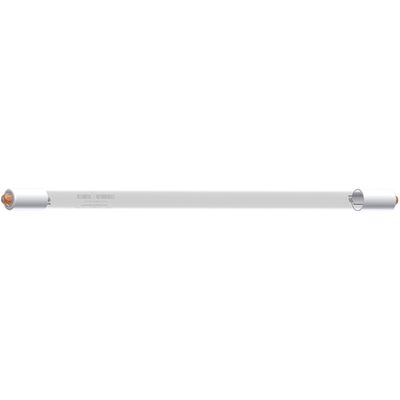

STER-L-RAY Instant Start Germicidal UV Lamps utilize a coil filament on each end which operates hot. Lamp life is governed by the life of the electrodes and is affected by the frequency of starting.

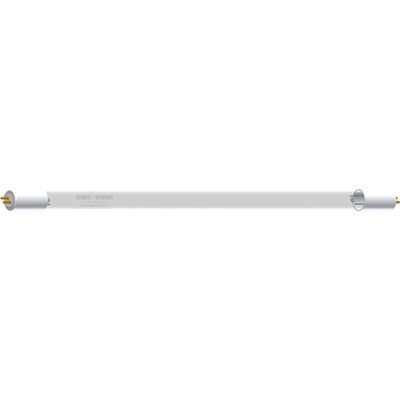

STER-L-RAY® Preheat Germicidal UV Lamps are operated by a preheat start circuit that employs a relatively compact and economical ballast. The preheat circuit requires four electrical connections per lamp and a slight to moderate delay is needed to start the lamp. Some modern electronic ballasts are capable of instant starting a Preheat lamp. Available in Low Ozone and Ozone Producing versions.

STER-L-RAY Cold Cathode Germicidal UV Lamps are instant starting and utilize a large cylindrical cathode instead of a tungsten filament. Due to this construction, the lamp is not adversely affected by frequent starting and the life is considerably in excess of other lamp types. Cold cathode germicidal UV lamps have favorable operating characteristics at reduced temperatures. They are, therefore, widely used in walk-in refrigerators and holding rooms.

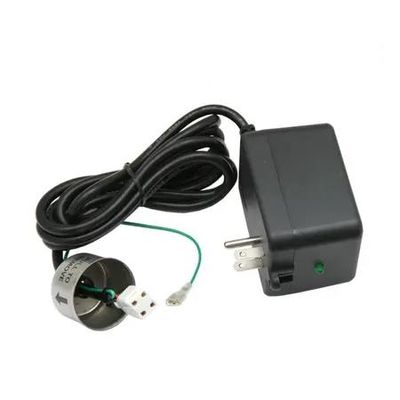

Ballast: MIN-1/MIN-1.5/MIN-3 120v 60Hz Complete/Cord/Plug/Skt/Pull of.
