Auger N.V products
Mechanical Seals - Rubber Bellow Seals

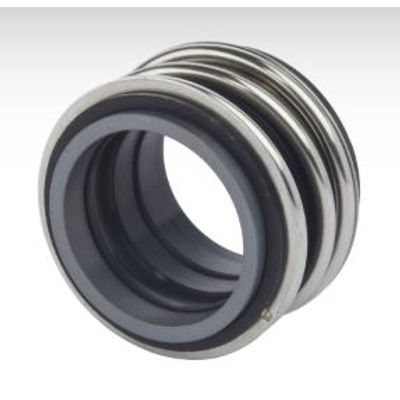

Auger - Model AG1 - Single Spring Rubber Bellow Seal
Ø : diam. 10 - 100 mm. P max : 15 bar. T : -15 ~ 200 °C. Materials : Carbon. Sic Q / Sic Q1. Tungsten. Rubber parts:Nbr/viton/EPDM. Rotation direction : Independant on direction of rotation. Seats : Most common: our type: G6-G60-G4-G40-G9-G50.

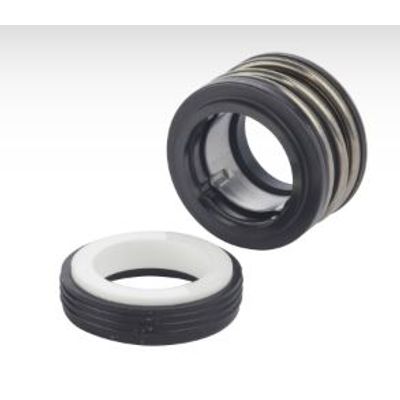

Auger - Model AG12 - Single Spring Rubber Bellow Seal
Ø : diam. 10 - 100 mm. P max : 15 bar. T : -15 ~ 200 °C. Materials : Carbon. Sic Q / Sic Q1. Tungsten. Rubber part:Nbr/viton/EPDM. Rotation direction : Independant on direction of rotation. Seats : Most common : our type: G6-G60-G4-G40-G9-G50.

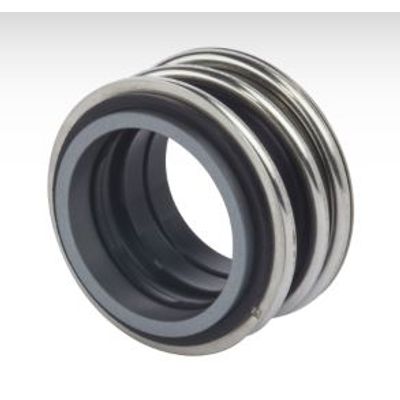

Auger - Model AG13 - Single Spring Rubber Bellow Seal
Ø : diam. 10 - 100 mm. P max : 15 bar. T : -15 ~ 200 °C. Materials : Carbon. Sic Q / Sic Q1. Tungsten. Rubber:Nbr/viton/EPDM. Rotation direction : Independent on direction of rotation. Seats : Most common seats: our type: G6-G60-G4-G40-G9-G50.

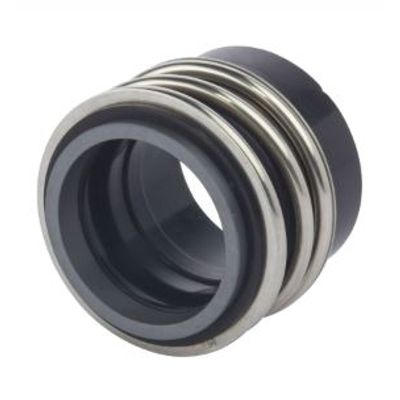

Auger - Model AG1S20 - Single Spring Rubber Bellow Seal
Ø : diam. 10 - 100 mm. P max : 15 bar. T : -15 ~ 200 °C. Materials : Car.bon Sic Q / Sic Q1. Tungsten. Rubbers:Nbr/viton/EPDM. Rotation direction : Independent on direction of rotation. Seats : Most commons seats our type: G6-G60-G4-G40-G9-G50.
Auger - Model AGINCH - Single Spring Rubber Bellow Seal
Pmax : 7 bar. T°C : -15 - 200°C. Rotation direction : Independent on direction of rotation. Materials : Faces : carbon/ceramic. Rubbers-L cup : Nbr/viton.
Process Seals

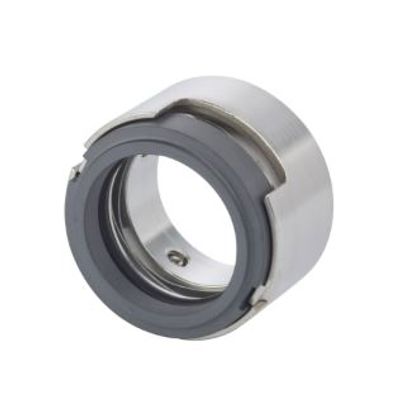

Auger - Model A107 - Process Seals
Ø : diam. 14 - 100 mm. P max : 16 bar. T : -50 ~ 200 °C. Materials : Stainless steel/carbon. Sic/sic.Tungsten/Tungsten. O rings : Nbr/viton/EPDM... Rotation direction : Independent on direction of rotation. Seat : -Standard our type : G9 -Special versions on demand.
Auger - Model A120 - Rubber Diaphgragm Seal
Ø : diam. 10 - 40 mm. P max : 10 bar. T : -20 ~ 180 °C. Materialen : Ceramiek/ Koolstof. Sic/sic. Tungsten/Tungsten. Orings : Nbr/viton/EPDM. Seats : meest voorkomend : GAI - AG DIN.
