Aurora Pump - Pentair Ltd products

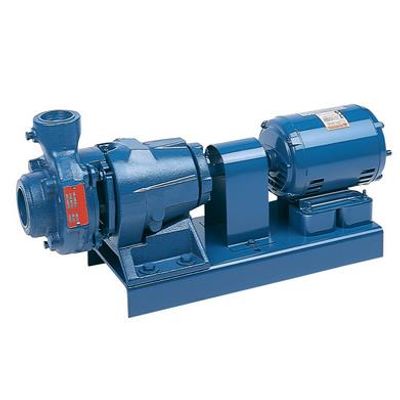

When it`s time to move liquid from place to place, the Aurora 3800 Series is game. Here are just some of the features of these industry-leading pumps:

Low Noise Level with Aurora Close Coupled Motors. Vertical Center-Line Discharge Makes Pump Self-Venting, Avoids Vapor Locks and Minimizes Pipe Strain. Case Wearing Ring Prevents Wear on Casing and Easily/Inexpensively Replaced.  Enclosed Impellers Provide Highest Efficiency and Lowest Wear for Long Service Life. Variety of End Suction Configurations Available Including Close-Coupled, Flexible Coupled, Horizontal or Vertical-Mounted Pumps. Applications Include: Hot Water Circulating Pumps, Cooling Tower Makeup, Boiler Feed Service, Transfer Service, TV & Radar Tube Cooling.

Low Noise Level with Aurora Close Coupled Motors. Vertical Center-Line Discharge Makes Pump Self-Venting, Avoids Vapor Locks and Minimizes Pipe Strain. Case Wearing Ring Prevents Wear on Casing and Easily/Inexpensively Replaced. Enclosed Impellers Provide Highest Efficiency and Lowest Wear for Long Service Life. Variety of End Suction Configurations Available Including Close-Coupled, Flexible Coupled, Horizontal or Vertical-Mounted Pumps. Applications Include: Hot Water Circulating Pumps, Cooling Tower Makeup, Boiler Feed Service, Transfer Service, TV & Radar Tube Cooling.

Low Noise Level with Aurora Close Coupled Motors. Vertical Center-Line Discharge Makes Pump Self-Venting, Avoids Vapor Locks and Minimizes Pipe Strain. Case Wearing Ring Prevents Wear on Casing and Easily/Inexpensively Replaced. Enclosed Impellers Provide Highest Efficiency and Lowest Wear for Long Service Life. Variety of End Suction Configurations Available Including Close-Coupled, Flexible Coupled, Horizontal or Vertical-Mounted Pumps.

This product has been discontinued and replaced by the 3800 Series End Suction Pump.

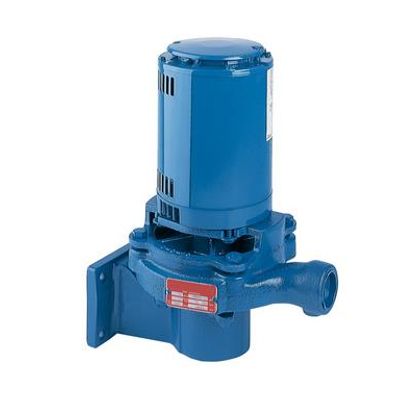

A superior commercial in-line pump based on the established Aurora Pump 320 Series has successfully met the severest demands of high temperature condensate service and boiler feed applications. The 326A in-line`s rugged design is engineered specifically for commercial applications, giving it the advantage over competitive models.

Capacities to 4500 G.P.M. (1020 M3/HR). Heads to 370 feet (78 meters). Temperatures to 250°F (121°C). Bronze-Fitted Construction. Stainless Steel Shaft. Dynamically-Balanced Impeller. Casing Wear Rings. 303 Stainless Steel Mechanical Seal with Buna-N, Ceramic and Carbon Parts. Factory Hydro Test.

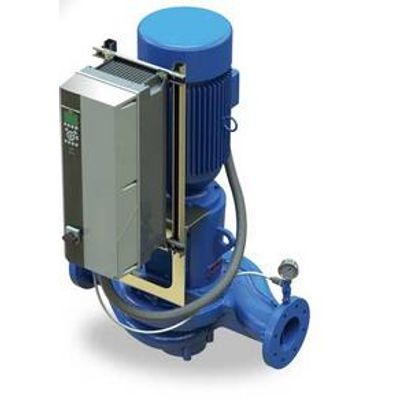

Today’s room space constraints are more challenging than years ago. Pentair Aurora Vertical In-Line Pumps are specifically designed for mounting directly in a pipeline and to reduce the space required in a pump room; two pumps fit in the space of one. These modern pumps with a clean, straightforward and updated design were developed with upgraded materials of construction and a simplified offering without limiting ranges of head and capacity requirements. These pumps not only feature shared hydraulics and premium materials as standard offering, but also offer industry leading durability.

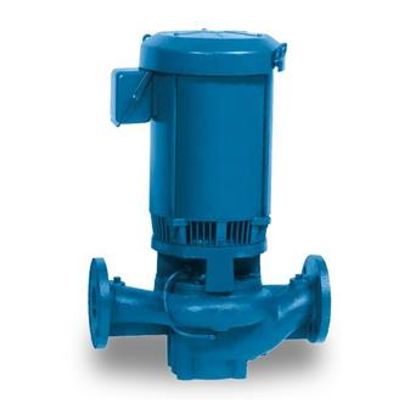

Vertical Inline Close Coupled Pumps are specifically designed for mounting directly in a pipe line. The suction and discharge nozzles are located on the same centerline 180º apart. Vertical pumps significantly reduce the space required; two pumps fit in the space of one. They are easy to maintain; simply remove the capscrews and the motor and bracket assembly is easily removed from the casing without disturbing the piping.

More than 90 years ago, Aurora Pump built it`s business with these reliable and long-lasting pumps. We are still building on our legacy of quality design and manufacturing today.
