AUT Solutions Group LLC products

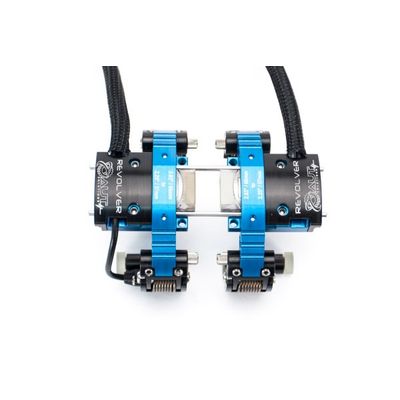

Simplicity is the key with the Revolver, you simply select the band and wedge size as required, and within minutes you are ready to scan; no complex setup or templates are required, just snap the scanner on the pipe and scan away. All Revolver components are machined from high grade aluminum and have an anodized finish to ensure long life and durability. Users can configure the Revolver for a single side phased array inspection or dual for complete weld coverage. The encoder used is rated to IP68 and is designed to operate in many types of industrial conditions. The Revolver Scanner was designed to inspect small diameter pipe/tube welds, ranging from 0.80” inches to 4.50” [20mm-115mm], and has a low profile height to operate between obstructions as low as 0.625” [16mm], such as boiler tube inspection.

The AUT Solutions HandScan is a low-cost tool for performing single axis encoded scanning. Small in size and simple to use, the HandScan allows the technician to set up quickly and easily. The Dual Force clamping system is effective at holding wedges up to 56mm wide. With 5 different encoder positions available, including 2 for transverse scanning, the HandScan fits nearly anywhere and on most surfaces. The encoder wheel is magnetic, for use on ferrous material applications. It features a soft contact tread, making it ideal for non-ferrous materials, including carbon fiber and aluminum. The IP68 waterproof RME encoder is replaceable and comes with an exclusive AUT lifetime warranty. Optional length encoder cables are available ranging from 5m, 15m, and 30m.

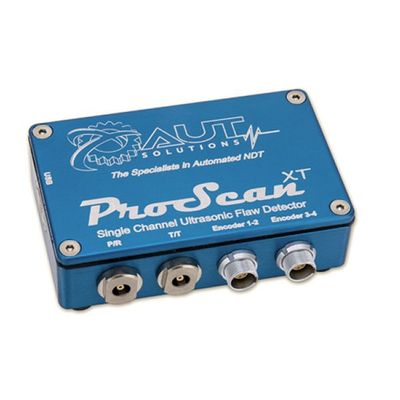

Smallest and most powerful single-channel Ultrasonic Flaw Detector with 2 axis encoding. The ProScan is a USB-powered single-channel high-speed acquisition system with advanced ultrasonic tooling and visualizations. The ProScan delivers high end performance while remaining user-friendly and cost effective. The software includes A-scan, B-scan, C-scan, 3D and new 4D displays specifically designed for Corrosion Mapping, Time of Flight Diffraction (TOFD) for weld inspection, and Short Range Guided Wave (SRGW).
