Auto-Klean ltd products

auto-klean® 02A self-cleaning filters operate on the edge-filtration principle and are of all-metal plate-type construction.

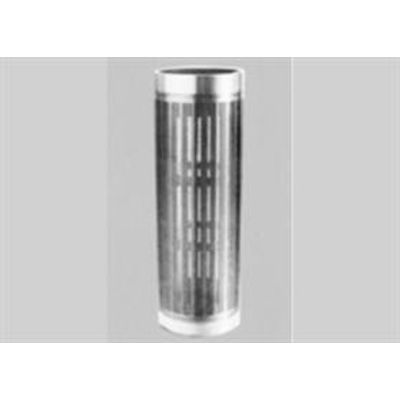

auto-klean® lolos® LN filter elements of the screw-type are all-metal wire-wound construction. They consist of a round-sectioned wire firmly wound on to a central former and locked by a special method to ensure that it cannot become loose. The liquid flow is from the outside to the inside of the element and all solids larger than the predetermined mesh are trapped on the external surface.

Auto-klean® fluxflo® filters are a range of fully automatic self-cleaning units of advanced design providing clarification to micronic limits. The filter consists of a number of elements arranged concentrically in a single body. Auto-klean® fluxflo® filters are supplied in modular form complete with sediment tank, secondary filter, ancillary pumps and instrumentation. These filters are designed for fully automatic operation in unmanned installations. Manually controlled models are also available if required.

The auto-klean Hydro-cyclone seperator is a low cost means of significantly removing solid debris from fluid systems.

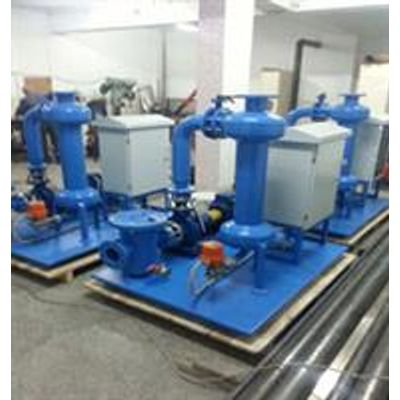

The Eliminators, motorized, automatic, self-cleaning strainers by Fluid Engineering, provide continuous debris removal from fluid piping systems that demand full time uninterrupted flow. The Eliminators are particularly effective in fluid applications where unattended service high solids loading andtor uninterrupted flow requirements deem a basket strainer and its attendant maintenance problems impractical. Any of the Fluid Engineering 700 Series Strainers, applied correctly, will prove efficient and cost effective compared to simplex/duplex strainers or other automatic straining systems.

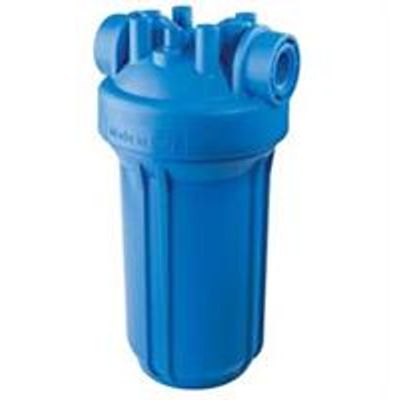

20” Large Diameter blue filter cartridge housing 1” BSPF ports complete with mounting bracket & sump spanner.

Standard Diameter (63mm). Available only in boxes of 25.

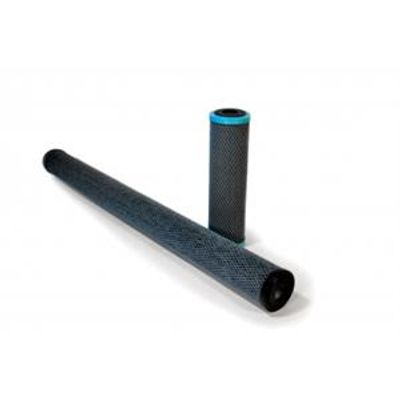

Standard Diameter (68mm). 5.0um extruded block cartridge ‘sintered’ high capacity taste & odour reduction.

20” standard Diameter clear filter cartridge housing 3/4” BSPF ports complete with mounting bracket & sump spanner.

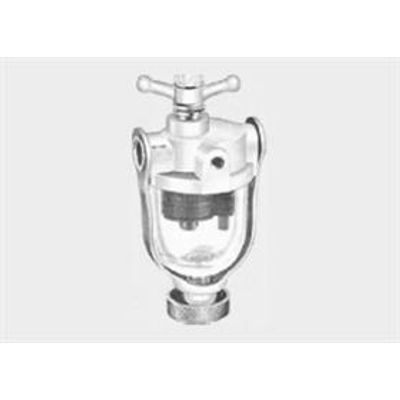

We manufacture and supply a wide range of Simplex strainers for a variety of industries. Please call on 03303 320671 or email us at sales@auto-klean.com to discuss your requirements or for more information.
