Corrosion Chambers - Salt Corrosion Equipment

Walk In Salt Fog Corrosion Test Equipment

The Auto Technology Company Standard Salt Fog Cabinet is the basic unit that has served the testing community for over 50 years. Constructed of steel and utilizing a water jacket temperature control system these units are designed to provide the user a robust, simple design to handle the traditional test specifications like ASTM B117 (Salt Fog), Mil-Std-883, Method 1009.5, G85 A1 (Acetic Acid), B368 (Cass), Mil-Std 810D, Method 509.2, and more. All Auto Technology Salt Fog & Humidity chambers come standard with the following features. They are included in the base price of the chamber. Additional options can be purchased to customize a chamber for your specific needs.

Salt Fog Cabinet

Standard Salt Fog CabinetsSalt Fog Cabinet: The Auto Technology Company Standard Salt Fog Cabinet is the basic unit that has served the testing community for over 50 years. Constructed of steel and utilizing a water jacket temperature control system these units are designed to provide the user a robust, simple design to handle the traditional test specifications like ASTM B117 (Salt Fog), Mil-Std-883, Method 1009.5, G85 A1 (Acetic Acid), B368 (Cass), Mil-Std 810D, Method 509.2, and more. All Auto Technology Salt Fog & Humidity chambers come standard with the following features. They are included in the base price of the chamber. Additional options can be purchased to customize a chamber for your specific needs.

Equipment Parts Store

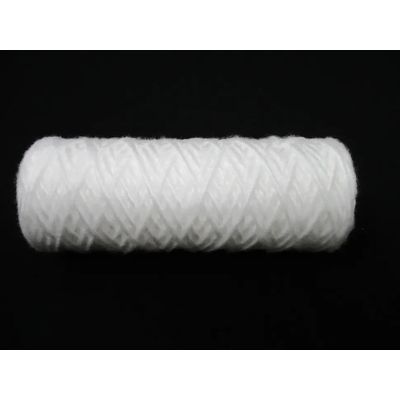

Model C260550 - Filter Cartridge-20 Microns

C260550 – FILTER CARTRIDGE-20 MICRONS – The purpose of the solution filter is to prevent impurities or un-dissolved salt, that could cause a blockage to occur. This 20 micron filter prevents particles larger than 20 microns from leaving the tank. This filtering ensures that the salt solution solenoid, or atomizer nozzle(s) are not blocked from contaminants or un-dissolved salts in the solution tank. This removable filter element must be changed once a year during annual maintenance. The filter should also be changed during the year, once monthly or as needed based on use. Works with all Harshaw, Engelhard, Atotech USA, Atlas and Auto Technology Company fog and cyclic corrosion test chambers.

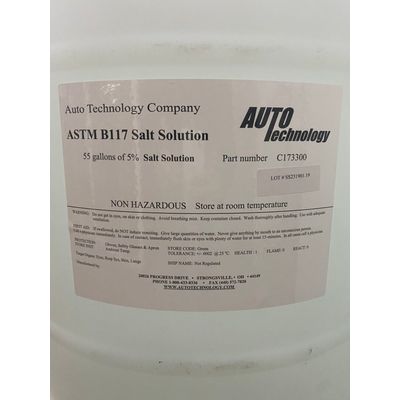

Model C173300 - 5% Salt Solution – 55 Gallon Drum

C173300 – 5% Salt Solution – 55 gallon drum -Works with all Harshaw, Engelhard, Atotech USA, Atlas and Auto Technology Company fog and cyclic corrosion test chambers. Test Method/Application: ASTM B 117.

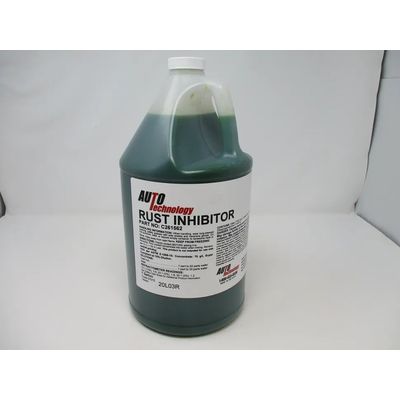

Model C261562 - Rust Inhibitor 1 Gal

C261562 – RUST INHIBITOR 1 GAL – All salt fog and humidity corrosion chambers with a steel construction must have rust inhibitor in the water jacket to ensure proper operation and longevity. Auto Technology rust inhibitor has a specific formulation for this type of application. Substitutes such as antifreeze will not protect the equipment, and will void any warranty. This rust inhibitor is a concentrate that is to be mixed with standard tap water in the water jacket, per the information below. It is very important to use only tap water, as other types of water such as deionized water will damage the steel structure of the equipment. The different size chambers require a different amount of rust inhibitor based on the size of the space in the water jacket. Rust inhibitor should be added to the water jacket of the chamber as it evaporates. This solution level should be checked on a monthly basis using the water jacket sight gauge.
