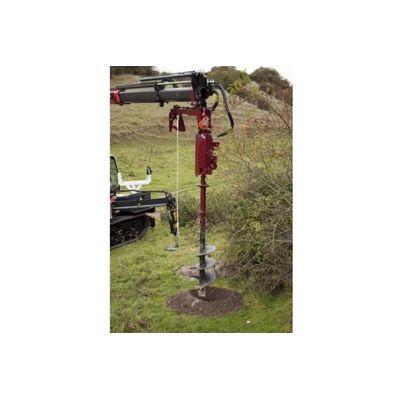

The Autoguide 50,000 PXV is used throughout the utility industry for installing large LV and HV poles. As standard, the unit is supplied with an 18” Rock Ripper auger offering great performance in all conditions. With the addition of an anchor driver the auger can be easily changed to install screwed stays or PISA anchors. The hydraulic fold up bracket offers a fast and safe system for storing the auger unit along the crane boom or in the bed of the lorry. The addition of the Quick Hitch allows full utilisation of the crane capacity, if required, by simply removing the whole auger drive and powerhead from the boom in seconds. Attaching the unit is also very quick allowing the whole vehicle to be utilised as a multi tool.

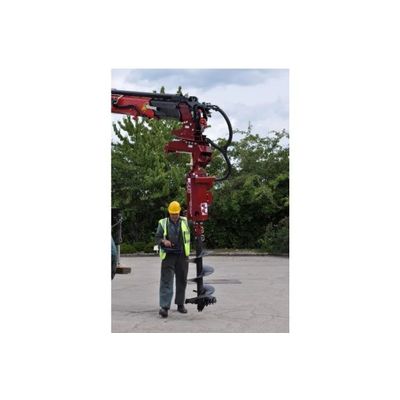

The Autoguide 40,000 PXV is widely used throughout the telecom and utility industry for installing telecom and LV poles. As standard, the unit is supplied with a 12” Rock Ripper auger offering great performance in all conditions.

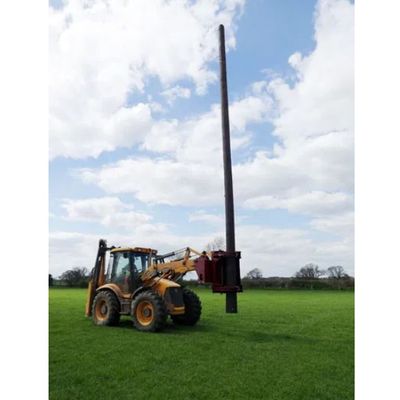

The Autoguide Utility spec excavator powerhead package 40PX has been widely recognised in the telecom and Electricity industry for many years. The unit allows the plant operator to utilise both the speed of augering for pole planting along with the ability to also install the screwed stays. This robust fixed speed unit fits all makes and models of excavator and backhoe from 5– 8T and increase pole planning efficiency over the standard buckets

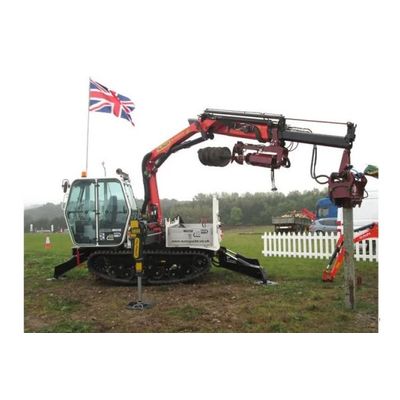

The TC600 is a track mounted carrier for loader cranes and work platforms, aimed at utility companies. The 7.5 tonne tracked TC600 Terrain Master has rubber tracks and has been specifically designed to carry either a nine metre/tonne loader crane or a 15 metre aerial work platform. It has a top speed of 11kph and is available with full radio remote control and side, front and rear stabilisers. The unit also features a 4,500kg capacity electric winch and a charging station for the remote control batteries.

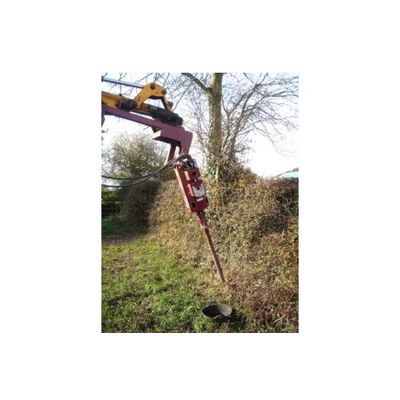

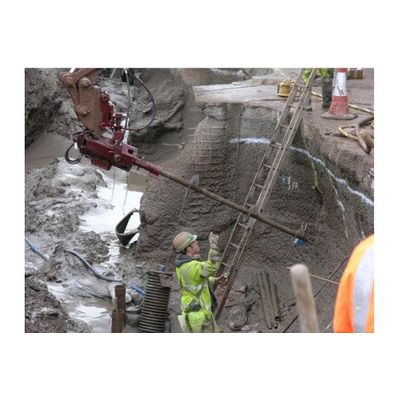

Autoguide`s range of Torque Heads for Screw Pile installation include both hand-held and excavator versions. Autoguide also design and manufacture custom and large Torque Heads such as the 210XV, the largest in Europe. These market leading torque heads are ideal for installing ABC Anchor`s Screw Piles.

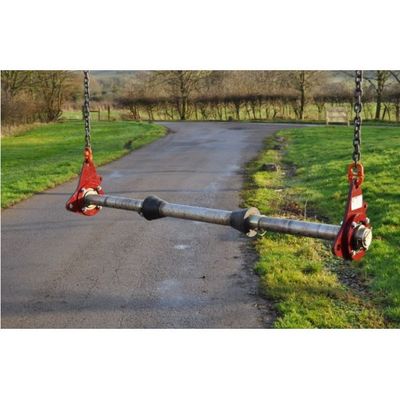

Designed for the safe lifting and handling of cable drums and cable laying applications. The light weight bar allows easy assembly through the drum centre while all other parts are lifted into place with plant. A simple pin in position couplers with adjustment allows the drum to be held on the bar ensuring controlled rotation. Four standard units allow a large variety of drums to be carried

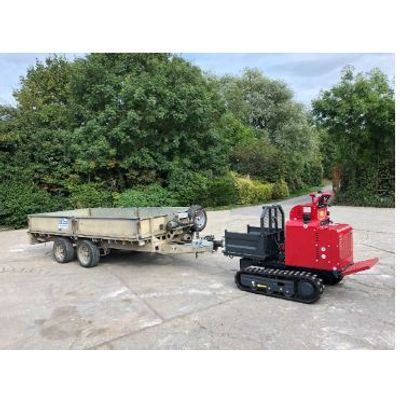

This Hinowa Track Base is fitted with an Autoguide Winch System and has been designed for a wide variety of uses within the forestry and leisure industries. It has a compact design for easy transportation and accessibility. It is ideal for moving fallen trees and transporting large lengths of timber to areas more suitable for logging. For the leisure industry, it can be used for moving trailers/caravans etc. and for the launch and retrieval of pleasure boats. For general use, practical design elements provide a safe and easy way to transport equipment and materials.

The Autoguide front loader grab has been designed with the utility contractor in mind, incorporating a large diameter pivot bearing, dual rams and an electric control for the changeover of functions.
