Autoquip Corporation products
Custom Lifts
Autoquip - Custom Lifts
At Autoquip, we focus on developing and implementing the latest design, technology, and production techniques into every lift we build. Our highly skilled team of engineers and technical experts have maintained a reputation for taking on diverse specialized projects and delivering exceptional results. Whether you need your lifts to be mobile, high-cycle, automated, or particularly sized and configured, Autoquip has the most customizable capabilities to craft the right lift for you.
Standard Lifts - Scissor Lift Tables
Autoquip - Model Series 35 - Scissor Lift Tables

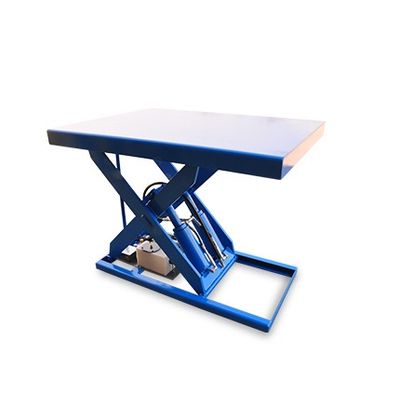

The Series 35 Scissor Lift Tables are designed and built to provide long-service life, durability, and outstanding lifting power. We offer a large selection of models suited to fit most applications, such as pallet handling, parts assembly, and ergonomic work positioning. Series 35 models range in travel from 24″ to 60″ with lifting capacities up to 15,000 lbs. We offer many options and accessories to expand the versatility of your lift table – controls, portability set, accordion skirting, turntables, and more.
TorkLift - Heavy-Duty Lift Table
Every Torklift scissor lift comes standard with captured rollers, two-piece self-aligning cylinder, one-piece axle pins, and high impact spiral wound bearings giving our customers the absolute most rigid, robust, and longest lasting heavy-duty scissor lift available. Standard models can be purchased, but versatility and a vast number of models and options make TorkLift scissor lift tables exceptionally customizable to individual applications. Travel ranges from 24″ to 72″ and capacity ranges from 2,200 to 20,000 lbs.
Standard Lift - Turn Tables
Autoquip - High Capacity Powered Turntable
High capacity ring-bearing turntables safely rotate a wide variety of heavy loads from zero to 360 degrees, in one or both directions at constant or variable speeds. Due to the ring-bearings being rated for high eccentric loads, these turntables are ideal for off-centered loading conditions. The heavy-duty design of powered industrial turntables has been developed to withstand the demands and abuses of an industrial environment, with common applications including conveyor systems, metal processing, heavy load positioning, and other automated systems. Note: Turntable & Scissors lift table sold as separate units.
Autoquip - Model 35 Series - Manual Turntable
The Series 35 Manual Turntables enable workers to easily rotate heavy loads. The heavy-duty design of these manual industrial turntables is specially engineered to withstand the demands and abuses of an industrial environment. Double-row ball bearings in each roller creates the lowest turning forces in the industry, and when used with an Autoquip scissor lift table, these industrial turntables further enhance both ergonomics and productivity.
Standard Lift - Freight Lifts – Vertical Reciprocating Conveyors
Autoquip - Model VRC - Hydraulic Cantilever Freight Lift
The carriage of the 2-post cantilevered hydraulic freight lift is cantilevered off the guide beams which means there are no overhead restrictions that can limit the amount of load height. More travel is achieved by a 4:1 cable reeving system that minimizes stress in the lifting cables which maximizes the amount of travel produced per inch of cylinder stroke. Our standard models are designed to travel 192 to 360 inches with capacity from 3,000 to 6,000 pounds. If you don’t see the model size you need, please contact us to talk about your application specifications – we can build it.
Autoquip - Model VRC - Hydraulic Freightlite Lift
A Top Choice for Lightweight Material Handling, Inventory and Storage. The FreightLite is a proven winner. It’s made to smoothly and economically move lightweight loads weighing up to 3,000 lbs. from one level to another – typically to and from a mezzanine. Direct acting cylinders support the lift carriage and load for a consistently steady travel. The FreightLite is one of the best values in the industry. There is no pre-installation required and set-up is quick and easy.
Autoquip - Model VRC - 2-Post Hydraulic Straddle Freight Lift
The carriage on the 2-post hydraulic straddle freight lift is straddled between two beams allowing carriage sizes to be bigger for your material loading and transfer. More travel is achieved by a 4:1 cable reeving system that minimizes stress in the lifting cables which maximizes the amount of travel produced per inch of cylinder stroke. Our standard models are designed to travel 192 to 360 inches with capacity from 3,000 to 6,000 pounds. If you don’t see the model size you need, please contact us to talk about your application specifications – we can build it.
Standard Lift - Dock Lifts
Autoquip - Model PLT - Convenient Dock Lift
PLT Dock Lift, formerly known to our customers as PLTC has changed model names to accommodate broader options within our standard specifications. We have more capacity ranges and platform sizes available to tackle most dock lifting needs. The PLT Dock Lift is primarily for pit mounting and extends grade level for fork truck loading and unloading.
Autoquip - Model PDQ - Portable Dock Lift
Portable, medium capacity PDQ Dock scissor lifts feature an exceptionally low 4 1/2″ profile. PDQ models offer a 60″ x 84″ platform size with capacities from 4,000 lbs. to 6,000 lbs., and 55 1/2″ of vertical travel. The PDQ is well suited for pass-through dock applications of pallet jacks and hand dollies and is commonly found in the automotive, retail, and grocery industries. Three open platform sides are available, making the PDQ a flexible choice for common loading and unloading tasks.
