AVS Hydraulikmotoren GmbH products
Crane

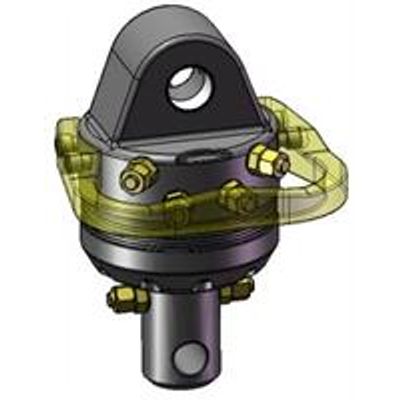

AVS - Model AR-G 50-1 - Crane Hydraulic Rotator
Load axial static: 50 (KN). Load axial dynamic 27 (KN). Torgue: 1100 (Nm. Rotational speed: 18 (U/min.). Rotating max: 320 (bar). Rotary feedthrough max: 320 (bar). Weight: 28 (kg). Cardanic suspension: 10000 (kg).
AVS - Model ARG 50-2 - Hydraulic Rotator for Crane and Gripper Arms
Load axial static: 50 (KN). Load axial dynamic 27 (KN). Torgue: 1100 (Nm. Rotational speed: 18 (U/min.). Rotating max: 320 (bar). Rotary feedthrough max: 320 (bar). Weight: 28 (kg). Cardanic suspension: 10000 (kg).
AVS - Model ARG 60-1 - Hydraulic Rotator for Crane and Gripper Arms
Load axial static: 60 (KN). Load axial dynamic 37 (KN). Torgue: 1300 (Nm. Rotational speed: 18 (U/min.). Rotating max: 320 (bar). Rotary feedthrough max: 320 (bar). Weight: 30 (kg). Cardanic suspension: 12000 (kg).
AVS - Model ARH 70-2.4 - Hydraulic Rotator for Crane and Gripper Arms
Load axial static: 140 (KN). Load axial dynamic 70 (KN). Torgue: 2800 (Nm. Rotational speed: 18 (U/min.). Rotating max: 320 (bar). Rotary feedthrough max: 320 (bar). Weight: 61 (kg). Cardanic suspension: 14000 (kg).
AVS - Model ARB 60-2 - Hydraulic Rotator for Crane and Gripper Arms
Load axial static: 160 (KN). Load axial dynamic: 80 (KN). Torgue: 2800 (Nm. Rotational speed: 18 (U/min.). Rotating max: 320 (bar). Rotary feedthrough max: 320 (bar). Weight: 66 (kg). Cardanic suspension: 16000 (kg).
Excavator
AVS - Model ARG 30-2 - Hydraulic Rotator for Excavator and Construction Machinery
Load axial static: 35 (KN). Load axial dynamic: 18 (KN). Torgue: 1100 (Nm. Rotational speed: 18 (U/min.). Rotating max: 320 (bar). Rotary feedthrough max: 320 (bar). Weight: 20 (kg). Fix connection: 2500 (kg). Cardanic suspension: 6000 (kg).
AVS - Model ARH 70-2.1 - Hydraulic Rotator for Excavator and Construction Machinery
Load axial static: 130 (KN). Load axial dynamic: 60 (KN). Torgue: 2800 (Nm. Rotational speed: 18 (U/min.). Rotating max: 320 (bar). Rotary feedthrough max: 350 (bar). Weight: 49 (kg). Fix connection: 6000 (kg). Cardanic suspension: 14000 (kg).
AVS - Model ARB 60-5 - Hydraulic Rotator for Excavator and Construction Machinery
Load axial static: 160 (KN). Load axial dynamic: 80 (KN). Torgue: 2800 (Nm. Rotational speed: 18 (U/min.). Rotating max: 320 (bar). Rotary feedthrough max: 320 (bar). Weight: 61 (kg). Fix connection: 6500 (kg). Cardanic suspension: 16000 (kg).
AVS - Model ARB 80-1 - Hydraulic Rotator for Excavator and Construction Machinery
Load axial static: 180 (KN). Load axial dynamic: 80 (KN). Torgue: 3600 (Nm. Rotational speed: 18 (U/min.). Rotating max: 320 (bar). Rotary feedthrough max: 320 (bar). Weight: 77 (kg). Fix connection: 8000 (kg). Cardanic suspension: 18000 (kg).
Special
AVS - Model ARG 50-1DD - Hydraulic Rotator for Special Application
Load axial static: 50 (KN). Load axial dynamic: 27 (KN). Torgue: 1100 (Nm. Rotational speed: 18 (U/min.). Rotating max: 320 (bar). Rotary feedthrough max: 320 (bar). Weight: 48 (kg). Cardanic suspension: 10000 (kg).
