AxFlow Limited products

The EP axial ventilator is suitable for the transport of dusty air. Due to its plastic structure and the blade, which is made entirely in resin, it is particularly suitable for use in premises with a high concentration of corrosive pollutants, such as cowsheds, breeding sheds, industrial units, etc.

Long casing fans with double flange and the inspection door, particularly suitable to be channelled and for use in exhaust plants, drying systems, conditioning systems, for tunnel and subway ventilation.

Belts & pulleys long casing fans with double flange and the inspection door, particularly suitable to be channelled and for use in exhaust plants, drying systems, conditioning systems, for tunnel and subway ventilation. Blade material: Diam. 315 through 1000 mm : resin (glass-charged polypropylene), Aluminium Capacity from 600 to 54.000 m3/h Total Pressure up to 130 daPa Temperature of the conveyed fluid: -10°C to +60°C.

These fans are particularly suitable for extraction of polluted air, even damp and/or dusty and they are  specially used in foundries, cement factories, paper mills, joinery works , garages  and public rooms. Moreover, they are used in unit heaters, cooling towers and all the applications where large flow rates and low pressure values are required.

Long casing fan with double flange, are particularly suitable for extraction of polluted air, even damp and/or dusty; they may be installed between channels and are especially used in foundries, cement factories, paper mills, joinery works and garages. Moreover, they are used in unit heaters, cooling towers and all the applications where large flow rates and low pressure values are required. Blade material SPMD from diam. 800 to diam. 1000 mm : resin (glass-charged polypropylene), Aluminium SPMD from diam. 1120 to diam. 1250 mm : resin (glass-charged polypropylene), reinforced resin (glass-charged polyamide), Aluminium SPMD diam. 1400 mm : resin (glass-charged polypropylene) SPMDR from diam. 1120 to diam. 1600 mm :in special heavy-duty Aluminium alloy Diameter sizes SPMD from 800 to 1400 mm. Diameter sizes SPMDR from 1120 to 1600 mm. Capacity from 2.100 to 150.000 m3/h Total Pressure up to 165 daPa Temperature of the conveyed fluid: -10°C to +60°C.

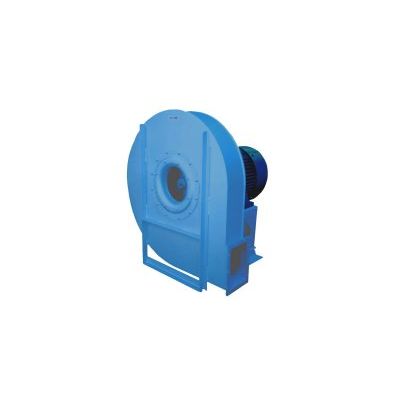

Centrifugal fans suitable for clean or low dust content air in pneumatic conveyance plants. The fans are normally used in the mills, pasta factories, in metallurgical, iron and chemical industries, and in other applications requiring high capacities and medium and high pressure.
The fans are provided with a directly coupled asynchronous three-phase motor, backward blades impeller in welded steel, and a casing in thick galvanized sheet iron. Capacity from 120 to 54.000 m3/h. Total pressure from 200 to 2.000 daPa. Max temperature of the carried air is 80°C, for temperature values up to 150°C the fans will be provided with a cooling fan and will be varnished with high-temperature aluminium paint.

Centrifugal fans suitable for clean or high dust content air in pneumatic conveyance plants or for combustion air of gas burners. The fans are normally used in the mills, pasta factories, in metallurgical, iron and chemical and in other applications requiring low capacities and medium and high pressure. The fans are provided with a directly coupled asynchronous three-phase motor and a forward blades impeller in welded steel, and a casing in thick galvanized sheet iron. Capacity from 120 to 28.000 m3/h. Total pressure from 200 to 2.000 daPa. Max temperature of the carried air is 80°C, for temperature values up to 150°C the fans will be provided with a cooling fan and will be varnished with high-temperature aluminium paint.

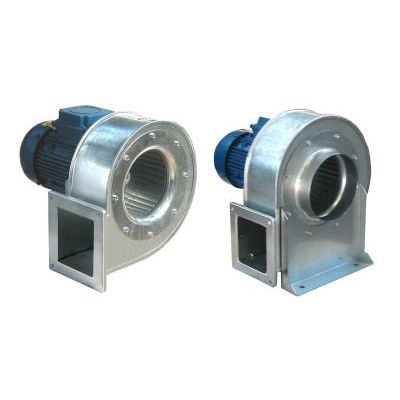

Centrifugal fans for clean or low dust content air, suitable for small suction and ventilation plants, for cooling of electric devices, motors and machine tools. The fans are provided with a directly coupled asynchronous three-phase motor (a single-phase motor on request), forward blades impeller, and a casing in galvanized sheet iron. Capacity from 60 to 2100 m3/h. Total pressure from 5 to 120 daPa. Max temperature of the carried air is 90°C.

Centrifugal fans  for clean or low dust content air, suitable for medium-sized suction and ventilation plants with low load loss, like premises air extraction and/or vapour suction from industrial catering cooker hoods. The fans are provided with a directly coupled asynchronous three-phase motor, forward blades impeller, and a casing in galvanized sheet iron. Capacity from 480 to 2.200 m3/h. Total pressure from 15 to 127 daPa. Max temperature of the carried air is 90°C.

Centrifugal fans  for non humid clean or low dust content air and fumes conveying, suitable for suction and ventilation plants with medium load loss. The fans are provided with a directly coupled asynchronous three-phase motor, backward aerofoil aluminium blades impeller, and a casing in thick galvanized sheet iron. Capacity from 180 to 38.000 m3/h. Total pressure from 20 to 600 daPa. Max temperature of the carried air is 80°C.
