Axis Solutions Pvt. Ltd. products

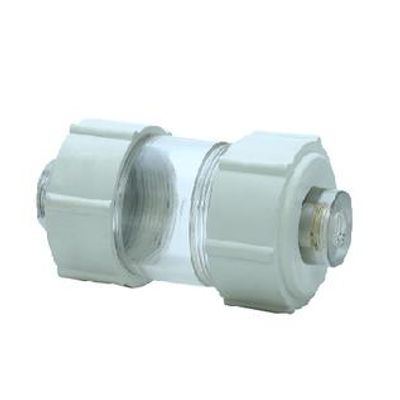

The Reliable & long term operation of any Process Analyser depends upon the efficiency of the sample conditioning system for which dust, solid particulate & moisture free sample gas is essential. Where condensate removal from the sample is a major problem for analyses of gas, the Condensate Catch Port is the best solution.

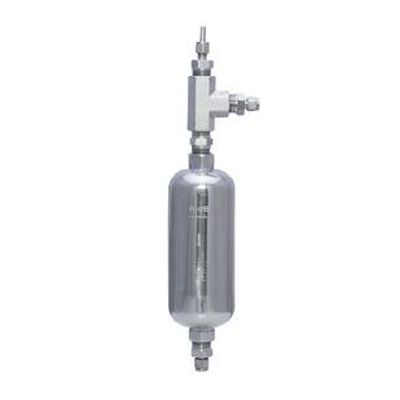

The Reliable & long term operation of any process analyzer depends upon the efficiency of the sample conditioning system for which dust, solid particulate & moisture free sample gas is must essential. Where condensate separation and removal from the sample is a major problem for analyses of gas, Axis CS1 with manual and auto condensate drain option is the best solution.

The basic requirement for Educators is to perform according to the given parameter with trouble-free operations.

Due to the rising global industrialization, the monitoring of exhaust gas is increasingly important. The monitoring of Nitrogen Oxide (NOx) is particularly important due to its role in the formation of ground-level ozone and acid rain. The gas converter module allows easy and cost-effective detection of the NOx components (NO & NO2). The module converts almost 100% of the NO2 content of sample gas to NO by means of the replaceable reactor cartridge. The resulting NO gas is measurable by any commercially available IR-analyzer. The reactor cartridge, designed in cooperation with a research institute, enables the conversion of high NO concentrations at a comparatively low temperature. Interferences from other gases such as CO, CO2, NO are generally not observed.

The Heatless dryers are ideal for low flow air Drying operations. Dryer operation is fully automatic and outlet dew points as low as (-40°C) can be achieved. Heatless regeneration desiccant dryer is designed to protect Pneumatic equipment, controls, and processes, from the harmful and costly effects of moisture in compressed air and natural gas lines. Regenerative desiccant dryers operate on the principle of pressure swing adsorption, where a fraction of dry air or gas is used to regenerate the off-stream tower. No heat or exhaust power is required for desiccant bed regeneration. In natural gas applications, purge exhaust can be diverted to compressor suction or used as fuel.

The reliable and long-term operation of an analyzer system depends upon the efficiency of the sample conditioning system for which a stable dew point of the sample is essential.

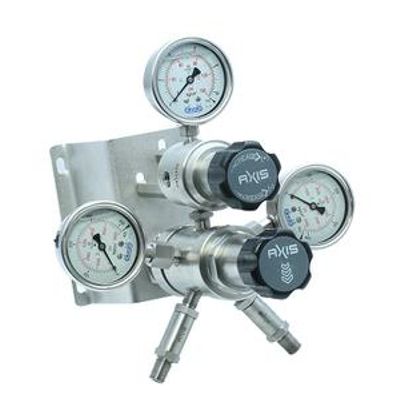

Axis Gas Cylinder Auto change over regulator is designed to deliver continuous flow from the gas cylinder to the further system or it is used when a stable outlet pressure is required. It is equipped with a two-stage pressure control regulator.

The Back Pressure Regulator maintains constant pressure and constant flow for the analyzer simultaneously protecting critical sampling components as a relief valve. A Back Pressure Regulator is a control valve that maintains a set pressure on the upstream side of the valve. If the pressure increases, the regulator opens to allow additional flow through the BPR1 / BPR2.

The Axis Pressure regulator is designed to deliver stable outlet pressure from the gas cylinder to further system. It is a dual-stage pressure regulator. In the first stage of regulation, it regulates the fixed amount of gas pressure and in the second stage, pressure can be adjusted with a knob to achieve the desired system pressure. It is mainly used in Oil and refinery, power, chemical, any type of process industries, and instrumentation sample handling system for all types of Gas media applications. Apart from this, it is used in the critical welding machine process, laser cutting process, etc.

The Reliable & long-term operation of the Steam & water analysis system depends upon the efficiency of the sample conditioning components for which precise pressure, flow, and temperature control is must essential.
