AXON Systems GmbH products

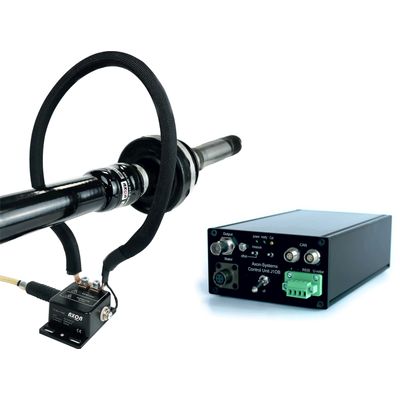

AXON J1DB is a sophisticated digital system engineered for precise strain gauge measurements pertaining to torque, force, and strain on rotating components. The system offers exceptional telemetry for demanding applications due to its digital single-channel strain gauge transmission. Distinctively, it operates contactlessly, enhancing durability by eliminating wear. The integration of an inductive power supply (IPT 4.0) allows for operation in environments with temperatures reaching up to +140°C, ensuring high accuracy even under harsh conditions. A noteworthy feature is the built-in shunt calibration function that allows for convenient system validation and troubleshooting. The system supports both analog and digital outputs, including CAN-bus, facilitating seamless integration with existing technological ecosystems. Monitoring capabilities of rotor voltage and Received Signal Strength Indicator (RSSI) add an extra layer of operational assurance, making the AXON J1DB a reliable choice for technical experts aiming for precision and dependability in their measurement applications.

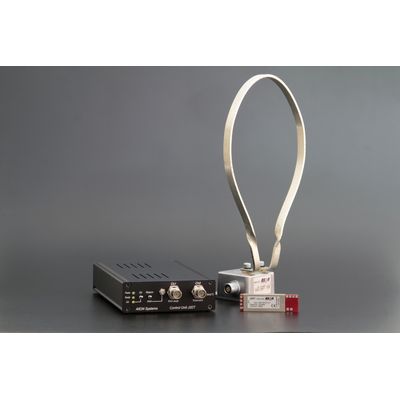

AXON J2D is a compact telemetry system designed for the simultaneous and contactless transmission of two independent strain gauge signals, catering to high-demand environments. It incorporates a unique contactless and wear-free design that ensures consistent and high accuracy under harsh operational conditions. The system operates up to temperatures of +125 °C, which is subject to confirmation, and features an inductive power supply that enhances its reliability and longevity. The AXON J2D includes a rotor unit that captures and digitizes dual strain gauge signals and a stator unit that inductively powers the rotor while receiving the measurement data. Additionally, it includes a control unit that handles power supply management and outputs two analog measurement signals. The system's compact design and focus on analog outputs make it an ideal choice for high-precision industrial applications where durability and accuracy are crucial.

The AXON JXTH is engineered for high-precision, multi-channel temperature measurement in demanding environments, specifically utilizing thermocouples on rotating components. The system supports up to 16 thermocouple channels with an impressive measurement range from -55°C to 1250°C, offering high accuracy through 16-bit resolution. Integrated cold-junction compensation ensures reliable readings, while its contactless and wear-free design enhances durability against thermal, dust, and vibrational stressors. The system features analog and CAN bus output for versatile integration, and an anti-EMC option tailored for e-drive applications further broadens its utility. Key components of the system include the JXTH Rotor Unit for signal capture and data transmission, powered inductively, alongside a Stator Unit that powers the rotor and collects data. The JXTH Control Unit manages power and data outputs seamlessly, ensuring precise control over system parameters.

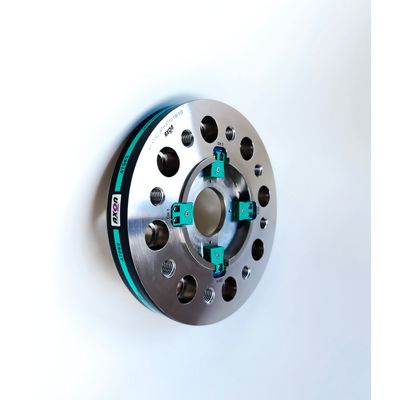

The AXON AT10 is designed to enhance existing test setups with its integration capabilities into high-precision torque measurement systems like the HBM T40. This flange supports seamless telemetry for temperature measurements, addressing complex testing requirements with a Plug & Play installation approach. It accommodates 1-16 channel temperature measurement using Type K Thermocouples, ensuring data reliability through its 16-bit resolution. The device supports both CAN-Bus and analog output options and utilizes inductive power transmission (IPT) for efficient energy management. Its operating temperature range reaches up to +140°C, making it suitable for demanding testing environments. The AXON AT10 is engineered for systems that require precise and accurate temperature telemetry data, ensuring compatibility and performance in high-demand scenarios.
