Ayra Process Controls India Pvt Ltd products
Flow Meters
APC - Electromagnetic Flow Meter for Conductive Liquids
The Electromagnetic Flow Meter by Ayra Process Controls India Pvt Ltd is a sophisticated instrument engineered for accurate flow rate measurement of conductive liquids, operating on the principles of Faraday's law of electromagnetic induction. Its design eliminates moving parts, which significantly reduces the need for maintenance and enhances its durability, making it ideal for challenging industrial environments. The meter supports a wide range of sizes from 15 NB to 600 NB and offers flanged connections compatible with multiple international standards such as ASA, BS, DIN, and JIS. It operates efficiently with a power supply of either 24V DC or 230V AC, and delivers a high degree of accuracy at ±0.5% of Full Scale Deflection. The meter's totaliser features a 10-digit LCD display, while the flow rate display is 5-digit, accommodating pressures up to 40 bar and process temperatures extending to 150°C for PTFE linings. Electrodes are available in various materials including SS 316 and Hastalloy C, with protection levels up to IP66 and optionally IP68.Pipeline Strainers
APC - Basket Type Strainer for Industrial Fluid Systems
A Basket Type Strainer is a crucial element in fluid handling systems, engineered to effectively filter out debris, dirt, and particulates from liquids, gases, or steam. These strainers are built to offer high dirt-holding capacity without frequent maintenance, ensuring continuous operation and protection of downstream components such as pumps, valves, and pipelines. The strainers are constructed with materials such as MS, CS, SS304, SS304L, SS316, and SS316L, and are available in sizes up to 1200 NB. They can be configured with flanged or buttweld end connections, catering to a range of industrial applications. They are widely applied across various sectors, including oil and gas, chemical processing, power generation, and water treatment, where maintaining fluid purity is critical.
Level Indicators

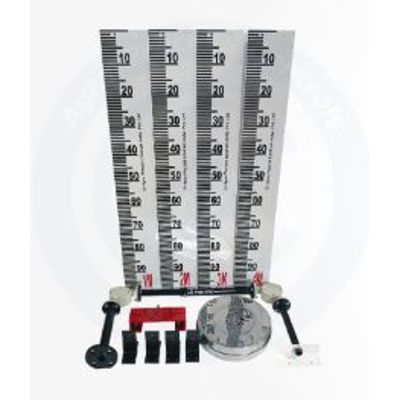

APC - Float & Board Type Level Indicator for Liquid Measurement
The Float & Board Type Level Indicator by Ayra Process Controls is an efficient device designed to measure and monitor the liquid levels in tanks and vessels. Operating on a straightforward mechanical principle, the device comprises a float that moves according to the liquid level, with the corresponding measurement indicated on a clearly graduated board. It can accommodate tank heights up to 15 meters and operates effectively in a pressure range from atmospheric conditions to 5 bar. With the ability to function in temperatures ranging from -40°C to 150°C, the indicator provides accuracy within ±10 mm. This makes it a versatile choice in diverse industries including water treatment, oil and gas, and chemical processing. Its durability and ease of operation make it a preferred choice for reliable level indication in various industrial applications.
Rotameters
APC - Industrial Metal Tube Rotameter
The Metal Tube Rotameter by Ayra Process Controls is a robust flow measurement device tailored for industrial settings, offering precise flow rate readings for liquids, gases, and steam. Engineered for durability, it is well-suited for challenging environments characterized by high pressure, elevated temperatures, and corrosive substances. The design incorporates a tapered metal tube and float system, ensuring reliable and accurate measurements even under demanding conditions. This rotameter supports a size range from 15 NB to 100 NB, with a viscosity capacity of up to 200 cp, and maintains an accuracy of ±2% of full-scale deflection. It can withstand a design temperature of up to 100 kg/cm² and is compatible with various liquid and gas flow applications. With additional features like a 4-20 mAmp transmitter and totalizer, the Metal Tube Rotameter is adaptable, precise, and designed for longevity in industrial operations.Flow Elements
APC - Orifice Plate for Flow Measurement and Pressure Reduction
The Orifice Plate is a fundamental device used in pipelines to gauge flow rates and manage pressure reduction through differential pressure. The principle it operates on involves creating a restriction within the pipe, which results in a pressure drop directly correlated to the flow rate. It is particularly favored across various industries due to its reliability and cost-effectiveness. The Orifice Plate is apt for use with liquids, gases, and steam, offering a precise measurement within ±1% of the flow rate. The device can accommodate a size range from 1 to 24 inches and boasts a pressure rating of up to 150 bar. It is available in multiple material options including stainless steel (both SS304 and SS316), carbon steel, and brass. There are several configurations available, such as the Orifice Plate with Flange Assembly and the Integral Orifice Flange Assembly (SORF), adding versatility to its application.
