Ayvaz products

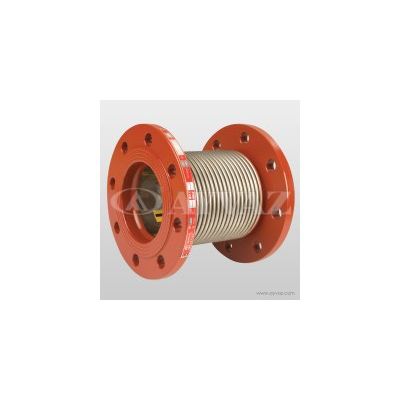

Axial expansion joints aim to absorb the axial expansions. They do not change the direction of the flow. Additional assemblage distance is not necessary. Dividing the pipeline helps to prevent stress of lateral forces.

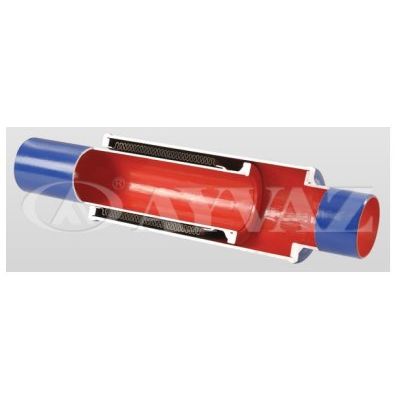

Compensating larger amount of thermal expansions by axial expansion joints are only possible by increasing the number of corrugations of the bellow, but this increases the possibility of torsion. Applying inner sleeves may reduce the torsion but they also reduce the movement ability of the expansion joints. Ayvaz’s Externally pressurized expansion joints provide the most suitable solution for such cases.

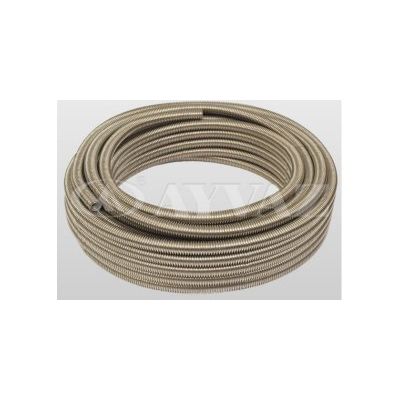

Flexible metal hoses are good choice for steam, water, oil and gas systems with its pressure resistance and flexible body. Some of its functions are liquid line connection, vibration movement and stress absorbing.

Ayvaz Flexible metal hose are good choice for connection of main pipeline to other items. Some of its functions are liquid line connection and stress absorbing.

Full automatic Fantini Cosmi level controller is installed to boiler for water level controlling. Water level is controlled by 3 Hg-contacts with high temperature resistance. Also external control like hands operate is possible for this type of products at emergency. This type level controller has wide setting range which is provided float movement. High movement capacity is supported by its metal bellows. Contact, which is controlled by mechanical parts, is closed circuit for controlling other device.

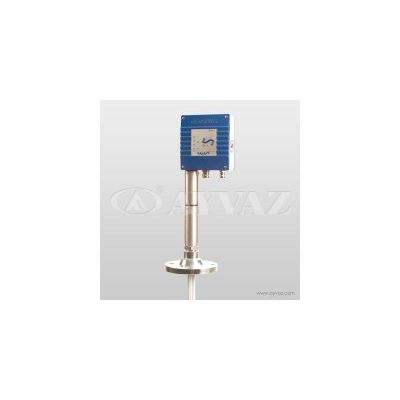

Galaxy Level Electrode unit needs conductive liquid for level controlling. 4 liquid levels are set in production and this level cannot be changed by customer, usually settled level points are;

If the steam traps are not work efficiently they will cause loss of energy.The maintenance of the steam traps is very important to prevent steam escape.This product is designed for testing the system’s steam escape. It is just used for saturated steam. This item provides to test the steam traps.It is advised that KTV-10 should be installed at least 50cm far from stream traps for good results.

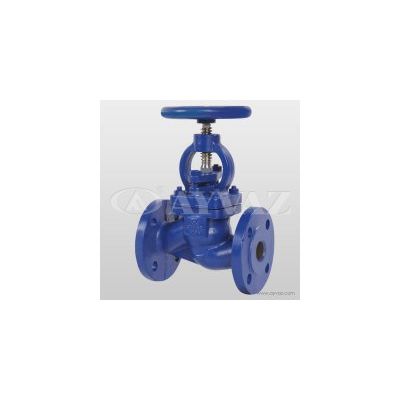

GV-25 globe valves are available to operate at high pressure and temperature. External sealing is provided by gland and internal sealing is provided by seat valve system. Globe valve’s usage areas are water, hot water, steam, hot oil, compressed air and LPG.

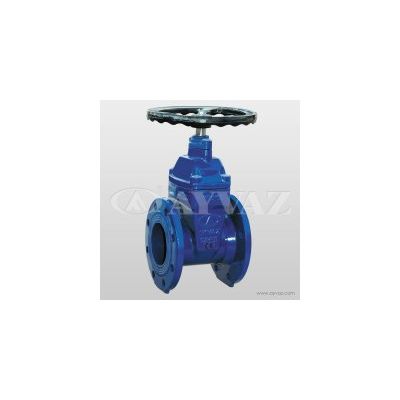

Non rising stem resilient gate valves are designed with rubber coated disc to provide excellent sealing features by the resilient deformation of the rubber. This type of gate valve has been developed in order to prevent the problems of general gate valve such as leakage and rusting also to save installation space by its compact design. Design: Gate valves are named because the part that either stops or allows flow through the valve operates like the opening or closing of a gate. Non-rising stem valve has been designed with a threaded stem which enables the movement of the gate up and down. This type of valves is preferred when a straight line flow and minimum restriction is needed.

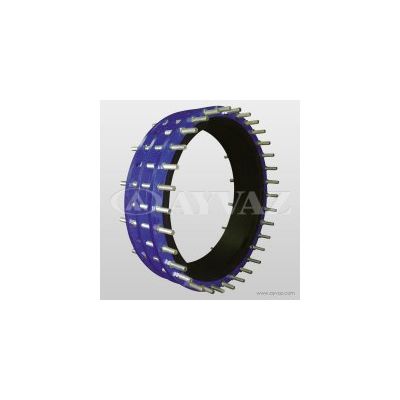

The Dismantling Joints are double flanged fittings that accommodate required longitudinal adjustment and can be locked at the required length with the tie bars supplied. Not only does this system allow for fast, easy maintenance of valves, pumps or meters, it simplifies future pipe work modifications and reduces downtime when changes need to be made. The installation is also straightforward using just a spanner and torque wrench to tighten the high tensile steel or stainless steel tie bars. With fewer tie bars than flange holes and the tie bars acting as flange jointing bolts the process is speeded up but still offers a secure, rigid, fully end load resistant system with a pressure rating equal to that of the flange.
