Aztec Signal products

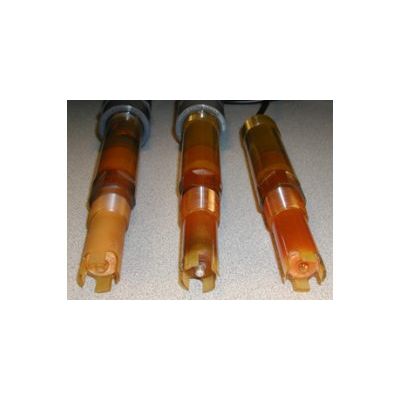

ASTI offers unique solutions for process measurement problems: Best reference lifetime in process industry through nonporous cross linked conductive polymer. Most Complete Line of Industrial Grade Ion Selective Sensors. Many applications can be ordered with calibrating solutions for difficult applications. Each standard sensor selection and/or special sensor design are based upon customer application information. Metal Etching Grade Fluoride Ion Selective Sensor. Interactive pH dependent ion measurement can be performed as total concentration or activity measurement. Unique large surface area PVC membrane technology enables service even in the most difficult process solutions. Complete line of Solid State Membrane Ion Selective membranes.

ASTI offers unique solutions for process measurement problems: Best reference lifetime in process industry through nonporous cross linked conductive polymer. Rugged industrial grade sensors can operate in a temperature range from -30 to 150 degrees Centigrade. Application Specific pH glasses service processes such as such as acid/fluoride, saturated sodium, ultrapure water, cyanide, sulfide, high / ultra high temperature, slurry/viscous materials, paper and pulp. Each standard sensor selection and/or special sensor design are based upon customer application information. Wide range of plastic housing configuration from inexpensive CPVC/PVC, General Purpose RYTON, to the extremely chemically & thermally resistant UltemTM (PEI) and PEEK.

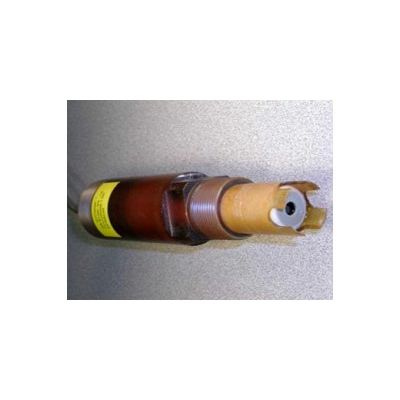

ASTI offers unique solutions for process measurement problems: Best reference lifetime in process industry through nonporous cross linked conductive polymer. Rugged industrial grade sensors can operate in a temperature range from -30 to 150 degrees centigrade. Convenient Quick-Disconnect feature allows easy calibrations and cleaning. Applications Specific pH glasses service processes such as acid/fluoride, saturated sodium, ultrapure water, cyanide, sulfide, high / ultra high temperature, slurry/viscous materials, paper/pulp. Each standard sensor selection and/or special sensor design are based upon customer application information. Wide range of plastic housing configuration from general purpose RYTON (PPS), rugged UltemTM (PEI) to the etremely chemically & thermally resistant PEEK.

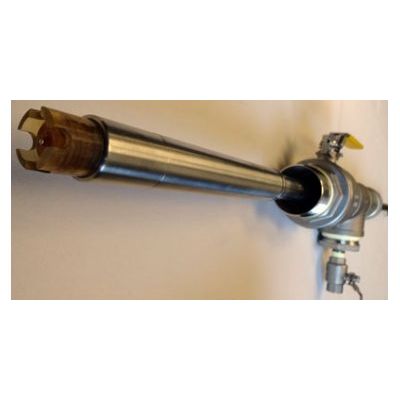

ASTI offers unique solutions for process measurement problems: Best reference lifetime in process industry through nonporous cross linked conductive polymer double or triple junction system. Rugged industrial grade sensors can operate in a temperature range from -30 to 150 degrees Celsius at pressures up to 150 psig (100 psig max for HOT-TAP insertion). Convenient HOT-TAP 316SS sesnor holder allows for cleaning and calibrations without removing fitting. Double sealing O-rings ensure watertight seal during operation; Standard material of construction is Viton-75, with CV75, Simriz 485 and Kalrez 4079 Optional. Back of sensor insertion tube available sealed with watertight cable gland assembly to ensure watertight operation and protection from washdowns, moisture and outside installations.

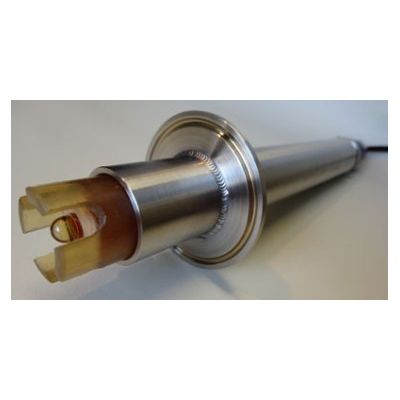

ASTI offers unique solutions for process measurement problems: Best reference lifetime in process industry through nonporous cross linked conductive polymer double or triple junction system. Rugged industrial grade sensors can operate in a temperature range from -30 to 150 degrees Celsius at pressures up to 150 psig. Convenient Quick-Disconnect Tri-Clover fittings allows easy calibrations and cleaning in any process. 316SS Sanitary Sensor Fitting available in 1.5`, 2.0` or 2.5` Tri-Clover sizes (and other larger sizes upon request). Double sealing O-rings ensure watertight seal during operation; Standard material of construction is Viton-75, with CV75, Simriz 485 and Kalrez 4079 Optional. Back of sensor is sealed with watertight cable gland assembly to ensure watertight operation from washdowns, moisture and outside installations. Each standard sensor selection and/or special sensor design are based upon customer application information.
