B. Maier Zerkleinerunsgtechnik GmbH - Dieffenbacher Group products

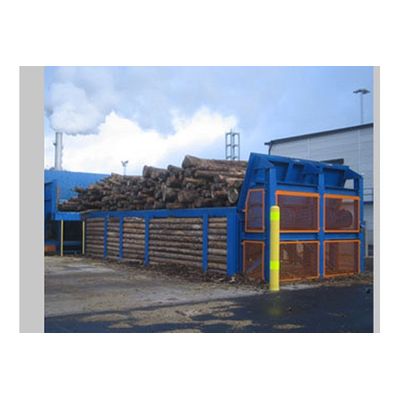

The SCC Storage Cross Chain Conveyor enables storing and conveying of round wood and slabs, loaded by crane. The conveyor is executed with a closed bottom plate, integrated side wall and driven chains. Different singularizers can be mounted downstream from the SCC: LS Log Singularizer separates logs by inclined installation and increased conveying speed. SBS Slab Bundle Singularizer is executed as a movable table beneath the SCC. The bundles can easily be opened in extended table position. The loose slabs are fed to the line by retracting the table.

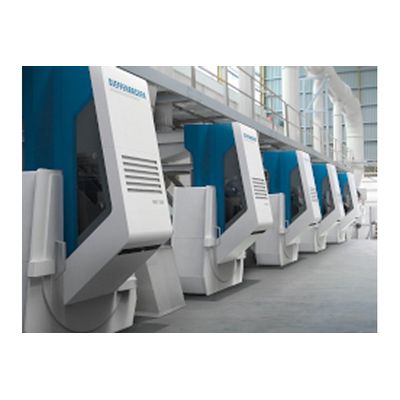

The MRZ Knife Ring Flaker is a high-performance machine for the production of high-quality flakes. The MRZ HS High Speed enables the production of fine-cut flakes from micro-chips and lightweight materials on the dry or wet side. After passing the VC Vibration Conveyor, the permanent magnet drum and the HPS Heavy Particle Separator, the chips are distributed in three dimensions (3D) across all areas of the flaking chamber by the unique FlowOptimizer. Finally, the fast-rotating rotor guides the chips to the knives of the static knife ring where the chips are cut into flat, uniform high-quality flakes.

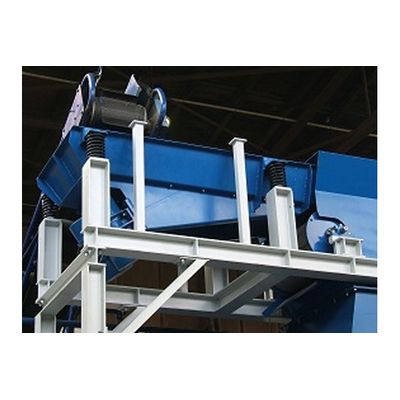

The VC Vibration Conveyor enables the continuous feeding of various bulky materials. According to the required applications, such as single machine feeding (e.g. MRZ, MSF, MSZ, MPM, MPF et al.), combined feeding with screening, or stand-alone screening device, different executions and sizes are available.
