B&W Tek products

Compact, temperature-compensated linear CCD spectrometer with SMA 905 fiber coupler for light input. The Quest line features or smallest, lightest and lowest priced USB spectrometers. Ready for any measurement in the UV and Visible range, the Quest spectrometers are your starting point for applications like laser metrology, absorption and fluorescence.

The Glacier adds the advantage of detector cooling. These spectrometer engines are temperature stabilized using a Thermoelectric Cooler. Choose Glacier over Quest for the benefit of improved light collection, stable noise, and higher dynamic range for longer integration times. TE-Cooled, 2048 element linear CCD spectrometer with SMA 905 fiber coupler for light input.

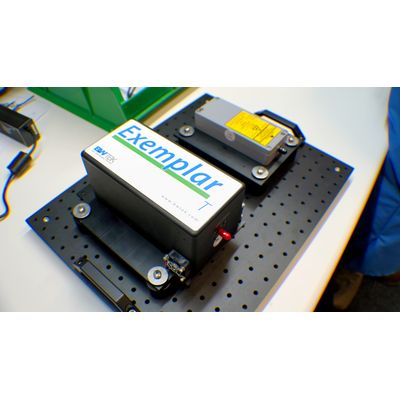

The Exemplar series represents our highest performance UV-NIR series spectrometers with back thinned CCD technology and deeper TE Cooling to reduce dark noise. These models are cooled from 0°C to -25°C, and come in various sizes, and optical geometries. Low stray light and high QE (quantum efficiency) make them a Pro for performance and price. The Exemplar Plus is a high performance smart spectrometer utilizing a low stray light unfolded Czerny-Turner spectrograph.

The Sol is our shortwave infrared (SWIR) spectrometer series for absorption, transmission, reflectance and Raman applications. Contrary to the silicon-based CCD integrated in our other UV-NIR models, the Sol™ series utilizes an InGaAs based linear array for detection. With three different configurations in the NIR, they are perfect for your for your next measurement quest. TE-cooled, 512 element, linear InGaAs array spectrometer with the spectral response enhanced at the longer wavelengths.

This is our spectrometers optimized for Raman Spectroscopy. These Raman engines are the backbone to our Laboratory Raman products. Choose from multiple tiers of performance and configurations covering 532nm, 785nm or 1064nm laser excitation. Upgrade your current setup or build something new with these engines supporting you. Designed and manufactured specifically for Raman Spectroscopy.

Get started quickly with Discover-It-Yourself UV-Visible. Build your own spectroscopy system from the ground up, or pick from one of our crafted application focused kits. Multiple options make it easy to start. Each tier is built with your application in mind with proper sampling and light source recommendations.

Introducing a one of a kind opportunity to build and fully customize your own spectrometer system. Take advantage of our high quality manufacturing capabilities, and setup a spectrometer system using our unique flexible OEM setup that will satisfy all your unique ideas. Our OEM modular setup is designed to keep up with all your application and performance demands as you Discover It Yourself. Stay near the visible green to take advantage of the scattering sensitivity where signal and excitation wavelength are related as 1/λ4, and less laser power may be required to minimize heating on solid surfaces. Move further into the near infrared to eliminate competing background fluorescence.?Contact our Application Specialists to help choose the best system for you.

SAVANNAH is Metrohm’s most compact OEM Raman module. The SAVANNAH is equipped with an integrated 785nm laser and a high-performance spectrograph. SAVANNAH comes with a command set for data acquisition and data transfer through USB or UART communication channels. The robust architecture and small footprint makes SAVANNAH perfect for integration into handheld, mobility and point-of-care instrumentation.

You don’t need an expensive Raman microscope to get the highest quality Raman data. Join our growing list of researchers who are employing the i-Raman series of instruments. See these powerful instruments in action.

An easy-to-use interface allows everyone to identify hazardous and illicit compounds quickly and accurately. Make better decisions faster with this complete line of handheld products.
