Bac Valves products

Ball Valves DIN 3357

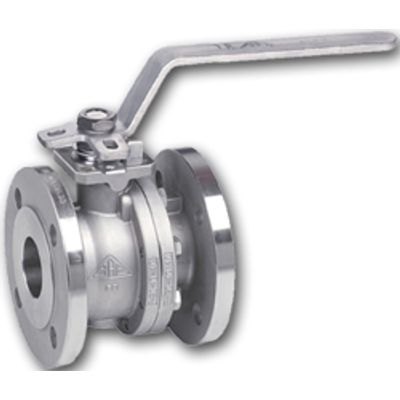

Bac-Valves - Model FB PN 10-16-25-40, DN 15-200 - Full Bore Floating Ball Valve

Full bore, split body, floating ball, relief seats, anti-static device, fire safe, pressure balance hole in ball, blow-out proof stem.

Bac-Valves - Model FB-L PN 16-40, DN 15-100 - Full Bore Floating Ball Valve

Full bore, split body, floating ball, relief seats, anti-static device, fire safe, pressure balance hole in ball, blow-out proof stem.

Bac-Valves - Model FB-T - PN 10-16-25-40, DN 50-400 - Full Bore Supported Ball Valve

Full bore, split body, trunnion mounted ball, relief seats, anti-static device, fire safe, pressure balance hole in ball, blow-out proof stem.

Bac-Valves - Model FB- PN 16-40, DN 150-100 - Low Metal Temperature Full Bore Floating Abrasion Ball Valve

Full bore, split body, floating ball, high performance low emission double stuffing box, relief seats metal-metal, anti-static device, fire safe, pressure balance hole in ball, blow-out proof stem.

Bac-Valves - Model FB - PN 10-16-25-40, DN 15-200 - Full Bore Temperature Ball Valve

Full bore, split body, floating ball, relief seats, extended bonnet (vapor space), anti-static device, fire safe, pressure balance hole in ball, blow-out proof stem.

Butterfly Valves DIN

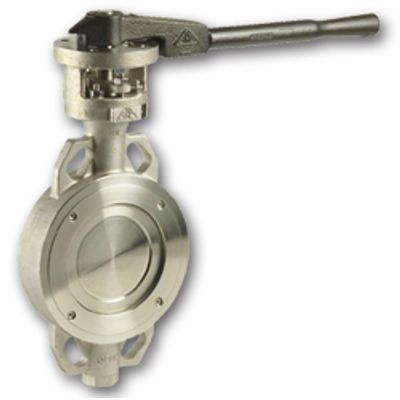

Bac-Valves - Model WR PN 10-16-25-40 DN 80-600 - Wafer Butterfly Valve

Butterfly, double eccentric , PN 10-16-25-40. Wafer body, double eccentric disc, adjustable stuffing box, anti-static device, fire safe, blow-out proof stem.

Bac-Valves - Model LD- PN 10-16-25-40 DN 80-600 - Lugged Double Eccentric Butterfly Valves

Butterfly, double eccentric , PN 10-16-25-40. Lugged body, double eccentric disc, adjustable stuffing box, anti-static device, fire safe, blow-out proof stem.

Ball Valves ISO 17292

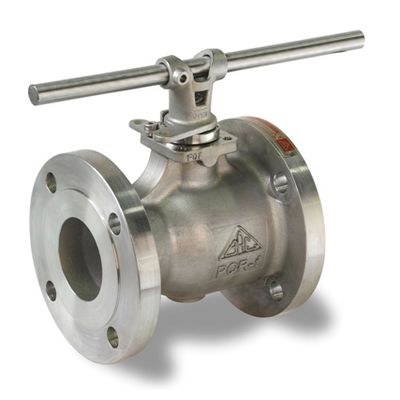

Bac-Valves - Model PQR-i CLASS 150-300, NPS 1/2 - Floating Ball Valve

Floating ball, reduced bore, CLASS 150-300 PQR-itype. Reduced bore, one piece body, floating ball, relief seats, anti-static device, fire safe, pressure balance hole in ball, blow-out proof stem.

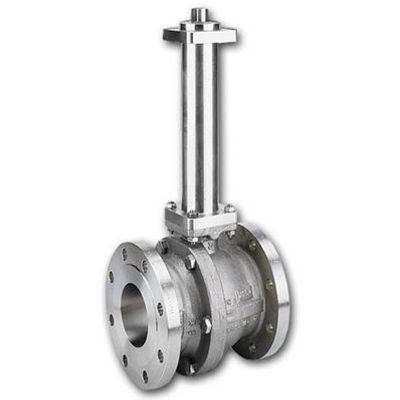

Bac-Valves - Model PQR-i CLASS 150-300, NPS 1/2 - Low Temperature Floating Ball Valve

Reduced bore, one piece body, floating ball, high low emission double stuffing box, relief seats, extended bonnet (vapor space) , anti-static device, fire safe, pressure balance hole in ball, blow-out proof stem.

Butterfly Valves API 609

Bac-Valves - Model WR - CLASS 150-300 - Wafer Butterfly Valves

Butterfly, double eccentric, CLASS 150-300WRType. Wafer body, double eccentric disc, adjustable stuffing box, The PTFE seat is energized by the Inconel metal seat, anti-static device, fire safe, blow-out proof stem.
