Badger Meter, Inc. products

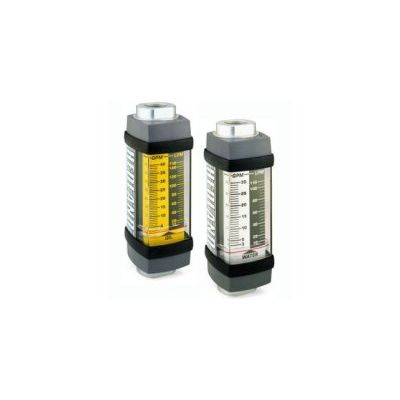

Basic Flow Meter; Flow ranges: 0.1 1.0 GPM (0.5 3.75 LPM) up to 10 100 GPM (50 380 LPM). Construction: T316 stainless steel. Sizes: 1/4 to 1-1/2 inch ports. Ports: NPTF and BSPP. Pressure up to 6,000 psi (414 bar) maximum. Temperature up to 240 °F (116 °C). Accuracy ±2% full scale. Repeatability ± 1%.

Automatically signals alarm if flow is too high or too low. Automatically opens or closes electrical circuits. Triggers warning lights, buzzers and other devices. Shuts down pumps and/or other equipment to protect your operation against permanent damage. Install in any position. Easier to read linear scale. No flow straighteners or special piping required. Relatively insensitive to shock and vibration. Good viscosity stability. Temperature up to 240 °F (116 °C). Pressure up to 6,000 psi (414 bar) maximum. Accuracy ±2% full scale. Repeatability ±1%.

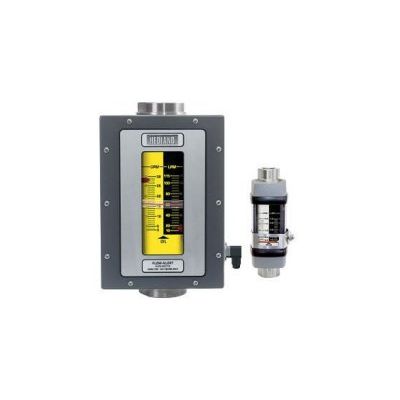

Flow-Alert Reed Switch: No mechanical linkage. Provides output to signal alarm if flow is too high or too low. Flow ranges: 0.2 - 2.0 GPM (1.0 - 7.5 LPM) up to 10 - 100 GPM (50 - 380 LPM). Construction: T316 stainless steel. Sizes: 1/4 to 1-1/2 inch ports. Ports: SAE, NPTF and BSPP. Pressure up to 6,000 psi (414 bar) maximum. Temperature up to 240 °F (116 °C). Accuracy ±2% full scale. Repeatability ±1%.

Operate as part of a totally integrated electronic process control/data acquisition system. Digital flow rate and total flow indication. Proportional analog outputs for electronic integration. Non-contact sensor electronics. In-field compensation for — Specific gravity and viscosity for petroleum-based fluids. Specific gravity for water-based fluids. Flow ranges: 0.2 - 2.0 GPM (1.0 - 7.5 LPM) up to 10 - 100 GPM (50 - 380 LPM). Construction: T316 stainless steel. Sizes: 1/4 to 1-1/2 inch ports. Ports: SAE, NPTF and BSPP. Pressure up to 6,000 psi (414 bar) maximum. Temperature up to 240 °F (116 °C). Accuracy ±2% full scale. Repeatability ±1%.
