Bailey Valves Online products
Safety Relief Valves

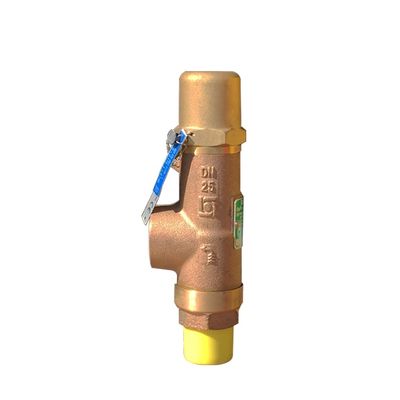

Bailey - Metal Disc with Dome Top Safety Relief Valve
Sizes: 1/2" to 2". Connections: BSP Male Inlet x BSP Female Outlet. Materials: Bronze body, Chrome Alloy spring. Disc: Stainless Steel. Joints & Seals: Medium: Air, Vapours, Gases, Liquids and Steam. Set Pressure: 0.35 to 24 Barg. Temperature: -20 to +224 degC.

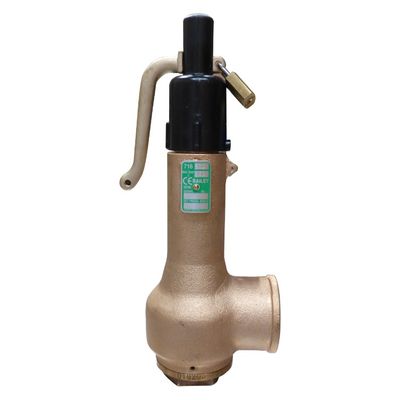

Bailey - Metal Disc with Lever Safety Relief Valve
Sizes: 1/2" to 2". Connections: BSP Male Inlet x BSP Female Outlet. Materials: Bronze body, Chrome Alloy spring. Disc: Stainless Steel. Joints & Seals: Medium: Air, Vapours, Gases, Liquids and Steam. Set Pressure: 0.35 to 24 Barg. Temperature: -20 to +224 degC.

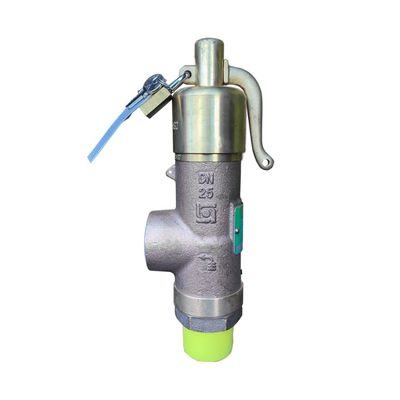

Bailey - Disc with Lifting Lever Safety Relief Valve
Sizes: 1/2" x 3/4" to 2" x 3". Connections: BSP Female Inlet x BSP Female Outlet. Materials: Bronze body, Chrome Vanadium spring. Disc: EPDM. Joints & Seals:. Medium: Gases & Liquids i.e. Air, hot water. Set Pressure: 0.35 to 32 Barg (depending upon the size). Temperature: -29 to +150 degC Max.

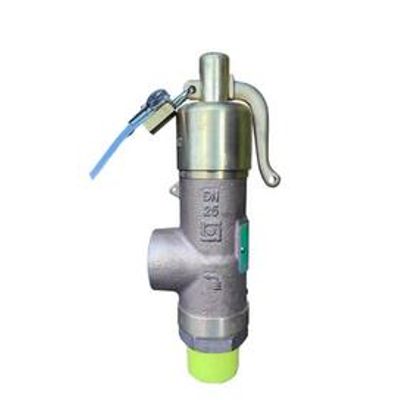

Bailey Aflas - Disk with Lever Safety Relief Valve
Sizes: 1/2" to 2". Connections: BSP Male Inlet x BSP Female Outlet. Materials: Bronze body, Chrome Alloy spring. Disc: Aflas. Joints & Seals:Medium: Air, Vapours, Gases, Liquids and Steam. Set Pressure: 0.35 to 24 Barg. Temperature: -20 to +200 degC.
Bailey - Aflas Disk with Dome Top Safety Relief Valve
Sizes: 1/2" x 3/4" to 2" x 3". Connections: BSP Female Inlet x BSP Female Outlet. Materials: Bronze body, Chrome Vanadium spring. Disc: Aflas. Joints & Seals:. Medium: Gases & Liquids i.e. Air, hot water, Steam. Set Pressure: 0.35 to 32 Barg (depending upon the size). Temperature: -29 to +200 degC Max.
Pressure Reducing Valves

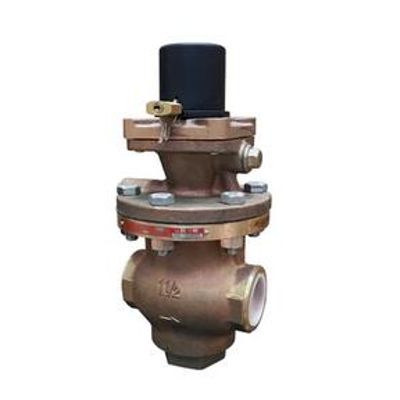

Bailey Birkett - Pressure Reducing Valve
Models: 2043. Sizes: DN15 to DN50 (1/2" to 2"). Connections: Flanged. Materials: Bronze body & Pilot top, Stainless steel trim. Medium: Steam. Inlet Pressure: 25 Barg Max to 225 degC / 17 Barg Max to 260 degC. Outlet Pressure Range: 21 Barg Max to 225 degC / 16 Barg Max to 260 degC. Temperature: -20 to 260 degC. Approvals:. Notes: Our stock is only suitable for steam.
Bailey Birkett - Pressure Reducing Valve
Model: 2042. Sizes: DN15 to DN50 (1/2" to 2"). Connections: Screwed BSPP Female. Materials: Bronze body & Pilot top, Stainless steel trim. Medium: Steam. Inlet Pressure: 25 Barg Max to 225 degC / 17 Barg Max to 260 degC. Outlet Pressure Range: 21 Barg Max to 225 degC / 16 Barg Max to 260 degC. Temperature: -20 to 260 degC. Approvals:. Notes: Our stock is only suitable for steam.
Bailey Birkett - Pressure Reducing Valve Repair Kit
Contains a diaphragm, piston rings, a pilot valve assembly, the main valve and seat, a main valve spring and a set of joints.
Bailey Birkett - Pressure Reducing Valve Service Kit
Containins a diaphragm, a set of piston rings, a pilot valve cap and a set of joints.
Bailey - Pressure Reducing Valve
Sizes: DN15 to DN50 (1/2" to 2"). Connections: Screwed BSPP Female. Materials: Bronze body, Rubber disc. Medium: Air, Gas, Water. Inlet Pressure: 17.2 Barg Max. Outlet Pressure Range: 8.2 Barg Max (Over several spring ranges). Temperature: Air / Water -20 to 100 degC / Oil -20 to 90 degC.
