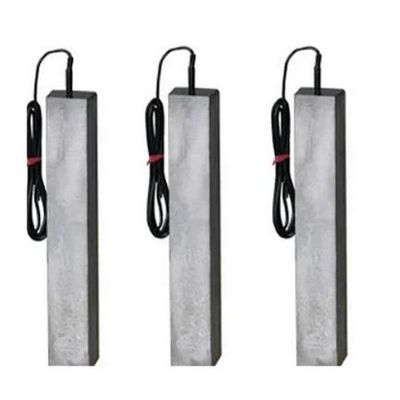

The magnesium anode Is a galvanic or sacrificial corrosion protection device connected to the metal structure to prevent or slow rusting. It has nigh chemical activity, its electrode potential is rather negative, and the driving voltage is quite high. Magnesium anodes form an easier and more attractive source of oxidation than the metal structures they are attached to. In this way they are eaten by corrosion Instead of the structure- hence the name sacrificial anode.

MMO probe anode features: Easy to install, it can be installed through the wall directly from the outside. The current density Is very low. the power saving performance issuperlor. and it has very stable performance. Improve the coating formula and production process, the coating and the substrateare firmly combined, and the service life Is longer. The gas precipitation potential Is high. Underthecathodlc protection potential (the protection potential Is -850mV. generally -1.2V isdesirable.VS.CSE. compared to theCu/satura ted CuS04reterenceelectrode). there is basically no gas precipitation, eliminating potential safety hazards.

Zinc Anode is a casted or extruded anode, melted, casted and extruded by high pure Zinc or Zn-AI-Cd alloy. With high capacity, current efficiency and high machine performance. Zinc anodes are widely used in cathodic protection of tank bottom, pipeline, and water pipe in soil environment.

Depending on the design specifications, environmental factors, and water salinity, sacrificial bracelet anodes are commonly made of either a zinc alloy or an aluminum alloy. Aluminium sacrifice bracelet anodes are economical and dependable for cathodic protection of submerged pipelines. The anti-corrosion coating on these pipelines typically includes a hefty concrete mix for negative buoyancy. The cathodic protection system design specifies where bracelet anodes should be put. These anodes are electrically connected to the pipeline using special copper bonding cables.The anti-corrosion coating is the pipeline`s primary line of defense against rust. The bracelet anodes are intended to safeguard the pipeline in any areas where gaps, pits, or other coating defects could develop during installation or during the course of the pipeline`s operational life.

MMO probe anode for cathodic protection is an effective solution for protection the internal surfaces , it adopts MMO or platinum coated solid titanium rod can be operated in high voltage without breaking down.. They are composed of titanium rods coated with a layer of mixed metal oxide or platinum coating. This probe anodes can withstand water turbulence without damage, the coating is immune to abrupt current reversals, and may be exposed to high-current overloads for initial structure polarization without causing harm to the anode.They have been found to be resistant to acid attack and deliver superior protection in fresh, brackish, or saltwater. They are available in a wide variety of sizes and configurations
Advantage:

Aluminum alloy cathodic protection anodes are an effective corrosion prevention method in various industries, including marine, oil and gas, infrastructure. These anodes work by providing a sacrificial layer of material that corrodes instead of the metal structure it is protecting.

High Silicon Cast Iron Anodes is a form of impressed current anode.lt is one of the most effective anode materials in various environments cathodic protection.This anodes can operate effectively in a variety of electrolytes, from soil and freshwater to brackish and salt water environments.

Chemical Composition: Substrate CatatvstASTMB265 Titanium Gil. Catalyst vMb&d Metal Oxide 1x02 ani Ta205

The pre-packaged form of sacrificial anodes usually consists of a stainless steel canister that contains an inner core of magnesium alloy anode. The top of the canister is usually fitted with an insulated cable or a steel connection that leads to the metal to be protected. The anode is simply wired into the circuit and it will begin to corrode away, sacrificing itself to protect the metal structure.
