Barker Products products

3 Models Available, Meets ANSI Z245 Type B Specifications, Powered By a 3” Bore Hydraulic Cylinder With Cushions On, Both Ends, EZ Bolt On Kit Standard, Heavy Duty Cast Iron Bushings For Long Life Cycle, Kick out Feature Protects Lifter From Ground Damage, Modular Bolted Construction For Ease Of Part Replacement.

Meets ANSI Z245 Type B Specifications, Powered By a 3” Bore Hydraulic CylinderWith Cushions On, Both Ends, EZ Bolt On Kit Standard, Heavy Duty Cast Iron Bushings For Long Life Cycle, Kick out Feature Protects Lifter From Ground Damage, Modular Bolted Construction For Ease Of Part Replacement, Non Adjustable Lower Hook Linkage.

Meets ANSI Z245 Type B Specifications, Powered By a 3” Bore Hydraulic Cylinder With Cushions On Both Ends, EZ Bolt On Kit Standard, Hardened Steel Bearings For Long Life Cycle, No Grease Points, Can Not Be Hit By The Packer Blade, Kick out Feature Protects Lifter From Ground Damage, Modular Bolted Construction For Ease Of Part Replacement, Non Adjustable Lower Hook Linkage.

Meets ANSI Z245 Type B Specifications, Powered By a 3” Bore Hydraulic Cylinder With Cushions On Both Ends, EZ Bolt On Kit Standard, Hardened Steel Bearings For Long Life Cycle, No Grease Points, Can Not Be Hit By The Packer Blade, Kick out Feature Protects Lifter From Ground Damage, Modular Bolted Construction For Ease Of Part Replacement, Non Adjustable Lower Hook Linkage.

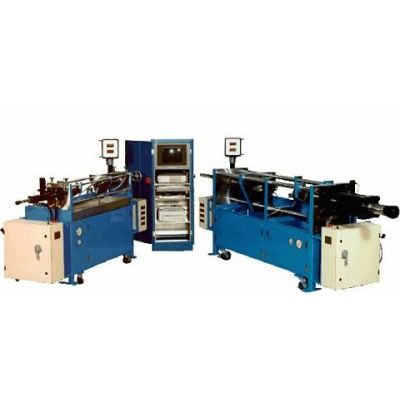

The Barker/Diacon S-2000 Series Snubber Test Bench is designed to provide utility and service companies with a rigged, easy to maintain, and easy to operate piece of test gear to support snubber ISI activities. The S-2000 Snubber Test Bench is designed to test all common types of snubbers which fall within it`s design load envelope. These types include mechanical acceleration limiting, mechanical velocity limiting, and hydraulic velocity limiting with or without (lock up) characteristics. The S-2000 software includes a database for setup parameters for up to 200 snubber types. This database is easily available for additions and/or modifications by the user.

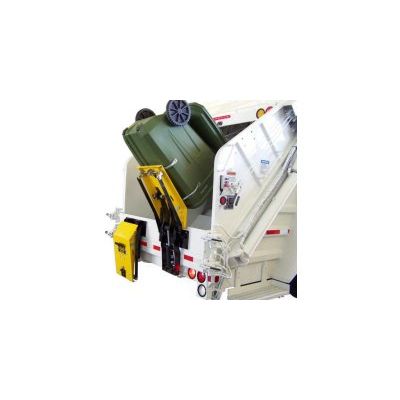

Dependable Smooth Acting 25K Helical Rotary Actuator, Splined Shafts To Eliminate ArmMovement And Wear, 45 Degree Dump Angle, No Grease Points, EZ Bolt On Kit Standard, Meets ANSI Z245 Type B Specs Lifts All Standard American 2 Bar Carts, Liftplate Arc Motion Makes Cart Attachment Fast And Easy On Unlevel Highway Conditions, Double Wide Mounting Plate Available. Increases Hopper Height To Decrease Packing Cycles, 38 to 44 Inch Mounting Height, 18 1/2 to 24 1/2 Inch Ground Clearance, Use on Rear Loaders

Dependable Smooth Acting 15K Helical Rotary Actuator, Splined Shafts To Eliminate ArmMovement And Wear, 45 Degree Dump Angle, No Grease Points, EZ Bolt On Kit Standard, Meets ANSI Z245 Type B Specs Lifts All Standard American 2 Bar Carts, Liftplate Arc Motion Makes Cart Attachment Fast And Easy On Unlevel Highway Conditions, Double Wide Mounting Plate Available. Increases Hopper Height To Decrease Packing Cycles, 37 to 43 Inch Mounting Height, 18 1/2 to 22 1/2 Inch Ground Clearance, Use on Rear Loaders, All Components Manufactured and Assembled In The US
