Bascom-Turner Instruments, Inc. products

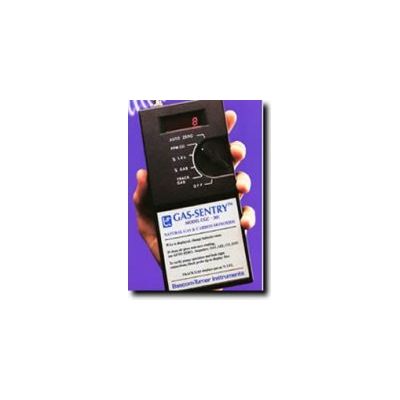

The Gas-Sentry, developed with support from the Gas Research Institute (GRI), is a microprocessor-based, intrinsically safe detector for natural gas and, when equipped with appropriate sensors, for carbon monoxide and oxygen.

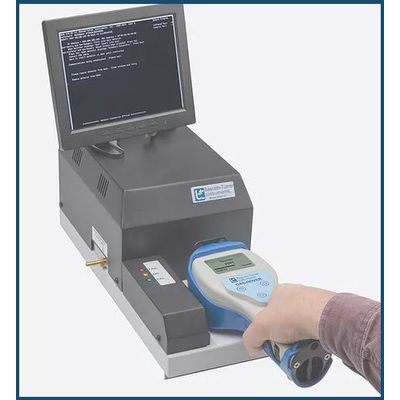

The Mobile Compliance System is the first calibration station to calibrate all sensors with a single tank of gas. On screen prompts walk users through the calibration procedure, and in less than three minutes, users can calibrate their detector and be back on the job. The last 24 calibrations are stored on a Gas-Rover or Gas-Explorer’s internal flash memory, and data can be downloaded and accessed on any PC or mobile device withDataLink4Access.

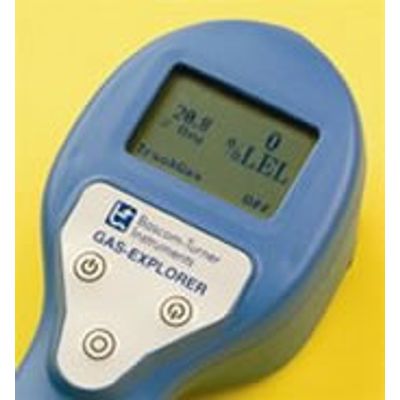

The Gas-Explorer natural gas and combined natural gas, CO, O2 and H2S detectors are intrinsically safe, microprocessor based instruments designed to test ambient air and flue gas over a wide temperature range. Gas Explorers are housed in a high-impact, ergonomic case, yet weigh only 24oz (680g).

Superior Gas Detection: Measurements over full range from 1ppm to 100% gas. Survey mode from 1ppm to 10,000 ppm. Barhole mode yields peak and sustained readings. Optional sensors for CO, O2, H2S. Intrinsically safe design for indoor and outdoor use.

Superior Gas Detection: Full measurement range from 20ppm to 100% gas. Fast calibrated Track Gas from 20ppm to 10,000 ppm. Barhole mode yields peak and sustained readings. Optional sensors for CO, O2, H2S. Intrinsically safe design for indoor and outdoor use.

Full Range of Gas Detection: Measurements from 50ppm to 100% gas. Calibrated Track Gas scale with quick response in 50ppm increments. Barhole yields peak and sustained readings. Optional sensors for CO, O2, H2S. Visual and audible alarms for all monitored gases. Intrinsically safe for indoor and outdoor use.

NCAL Docking Stations: Enables calibration in three simple steps in less than 2 minutes. Automatically downloads calibration and field data. Clean the methane sensor and update the unit’s software. Calibration tank monitoring with low gas volume notification. Reports can be generated and data polled from any PC.

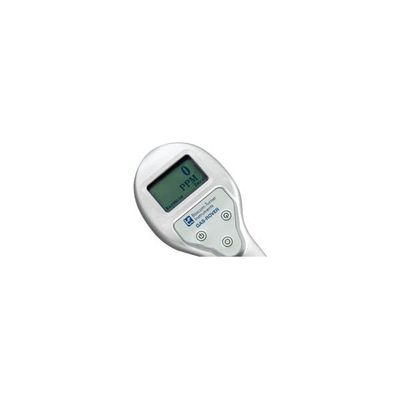

The Gas-Rover provides sensitivity, speed of response, and accuracy needed for leak surveys on foot or by vehicle. The Rover can be used to replace a conventional FID with a significant reduction in cost and a substantial increase in convenience.

The Gas-Rover provides sensitivity, speed of response, and accuracy needed for leak surveys on foot or by vehicle. The Rover can be used to replace a conventional FID with a significant reduction in cost and a substantial increase in convenience.

Each detector has a built-in pump and comes with A-CAL and N-CAL firmware, metal gooseneck probe (GP-514), a pack of water block filters (WF-505), set of batteries, carrying case (IC-501), and operating manual. Detector weighs 1.50 pounds (0.68 Kg.) has a three push-buttons, LCD display of 0 - 100% LEL, 0 - 100% GAS, and 0 - 10,000 ppm GAS. The power is provided by two C size batteries. Monitor, Track Gas, and Bar Hole modes with the latter displaying peak and sustained bar hole gas readings. All readings are automatically digitized and stored in on-board memory. D-LINK software, provided with each unit can be used to download through a USB interface calibration data, readings, and reports. Each unit automatically stores the last 24 calibrations. A TRACK GAS mode in all models displays GAS as ppm. A BAR HOLE mode automatically provides peak and sustained readings. GPS & Bluetooth are available options.
