Bay Plastics Machinery products

The BT 25 Lab Series Pelletizers from Bay Plastics Machinery are compact and versatile machines that offer the capability of production-scale pelletizers, tailored for laboratory settings. Despite their small footprint, these pelletizers can handle a diverse range of materials, including rubber-like strands and glass-reinforced thermoplastic resins. They feature tool-free access to the cutting chamber for easy cleaning and maintenance. The BT 25 can process up to four 1/8” diameter strands of olefins or two 1/8” diameter strands of engineered resins, with standard pelletizing speeds from 20 to 78 feet per minute. For specialized applications, high-speed and low-speed options are available. The device boasts independent drives for feedroll and cutter, allowing for quick adjustments to pellet size.

The Strand Pelletizing System WSD is designed for the production of reinforced and filled polymers. The surface water of the strands is removed by a combination of air blowing and vacuum before being pelletized.

The AK Series Air Knives by Bay Plastics Machinery are designed to enhance the extrusion process efficiency by effectively drying thermoplastic strands before pelletization, ensuring that the produced pellets are free from water content. These air knives are equipped with dual air nozzle dryers, providing rapid and thorough drying. The open-air design facilitates ease of maintenance, while the strand guides have a wear-resistant coating to prevent damage from continuous use. Constructed from rustproof materials, these devices are resistant to water corrosion. Both the strand guide and nozzle angle are adjustable, allowing for precise calibration to meet specific production line requirements. Available in multiple sizes, the AK Series Air Knives offer versatile applications and adaptability, making them an essential component in any thermoplastic extrusion system.

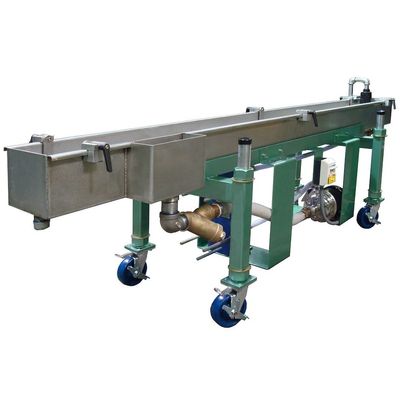

Bay Plastics Machinery`s WBX Series Water Baths are designed to enhance the efficiency of pelletizing processes. These water baths are customized to meet a broad range of extrusion applications, ensuring adaptability and efficiency in various settings. With features such as adjustable legs, the water baths can be easily integrated with different pelletizers and extruders. They also include locking quick-release hold-down bars equipped with UHMWPE grooved rollers that minimize friction and maintain strand alignment. Depending on the length, these baths can support three to five hold-down bars. Complementing these features, optional water recirculation systems offer tailored solutions with components like pumps and heat exchangers, available in sealed plate, plate-and-frame, and shell-and-tube units to maintain optimal water levels and temperature.

Bay Plastics Machinery offers Flash-Off Conveyors that are engineered to enhance efficiency in manufacturing processes through advanced drying technology. These conveyors are designed for versatility, accommodating a broad range of extruders and water slides, and are capable of processing various thermoplastic materials, including delicate and biodegradable compounds. Their self-stranding capability simplifies startup and production, facilitating seamless integration into existing workflows. The conveyors leverage evaporation technology to ensure thorough drying of extruded strands. Available in sizes ranging from 4 to 40 inches in width and 6 to 35 feet in length, they offer flexible options to suit different operational needs while aiming to optimize time and cost savings for users.
